DXY-PA600 Heavy-Duty Industrial Oil Cooler, suitable for 10,000-ton forging presses, metallurgical equipment, and mining machinery

Name: DXY-PA600 Heavy-Duty Industrial Oil Cooler, suitable for 10,000-ton forging presses, metallurgical equipment, and mining machinery
Brand: We are MEISON, the international sales department of Dongxu Hydra
SKU: DXY-PA600
Price: 16300 USD
Availability: InStock

Product Description
Model: DXY-PA600
Cooling Capacity: 185kW (160000 kcal/h)
Power Supply: 3PH/AC380±10%50Hz
Temperature Control Range: 20–50 °C
Weight: 1450 kg
Minimum Order Quantity: 1 set

0.0 (0 Reviews)

0 Sold

$16,300.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Parameter	Value
Model No	DXY-PA600
Cooling Capacity	185kW (160000 kcal/h)
Input Power	3PH/AC380±10%50Hz
Core Components	Compressor, condenser, oil pump, temperature control board
Mechanical Test Report	Available
Video Inspection Before Shipment	Available
Key Selling Point	High safety
Place of Origin	Guangdong, China
Weight (KG)	1450
Brand Name	Dongxu
Temperature Control Range	20–50 °C
Dimensions (LWH)	2200x2250x2300mm
After-sales Service Provided	we will provide a replacement or spare parts for free
Payment	T/T, L/C
Application	Cooling,Constant temperature
Features	Constant temperature, long service life, durable
Usage	Lubricating oil, hydraulic oil
ODM/OEM	Welcome
Warranty	12 Months

Product Introduction
The Dongxu DXY-PA600 is a 60-horsepower, ultra-large, high-power industrial oil cooler in the PA series. As the top-of-the-line model in Dongxu’s hydraulic industrial cooling series, it is specifically designed for heavy-duty hydraulic systems requiring ultra-high flow rates, ultra-high heat loads, and 24-hour continuous operation. Featuring a modular, high-strength structure, the unit is equipped with multiple sets of imported compressors and large-surface-area heat exchange modules. It delivers ample cooling capacity, precise temperature control, and stable operation, capable of meeting the centralized cooling needs of 10,000-ton-class equipment and entire factories. It serves as the core equipment for oil temperature control in heavy-duty industrial applications.

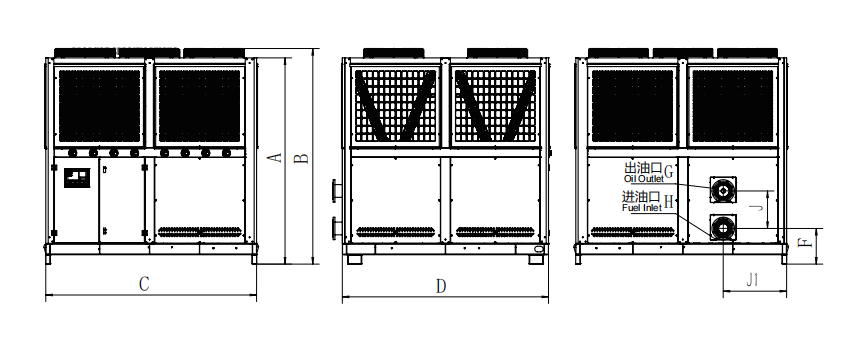

Product size drawing

SERIES	A	B	C	D	F	J	J₁	G	H
DXy-PA600	2200	2300	2250	2200	380	400	676	DN125 Flange	DN125 Flange

Key Features
High-Power Cooling: Capable of effectively handling the massive heat generated by large, heavy-duty equipment during continuous operation, making it the flagship cooling unit in the series.
Dual-Mode Intelligent Temperature Control: Features two control modes: “Constant Temperature” and “Room Temperature Synchronization.”
Imported Core Components: Equipped with imported, brand-name compressors for reliable operation and high efficiency; features an imported oil pump for superior stability and durability.
Multiple Safety Protections: Features multiple protective functions, including real-time temperature monitoring, early warnings, and alarms. Equipped with a dry contact alarm terminal to ensure equipment safety even during unattended operation.
Precision Oil Maintenance: Precise oil temperature control prevents oil degradation caused by high temperatures, maintains stable oil viscosity, and extends service life.

Applications
Heavy-duty forging/extrusion: 10,000-ton-class forging presses, large-scale aluminum/copper extrusion presses, heavy-duty hydraulic presses (3,000 tons and above).
Large-scale Die Casting / Rubber & Plastics: Ultra-large die casting cells, complete rubber/plastic extrusion and vulcanization lines, large-scale injection molding machines.
Heavy-duty Machine Tools / Metallurgy: Ultra-heavy-duty gantry boring and milling machines, steel rolling equipment, large-scale grinding machines, spindle and hydraulic system cooling for deep-hole drilling machines.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
