The DXY-PA40 4-horsepower medium-to-large industrial oil cooler is suitable for lubrication station equipment

Name: The DXY-PA40 4-horsepower medium-to-large industrial oil cooler is suitable for lubrication station equipment
Brand: We are MEISON, the international sales department of Dongxu Hydra
SKU: DXY-PA40
Price: 1465 USD
Availability: InStock

Product Description
Model: DXY-PA40
Cooling Capacity: 11.9kW (10000 kcal/h)
Power Supply: 3PH/AC380±10%50Hz
Temperature Control Range: 20–50 °C
Weight: 148 kg
Minimum Order Quantity: 1 set

0.0 (0 Reviews)

0 Sold

$1,465.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Parameter	Value
Model No	DXY-PA40
Cooling Capacity	11.9kW (10000 kcal/h)
Input Power	3PH/AC380±10%50Hz
Core Components	Compressor, condenser, oil pump, temperature control board
Mechanical Test Report	Available
Video Inspection Before Shipment	Available
Key Selling Point	High safety
Place of Origin	Guangdong, China
Weight (KG)	148
Brand Name	Dongxu
Temperature Control Range	20–50 °C
Dimensions (LWH)	700x625x1245mm
Oil Tank Capacity	40
After-sales Service Provided	we will provide a replacement or spare parts for free
Payment	T/T, L/C
Application	Cooling,Constant temperature
Features	Constant temperature, long service life, durable
Usage	Lubricating oil, hydraulic oil
ODM/OEM	Welcome
Warranty	12 Months

Product Introduction
The Dongxu DXY-PA40 is a high-power industrial oil-cooled chiller in the PA series, featuring a 4HP compressor from a renowned brand. The entire series is equipped with imported digital controllers, offering temperature control accuracy of ±0.1°C. It operates reliably, efficiently, and quietly. The unit supports two operating modes—constant temperature and room temperature synchronization—allowing users to choose freely.

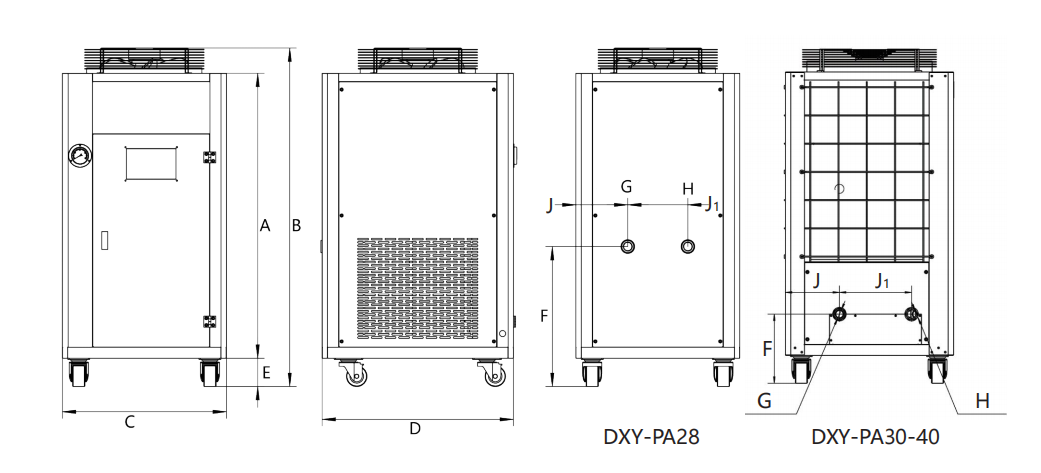

Product size drawing

SERIES	A	B	C	D	E	F	J	J1	G	H
DXy-PA28	996	1085	600	700	104	502	191	220	Rc1" Oil outlet	Rc1" Fuel inlet
DXy-PA30	1041	1235	600	700	104	512	191	220	Rc1" Oil outlet	Rc1" Fuel inlet
DXy-PA40	1158	1245	625	700	104	257	201	268	Rc1" Oil outlet	Rc1" Fuel inlet

Key Features

High Cooling Capacity: Suitable for the heat dissipation needs of medium-sized industrial equipment with high heat generation.

Enhanced Heat Exchange and Durable Construction: Features a large-capacity brazed plate heat exchanger and a high-airflow finned condenser for higher heat exchange efficiency; reinforced sheet metal construction makes it suitable for dusty workshops.
Multiple Protections and Intelligent Alarms: Features real-time temperature monitoring and alerts for excessively high or low oil temperatures. Includes a dry contact alarm terminal that can be connected to industrial equipment for interlocked alarms, preventing mechanical damage.
Precision Oil Maintenance: Prevents fluctuations in oil temperature from affecting machining accuracy, maintains stable oil viscosity, and ensures continuous, stable equipment operation.
Oil Temperature Adjustment Based on Ambient Temperature: Oil temperature control is based on ambient temperature, and users can set the oil temperature to prevent thermal deformation of mechanical structures caused by excessive temperature differences.

Applications

Electrical Discharge Machining (EDM) Equipment
Hydraulic Machinery and Hydraulic Power Unit Systems
Lubrication Station Equipment.
Deep-Hole Drilling Equipment.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
