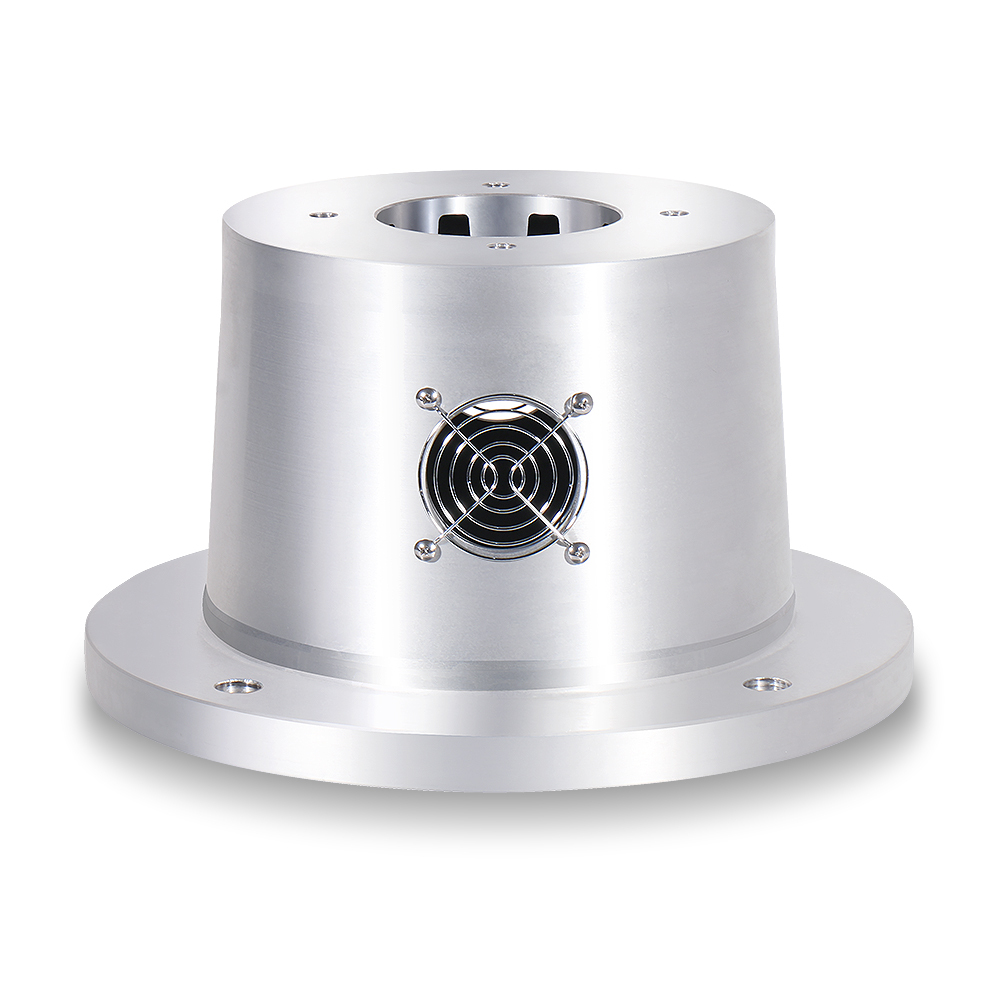

Aluminum alloy coupling flanges (full-circle) are suitable for heavy-duty pump-motor assemblies in stamping equipment

Product Description

Title: Precision Bell Housing (Full Round Type) | MEISON Hydraulic Pump-to-Motor Connection

The MEISON Full Round Bell Housing is a high-precision mechanical interface designed to ensure perfect alignment between hydraulic pumps and electric motors. By eliminating shaft misalignment, our bell housing significantly reduces noise, vibration, and bearing wear in hydraulic power units. Engineered with high-strength materials and an optimized full-round structural design, it provides a stable, rigid connection that meets the demanding requirements of industrial hydraulic systems.

Product characteristics

No vents, high tensile strength, large torque, high density (+T6)

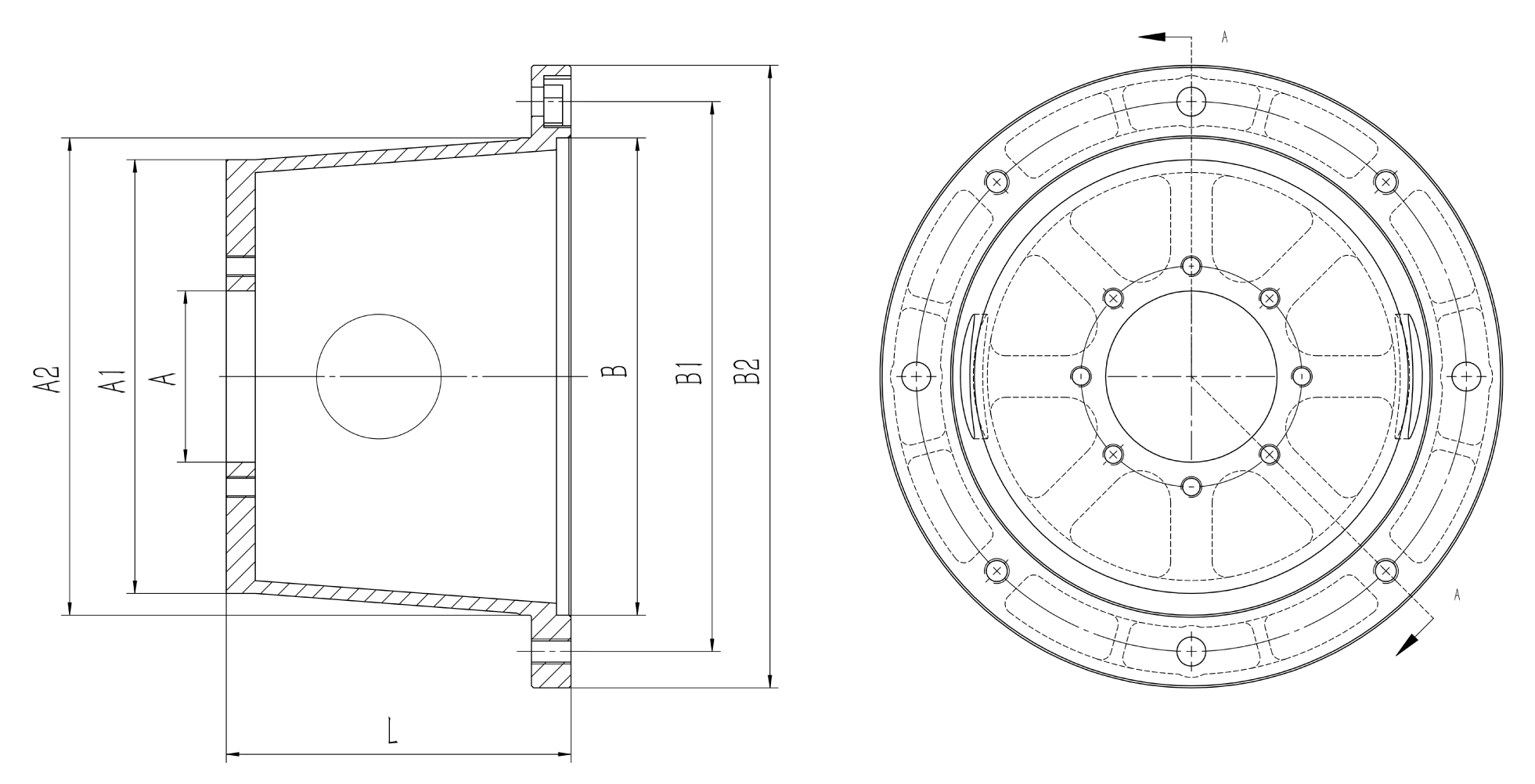

Product size drawing

Type parameter list

                                    Figure 1                                                                   Figure 2

Order description

L indicates: vertical installation motor end with 4 through holes and 4 threaded holes

W indicates: horizontal installation motor end with 4 through holes

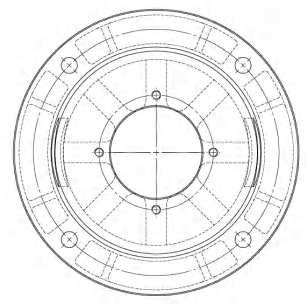

90° indicates: oil pump installation (see diagram 1)

45° indicates: oil pump installation (see diagram 2)

Note: Oil pump models and parameters provided by the customer, supplier drawing confirmation is primary

Key Features & Technical Specifications

• Perfect Alignment: High-precision manufacturing guarantees coaxiality and perpendicularity, minimizing stress on pump and motor shafts.

• Full-Round Structural Design: Enhanced rigidity and vibration damping properties compared to traditional open-frame designs.

• Superior Material Strength: Cast from high-quality aluminum or steel to provide excellent mechanical stability and durability under load.

• Universal Compatibility: Standardized mounting patterns suitable for a wide range of international electric motor frames and hydraulic pump flanges.

• Vibration Reduction: Effectively isolates and dampens mechanical vibrations, leading to smoother operation and reduced acoustic noise levels.

The Full Round Bell Housing is a critical component for:

• Hydraulic Power Units (HPUs): Providing the foundatio

• Industrial Automation: Ensuring precision alignment in assembly lines and robotic hydraulic circuits.

• Heavy Machinery: Supporting robust pump-motor assemblies in injection molding, forging, and stamping equipment.

• Continuous Duty Systems: Ideal for applications where low vibration and high alignment accuracy are required 24/7.



  Hydraulic Power Units and Heavy Equipment Integration

  In hydraulic power unit manufacturing and heavy machinery sectors such as injection molding or forging, this custom bellhousing acts as a critical connector that ensures precise alignment between motors and pumps. Its rigidity and vibration damping reduce wear and noise in demanding operational environments, protecting system components over long duty cycles. Compatible with international mounting patterns, it allows engineering teams to simplify assembly and maintenance workflows. The full circle design supports enhanced torque transmission, making it indispensable where hydraulic power reliability is essential to machine performance.


  Automated Production Lines and Robotic Hydraulic Systems

  This bellhousing for sale is ideal for integration into automated manufacturing and robotic tooling cells where hydraulic precision is paramount. By maintaining tight coaxial alignment, it minimizes deviations that could affect tooling accuracy and machine efficiency. The vibration reduction features improve process stability and reduce quality issues caused by oscillations. Its universal mounting compatibility facilitates retrofit and upgrade projects within automated assembly lines, enhancing workflow continuity. As a reliable coupling interface, it supports advanced hydraulic circuits requiring consistent performance under continuous use.







Packaging & Delivery

• Secure Industrial Packaging: Individually packaged in reinforced materials to prevent surface scratches and structural deformation during international transit.

• Prompt Fulfillment: Factory-direct dispatch with optimized logistics chains for efficient global delivery.

• Ready for Installation: Cleaned and precision-machined, ready for direct integration into your hydraulic power unit build.

Certification & Quality Assurance

• Precision Manufacturing: Produced under strict ISO9001 quality management standards to ensure dimensional consistency.

• Reliability: Built for high-cycle life, providing a foundation for machinery lifespans of up to 10 years.

• Integrity Testing: Every bell housing is inspected for dimensional accuracy and structural soundess to ensure a perfect fit every time.

FAQS

• How do I ensure I choose the right size for my motor and pump?

Selection is based on the motor frame size (e.g., IEC standards) and the pump flange pattern. Please refer to our selection chart or contact our technical team with your motor/pump models for a guaranteed match.

•  Is the full round design better than the open type?

• Are these compatible with European/International standards?

Yes, our bell housings are manufactured to match global standard motor and pump mounting patterns.

The MEISON Advantage

• Factory-Direct Expertise:

   "Factory-Direct Expertise. Professionally Curated." — Providing over 20 years of precision mechanical manufacturing excellence.

• Global Trusted Partner:

  A proven track record with over 1,000,000 units sold to 6,000+ satisfied customers worldwide.

• R&D Innovation:

  60+ technological patents ensure our components remain at the cutting edge of hydraulic alignment and vibration control.

• Cinematic Industrial Design:

  Our designs prioritize technical precision and professional aesthetics, helping you build immediate, long-lasting trust with your B2B customers.
