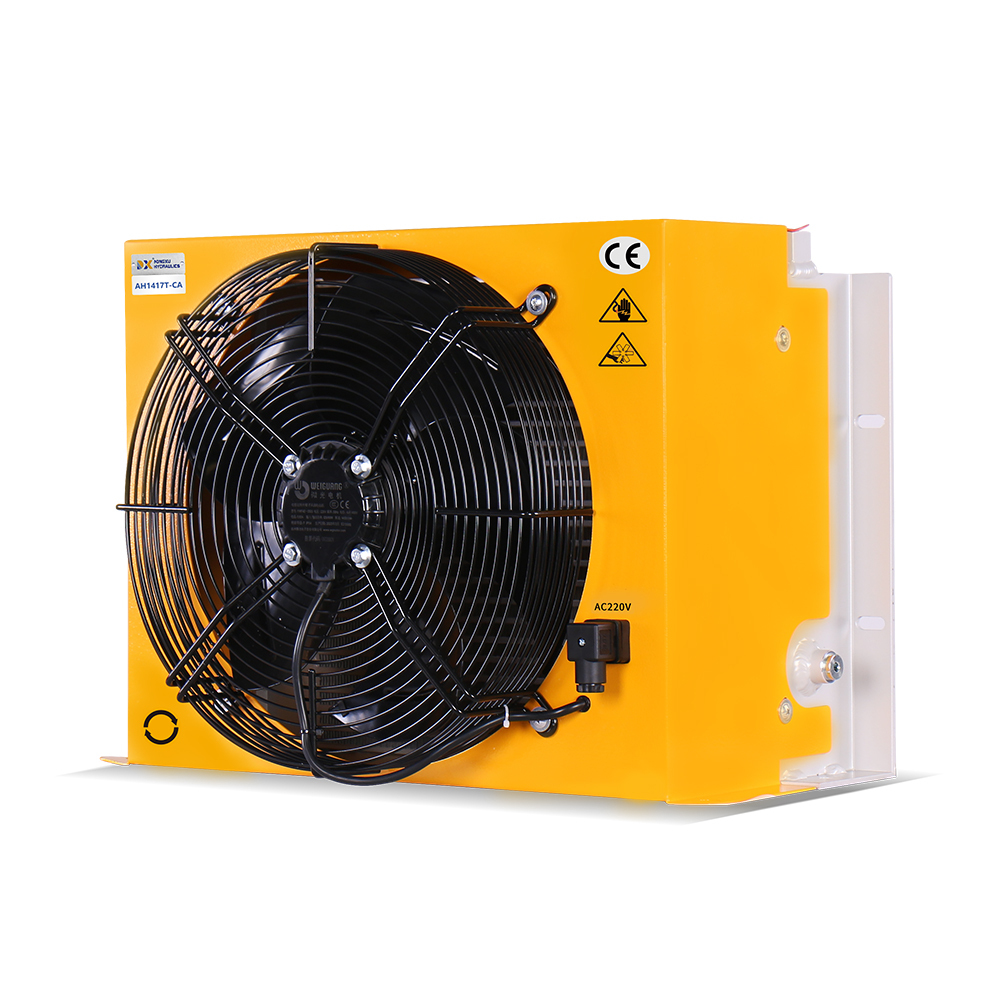

AH1417T-CA High-End Industrial Air-Cooled Oil Cooler: High-flow design, suitable for trucks, machine tools, and hydraulic power units

Product Specification

Product Description

Title: AH1417T-CA High-Performance Air Cooled Oil Cooler for Hydraulic Systems | MEISON Hydraulics

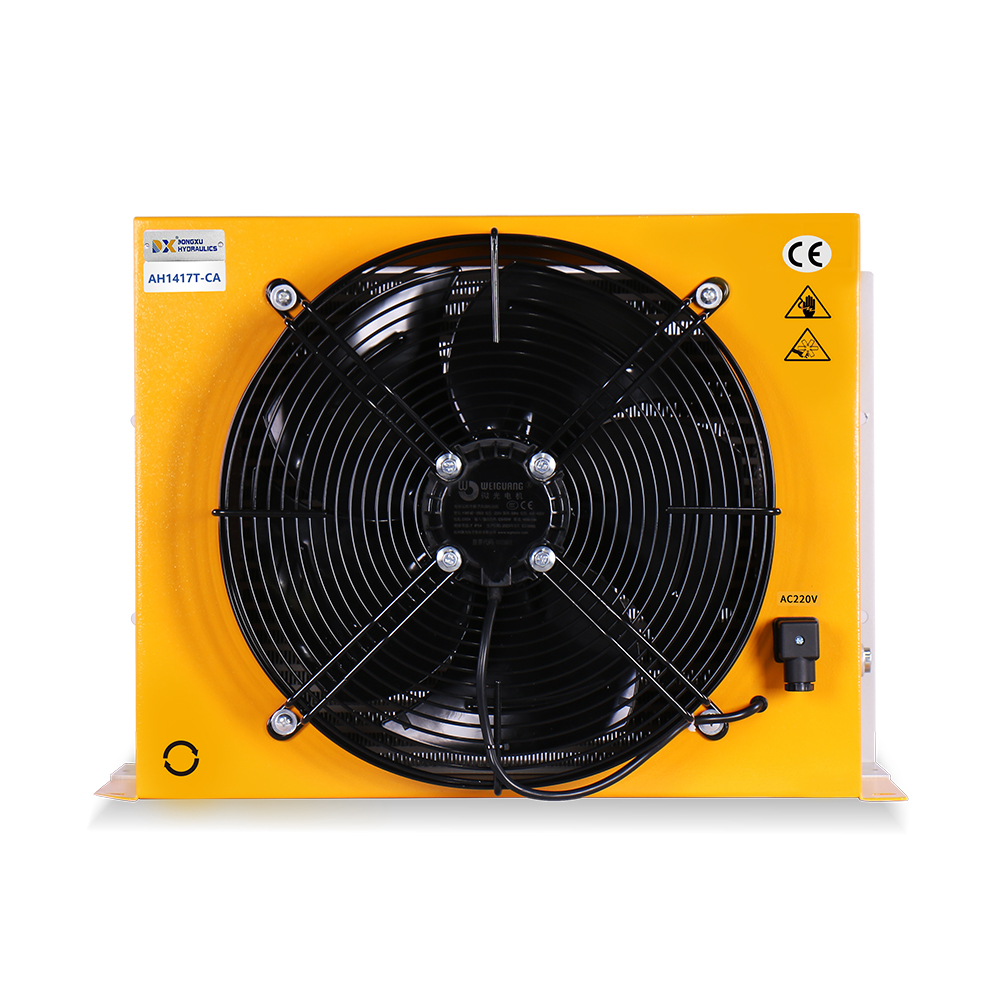

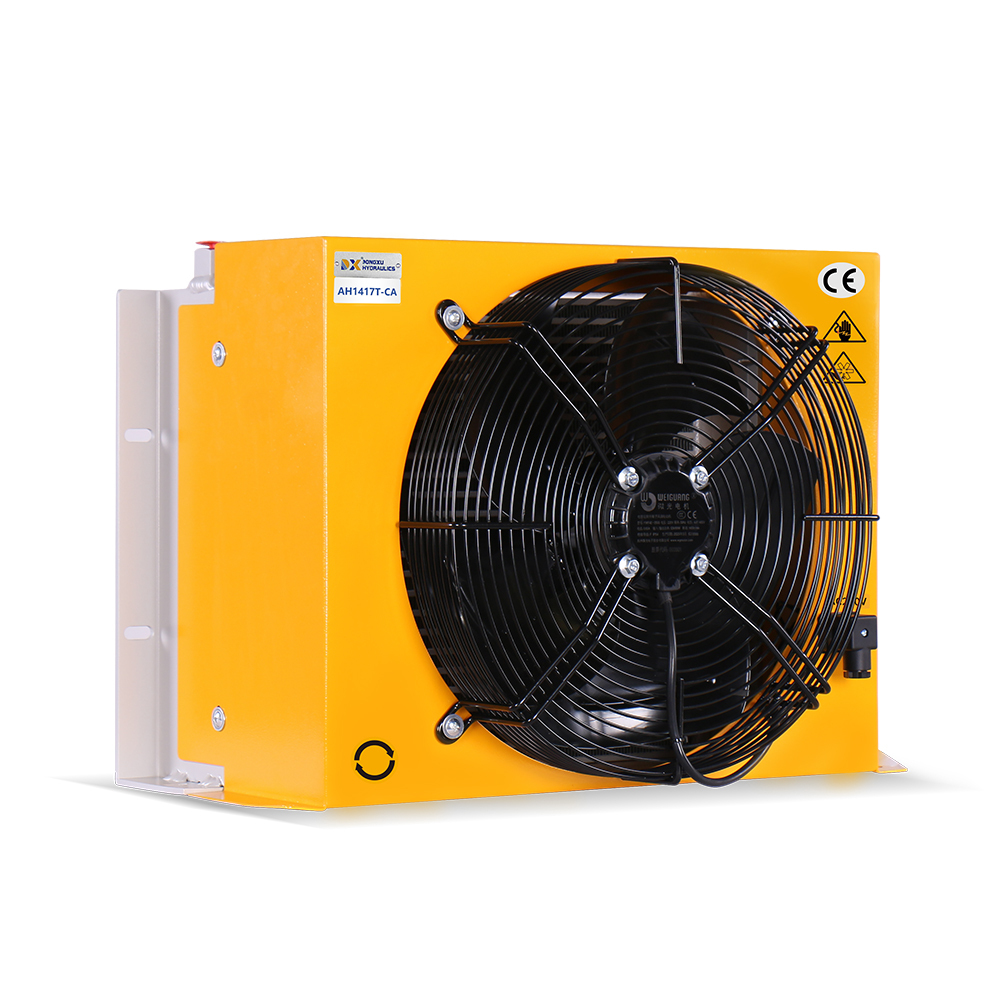

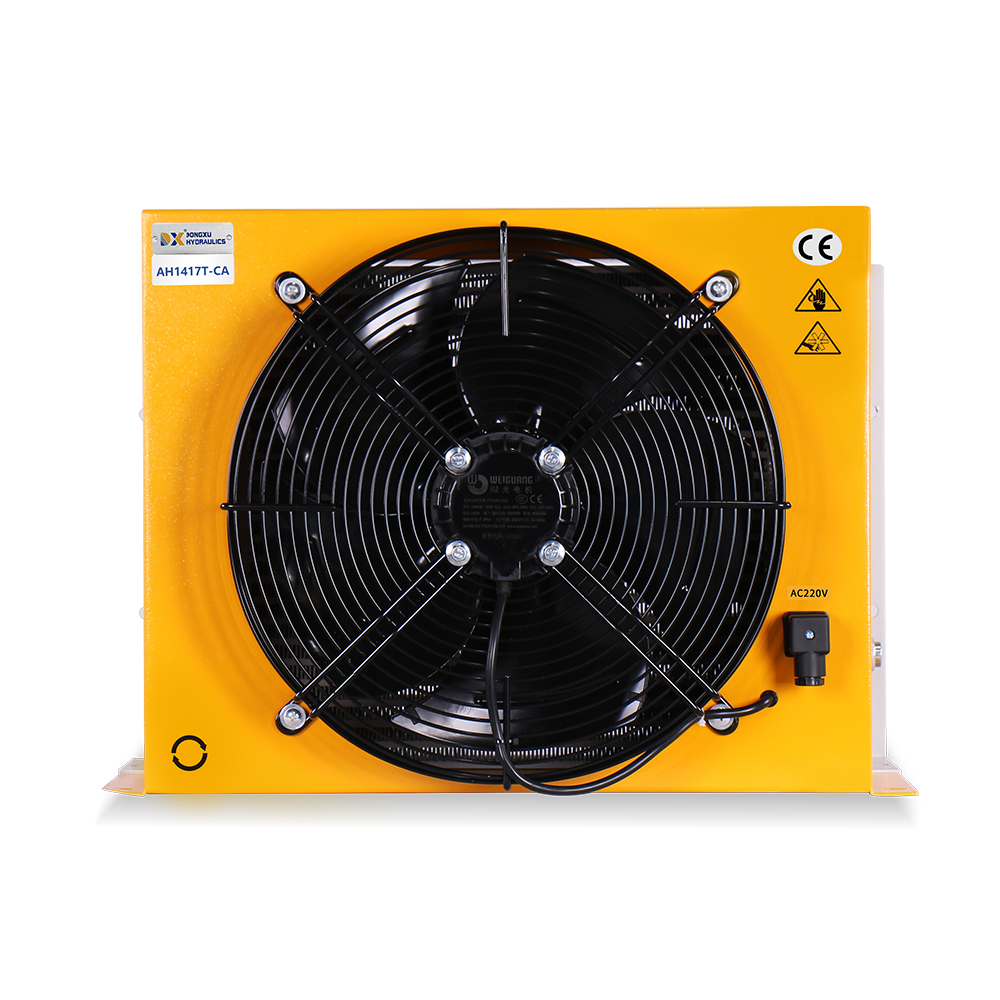

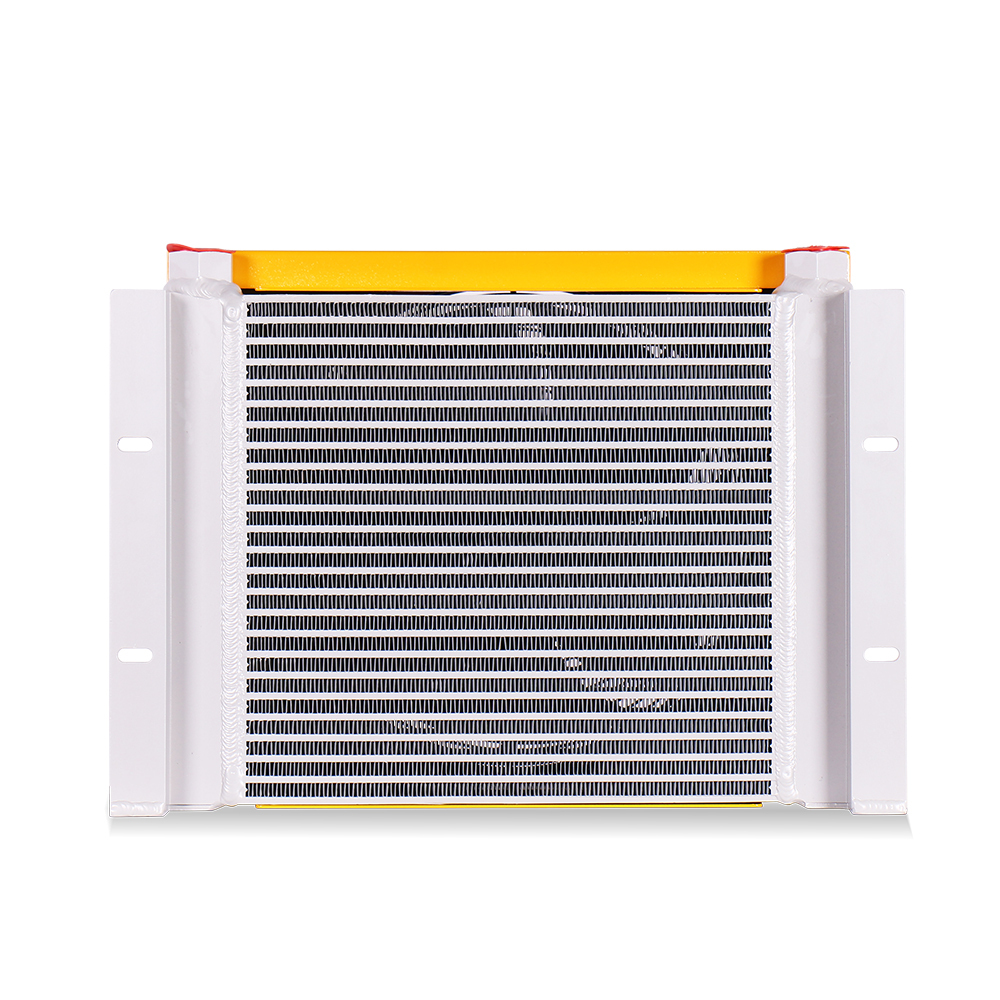

The AH1417T-CA is a premium industrial air-cooled oil cooler designed for high-flow hydraulic and lubrication systems. As part of our signature AH series, this model is engineered to provide stable fluid temperature control in demanding environments. Featuring a robust aluminum plate-fin heat exchanger and a powerful integrated fan, the AH1417T-CA ensures efficient heat dissipation, extending the life of your hydraulic components and oil.

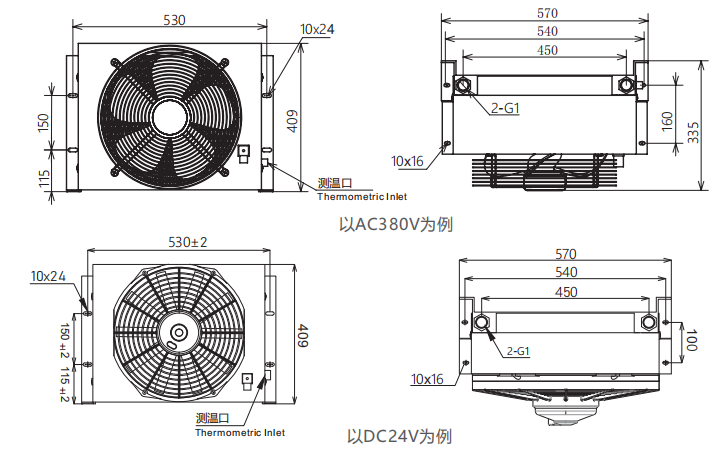

Dimensions

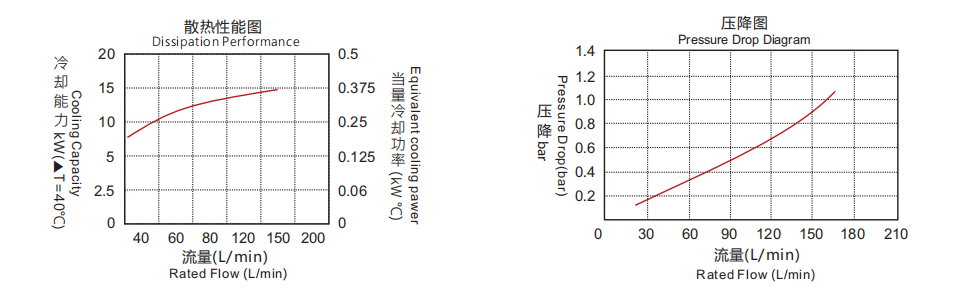

Performance

Key Features & Technical Specifications

• High Flow Capacity: Optimized for systems with a rated flow of up to 150 L/min.

• Pressure Resilience: Designed for a maximum working pressure of ≤2.0 MPa.
• Versatile Power Support: Available in multiple fan voltage configurations, including AC380V, AC220V, DC12V, and DC24V, to meet international power standards.

• Optimized Cooling Power: Delivers a cooling capacity of approximately 15 kW (at $\Delta T=40^{\circ}C$) with an equivalent cooling power of 0.375 kW/°C.

• Robust Construction: A net weight of 20 kg ensures a stable, heavy-duty build quality for industrial use.
• Technical Authority: Incorporates a Thermometric Inlet for precise temperature monitoring.

Application Scenarios

• Hydraulic Systems: Ideal for hydraulic stations, plastic injection molding machines, and forging equipment.
• Lubrication Systems: Reliable cooling for gearboxes and large rotating machinery.

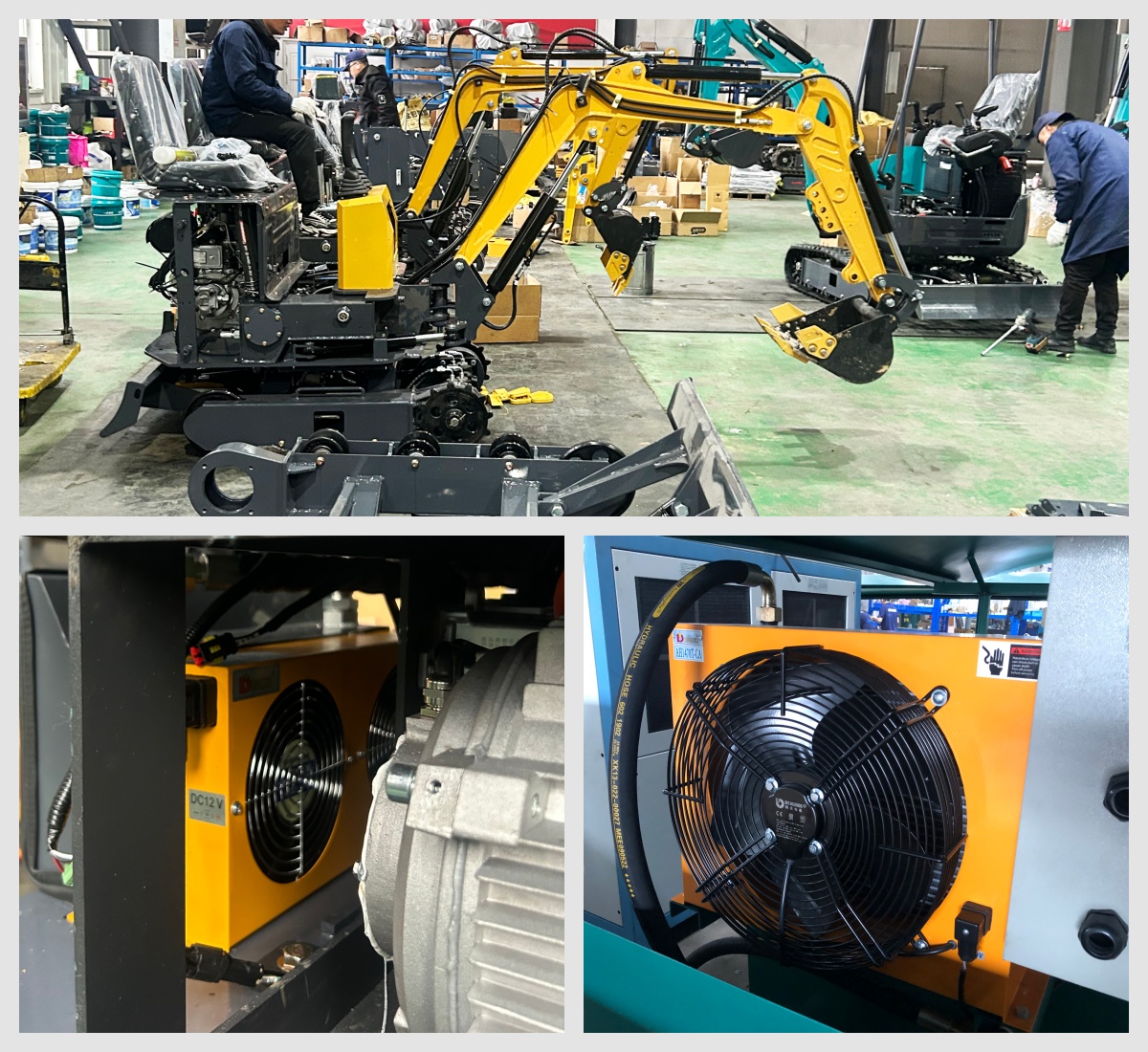

• Heavy Equipment: Suitable for construction machinery and mining equipment operating in high-load conditions.

• Emerging Sectors: Extensively used in energy storage, wind power, and semiconductor manufacturing fluid control.

• International Grade Packaging: Secured in reinforced export-standard crates to ensure the unit arrives in perfect condition.
• Global Shipping: Fully compatible with export requirements for European (e.g., Poland), North American, and Southeast Asian markets.
• Fast Lead Times: Direct from our production centers in Foshan, Wuxi, or Chengdu.

• Certified Safety: Fully CE Certified for compliance with European safety and quality standards.

• System Integrity: Manufactured under ISO9001 (Quality), ISO14001 (Environmental), and ISO10012 (Measurement) management systems.

• Long Lifespan: Engineered for a product lifespan of up to 10 years+.

• Guaranteed Quality: Every unit undergoes rigorous testing (Test Pressure) to ensure leak-free performance.

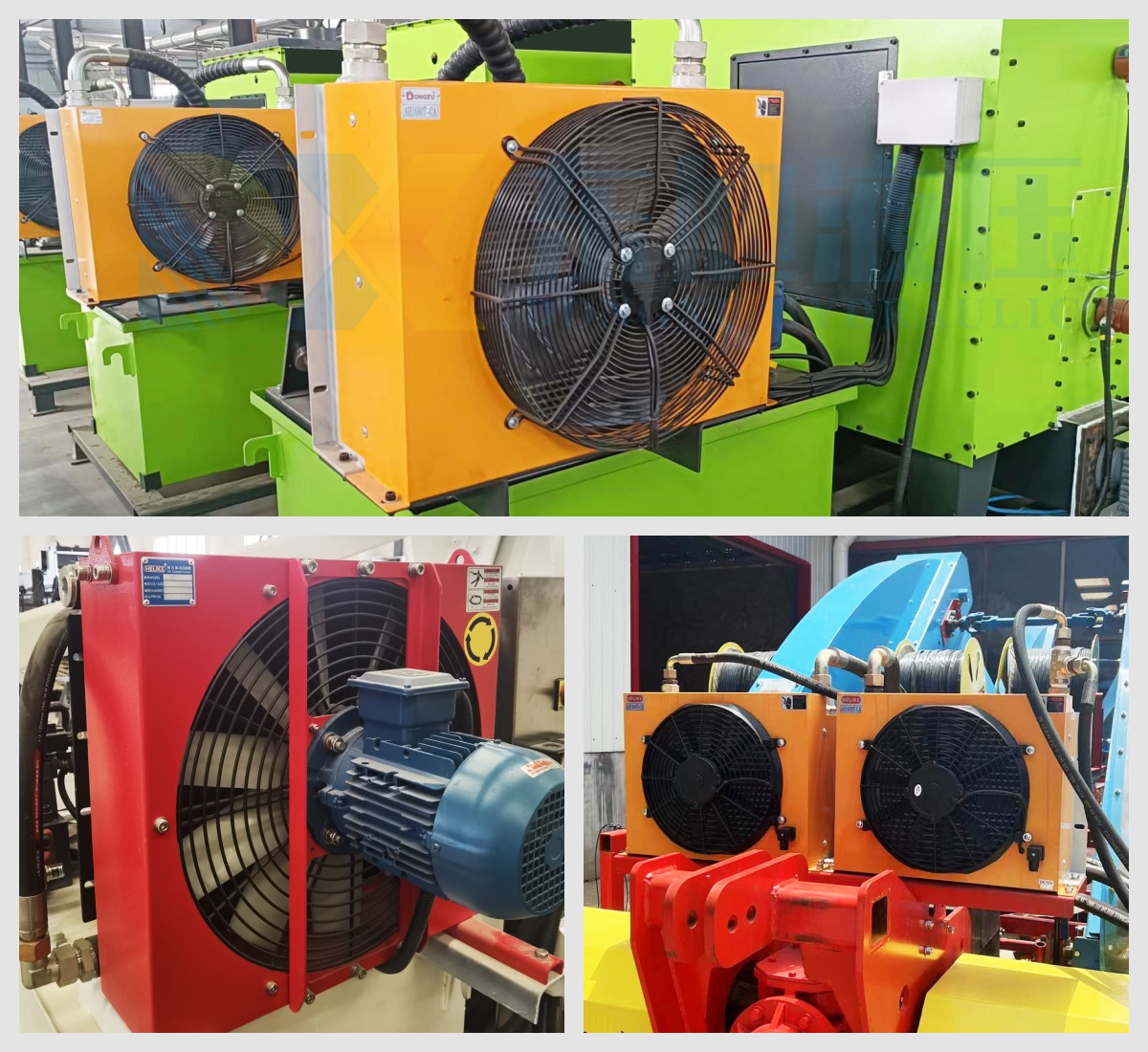

Case Studies

Product FAQs

Q1：How to select the correct air cooler size for my hydraulic system?
A1: You need to calculate the heat dissipation capacity (Pv) . Please provide us with: 1) Motor power (kW), 2) Desired oil temperature, 3) Ambient temperature, 4) Tank volume. We will calculate the required cooling power (W/℃) for you for free.

Q2：Can an air-cooled oil cooler be installed horizontally?

A2: Yes, but it is recommended to install it with the fan facing upward or with horizontal airflow. Avoid installing it with the oil port facing downward to prevent the accumulation of contaminants. Please refer to the product manual for specific installation instructions.

Q3: How can I tell if an air-cooled oil cooler needs cleaning?

A3: If the temperature difference between the inlet and outlet air decreases significantly, the outlet air temperature rises, or the oil temperature remains consistently high, the aluminum fins may need to be cleaned. We recommend using compressed air for backflushing or a specialized cleaning agent.

Q4: What are the space requirements for installing an air-cooled oil cooler?

A4: To ensure efficient heat dissipation, we recommend the following: ① Keep the air intake at least 300 mm away from obstacles; ② Keep the air outlet at least 400 mm away from walls or equipment; ③ When installing multiple units side by side, maintain a spacing of at least 200 mm between them or arrange them in a staggered pattern; ④ Avoid hot air recirculation (e.g., by directing the air outlet toward the air intakes of other equipment).
