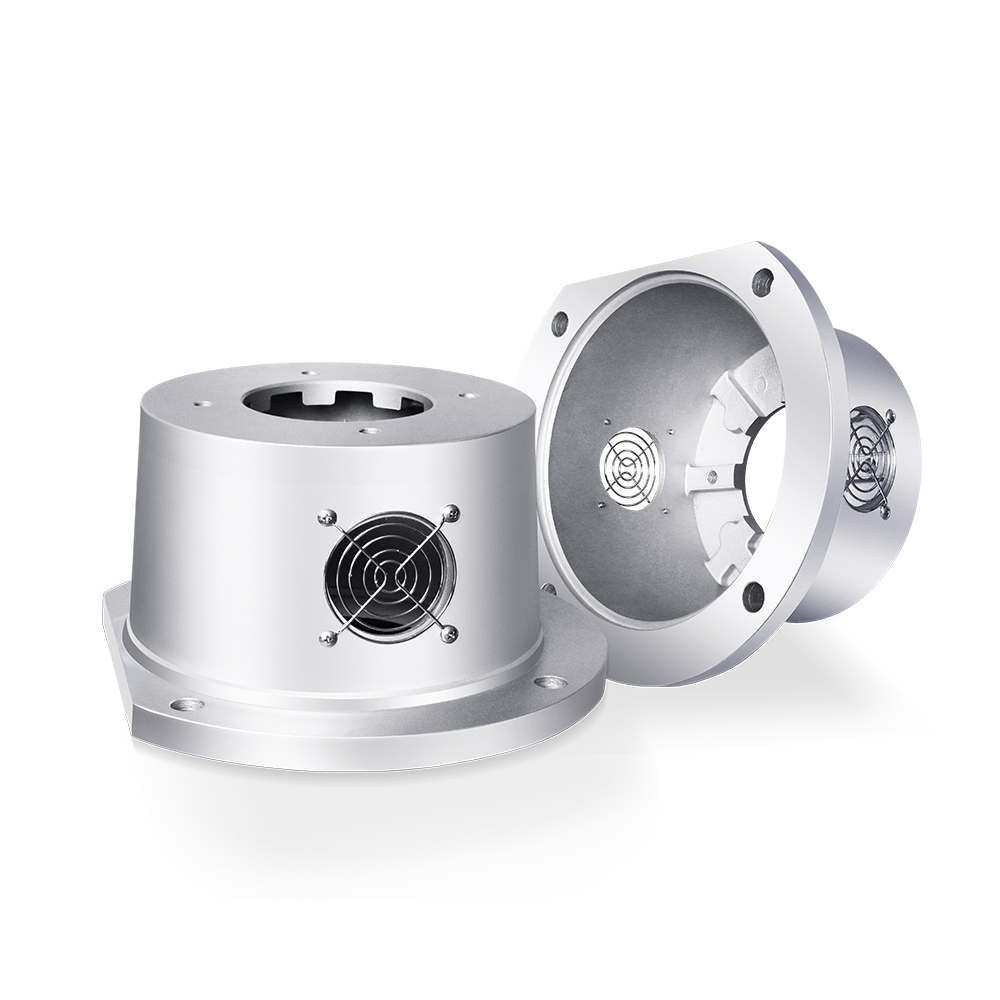

About Aluminum alloy bell housing (cut edge)
PK Series = Dongxu National Standard Bell-Shaped Hoods: Versatile, affordable, and widely available in stock.
Hydraulic Bell Housing (also known as a pump housing, coupling housing, or motor-pump coupling housing)
is a specialized protective housing used in hydraulic systems to connect the electric motor to the hydraulic pump. It features a built-in flexible coupling that ensures smooth power transmission from the motor to the hydraulic pump. As an essential standard component of complete hydraulic power units, Dongxu Hydraulics specializes in standard models compliant with national standards, offering thickened, durable designs with high coaxial precision.

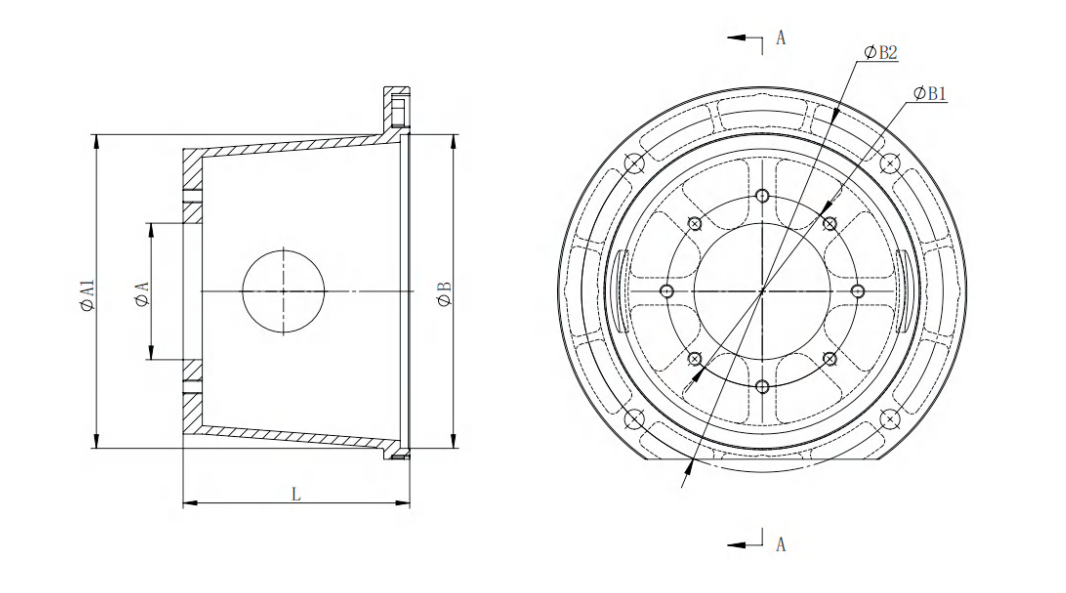

Product size drawing
Type parameter list
| Model |
A (Minimum) |
A1 |
B |
B1 |
B2 |
L |
| PK200 |
35 |
135 |
130 |
165 |
200 |
110 |
| 80 |
| PK250 |
25 |
184 |
180 |
215 |
250 |
120 |
| 35 |
130 |
| 50 |
150 |
| 70 |
160 |
| 75 |
188 |
| PK300 |
80 |
230 |
230 |
265 |
300 |
150 |
| 80 |
166 |
| 70 |
182 |
| 100 |
192 |
| PK350 |
50 |
250 |
250 |
300 |
350 |
187 |
| 60 |
197 |
| 75 |
204 |
| 100 |
226 |
| 120 |
213 |
| PK400 |
80 |
300 |
300 |
350 |
400 |
205 |
| 80 |
222 |
| 100 |
244 |
| 150 |
310 |
| PK450 |
100 |
350 |
350 |
400 |
450 |
235 |
| 100 |
265 |
| 100 |
285 |
| 150 |
335 |
| PK550 |
50 |
450 |
450 |
500 |
550 |
265 |
| 125 |
295 |
| 150 |
348 |
| 150 |
388 |
| PK660 |
120 |
550 |
550 |
600 |
660 |
310 |
| 120 |
330 |
| 125 |
345 |
| PK800 |
165.1 |
685 |
680 |
740 |
800 |
335 |
Figure 1 Figure 2
Order description
| Model NO |
Height of the bell housing |
Oil pump port |
Oil pump installation center distance (side distance) |
Oil pump mounting holes |
Motor installation method |
| PK350 |
187 |
101.6 |
146 |
4×M12/90° |
W |
- L indicates:vertical installation motor end with 4 through holes and 4 threaded holes
- W indicates:horizontal installation motor end with 4 through holes

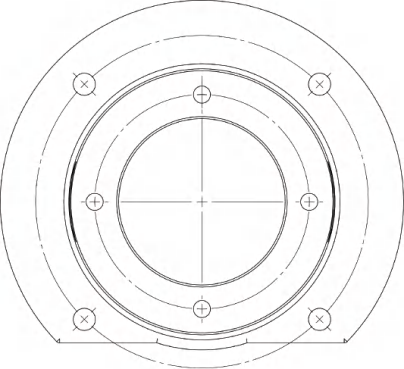

- 90°indicates:oil pump installation (see diagram 1)

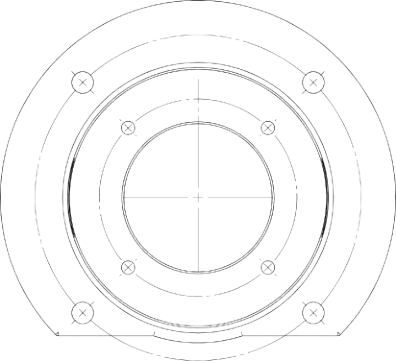

- 45°indicates:oil pump installation (see diagram 2)
- Note:Oil pump models and parameters provided by the customer,supplier drawing confirmation is primary
Product description
- Used for connecting IEC standard motors and hydraulic oil pumps
- The bottom of the bell housing is not solid but reinforced
- Side vents for easy observation of machine operation
- Suitable for heavy loads
- Available for vertical and horizontal motors
- No vents, high tensile strength, large torque, high density
