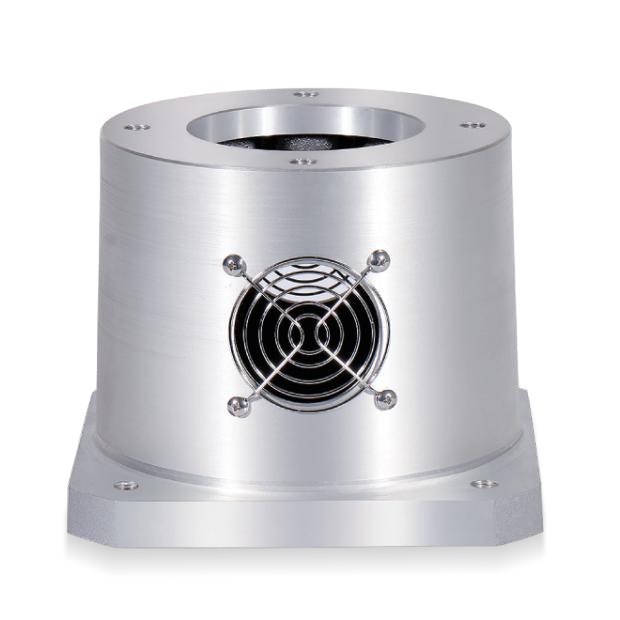

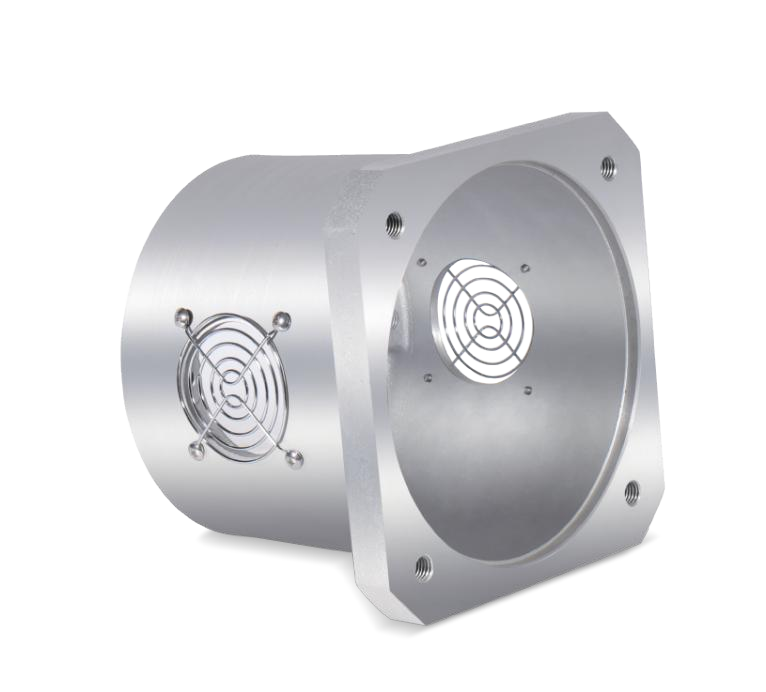

About Aluminum Alloy Servo Mount (Vertical/Horizontal)
DX Series = Dongxu Custom Bell Jars / Special-Purpose Flanged Bell Jars.
Hydraulic Bell Housing (also known as a pump housing, coupling housing, or motor-pump coupling housing)
is a specialized protective housing used in hydraulic systems to connect the electric motor to the hydraulic pump. It features a built-in flexible coupling that ensures smooth power transmission from the motor to the hydraulic pump. As an essential standard component of complete hydraulic power units, Dongxu Hydraulics specializes in standard models compliant with national standards, offering thickened, durable designs with high coaxial precision.

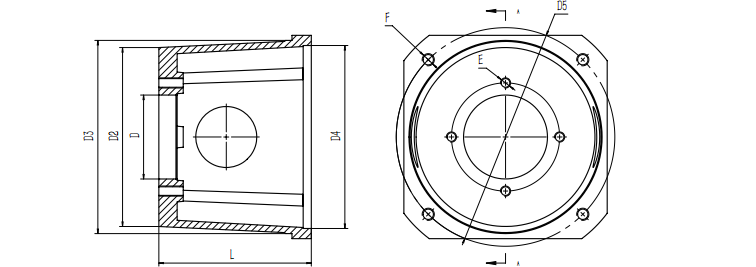

Product size drawing
Type parameter list
| Model NO |
L |
D |
D2 |
D3 |
D4 |
E |
F |
| DX110-LW |
145 |
82.55 |
140 |
110 |
145 |
4-M10 |
4-M8 |
| DX114.3-LW |
145 |
82.55 |
140 |
114.3 |
200 |
4-M10 |
4-M12 |
| DX130-LW |
130 |
82.55 |
140 |
130 |
200 |
4-M10 |
4-M12 |
| DX180-LW |
150 |
82.55 |
180 |
180 |
215 |
4-M10 |
4-M12 |
| 160 |
82.55 |
180 |
180 |
215 |
4-M10 |
4-M12 |
| 160 |
101.6 |
180 |
180 |
215 |
4-M12 |
4-M12 |
| 170 |
101.6 |
180 |
180 |
215 |
4-M12 |
4-M12 |
| 198 |
127 |
/ |
180 |
215 |
4-M16 |
4-M12 |
| DX250-LW |
230 |
127 |
250 |
250 |
300 |
4-M16 |
4-M16 |
| 230 |
152.4 |
/ |
250 |
300 |
4-M16 |
4-M16 |
| 230 |
180 |
/ |
250 |
300 |
4-M16 |
4-M16 |
Order description
| Model NO |
Motor port |
Height |
Oil pump port |
Vertical-horizontal |
| DX (specific to servo motors) |
110 |
145 |
82.55 |
LW |
- One-piece die-cast construction ensures uniform wall thickness and resistance to deformation and cracking.
- Precision-machined interior and exterior surfaces provide minimal flange clearance and high concentricity.
- Integrated cooling and ventilation holes prevent heat buildup during prolonged operation.
- Extremely versatile; compatible with direct installation on all mainstream electric motors and oil pumps on the market.
- Rust-resistant coating provides resistance to oil, water, and aging.
- Simple installation and removal; convenient for maintenance and coupler replacement.
Applications
- Hydraulic Power Units / Complete Hydraulic Systems: Standard hydraulic power units, custom hydraulic power units.
- High-Pressure Gear Pumps / High-Flow Pumps: Pumps with non-standard flanges (larger or thicker than standard), which cannot be mounted using PK flanges and require DX flanges.
- Construction Machinery: Small excavators, loaders, and mobile machinery with horizontal mounting configurations; DX flanges are commonly used in confined spaces and for edge-cut applications.
