Modle data sheet
| Model NO. |
DXB-3 |
DXB-4 |
DXB-5 |
DXB-6 |
DXB-7 |
DXB-8 |
DXB-9 |
DXB-10 |
DXB-11 |
DXB-12 |
DXB-13 |
DXB-14 |
DXB-15 |
| Equivalent Cooling Power (kW/℃) |
0.21 |
0.37 |
0.51 |
0.62 |
1.21 |
1.4 |
1.75 |
2.5 |
3.4 |
3.8 |
5 |
5.4 |
6.5 |
| Rated Flow (L/min) |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
| Max. Working Pressure (bar) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
| Fan Power (kW) |
0.55 |
0.75 |
1.1 |
1.5 |
1.5 |
2.2 |
3 |
3 |
4 |
2*2.2 |
2*3 |
2*3 |
2*4 |
| Inlet & Outlet Thread |
G1" |
G1¼" |
G1¼" |
G1¼" |
G1¼" |
G1½" |
G1½" |
G1½" |
G1½" |
G2" |
G2" |
G2" |
G2" |
| Thermometric Thread |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
| Noise Level (dB) |
62 |
66 |
68 |
77 |
77 |
83 |
87 |
92 |
98 |
83 |
87 |
92 |
98 |
| The noise value is measured at a distance of 1mfrom the cooler, whichis only forreferenceBecause itis affected by the suroundina environmentmedium viscosity and reflection. |

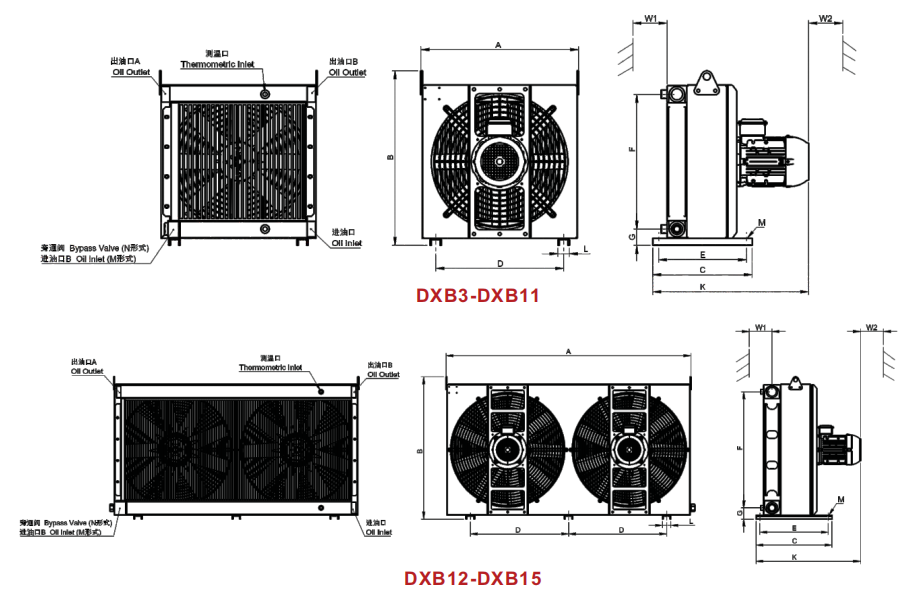

Dimensions
| Model NO. |
DXB-3 |
DXB-4 |
DXB-5 |
DXB-6 |
DXB-7 |
DXB-8 |
DXB-9 |
DXB-10 |
DXB-11 |
DXB-12 |
DXB-13 |
DXB-14 |
DXB-15 |
| A (±5) |
427 |
532 |
587 |
632 |
632 |
752 |
837 |
972 |
1082 |
1442 |
1642 |
1842 |
2047 |
| B (±5) |
503 |
563 |
603 |
623 |
623 |
763 |
919 |
1059 |
1208 |
763 |
913 |
1043 |
1193 |
| C (±2) |
350 |
350 |
350 |
450 |
450 |
450 |
500 |
600 |
600 |
450 |
500 |
600 |
600 |
| D (±2) |
290 |
310 |
350 |
450 |
490 |
560 |
645 |
700 |
700 |
560 |
645 |
700 |
800 |
| E (±2) |
310 |
310 |
310 |
400 |
400 |
400 |
450 |
550 |
550 |
400 |
450 |
550 |
550 |
| F (±5) |
384 |
434 |
475 |
495 |
495 |
634 |
780 |
920 |
1070 |
600 |
760 |
900 |
1050 |
| G (±5) |
50 |
55 |
55 |
55 |
55 |
55 |
60 |
60 |
70 |
70 |
65 |
65 |
65 |
| K (±10) |
496 |
530 |
535 |
611 |
631 |
666 |
686 |
686 |
713 |
706 |
706 |
706 |
713 |
| L (±2) |
40 |
40 |
40 |
45 |
45 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
| M |
12x18 |
12x18 |
12x18 |
12x18 |
12x18 |
14x22 |
14x22 |
18x25 |
18x25 |
14x22 |
14x22 |
18x25 |
18x25 |
| W1 |
180 |
200 |
220 |
250 |
280 |
320 |
380 |
400 |
500 |
320 |
380 |
400 |
500 |
| W2 |
380 |
400 |
450 |
500 |
550 |
650 |
750 |
800 |
1000 |
650 |
750 |
800 |
1000 |

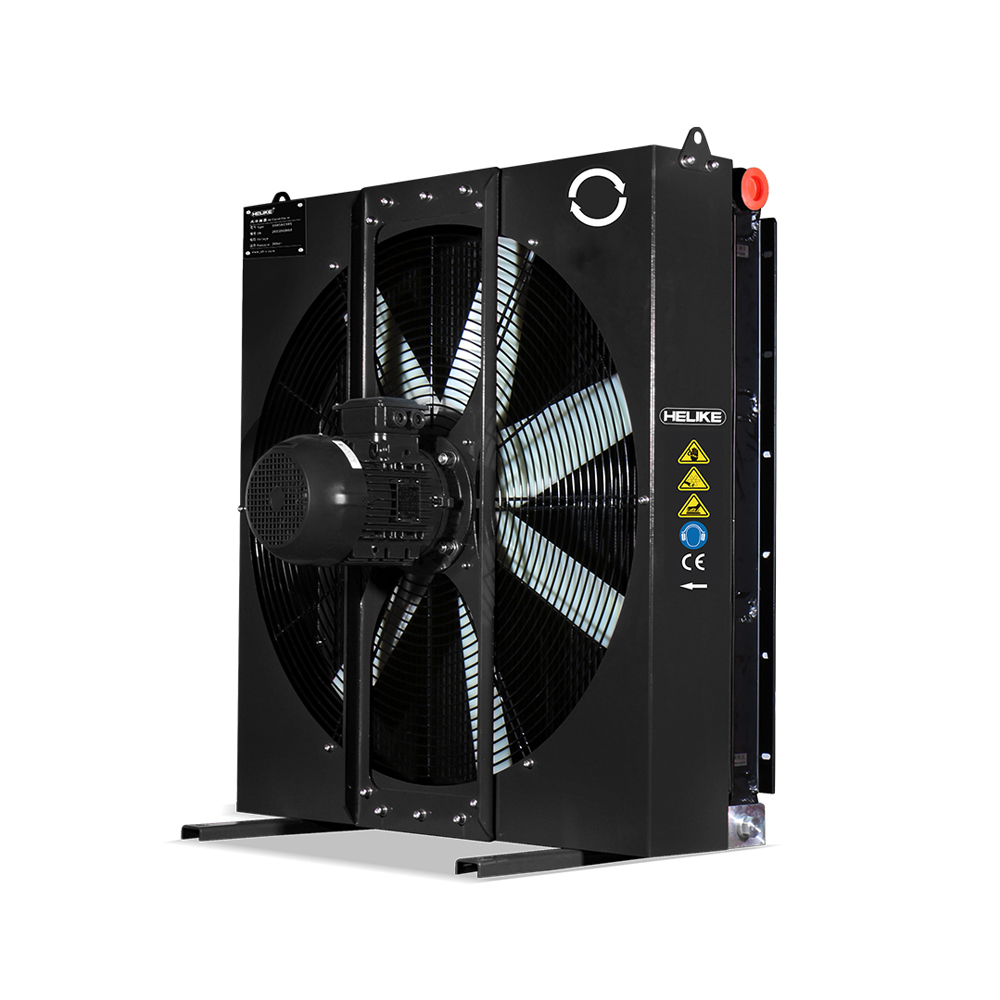

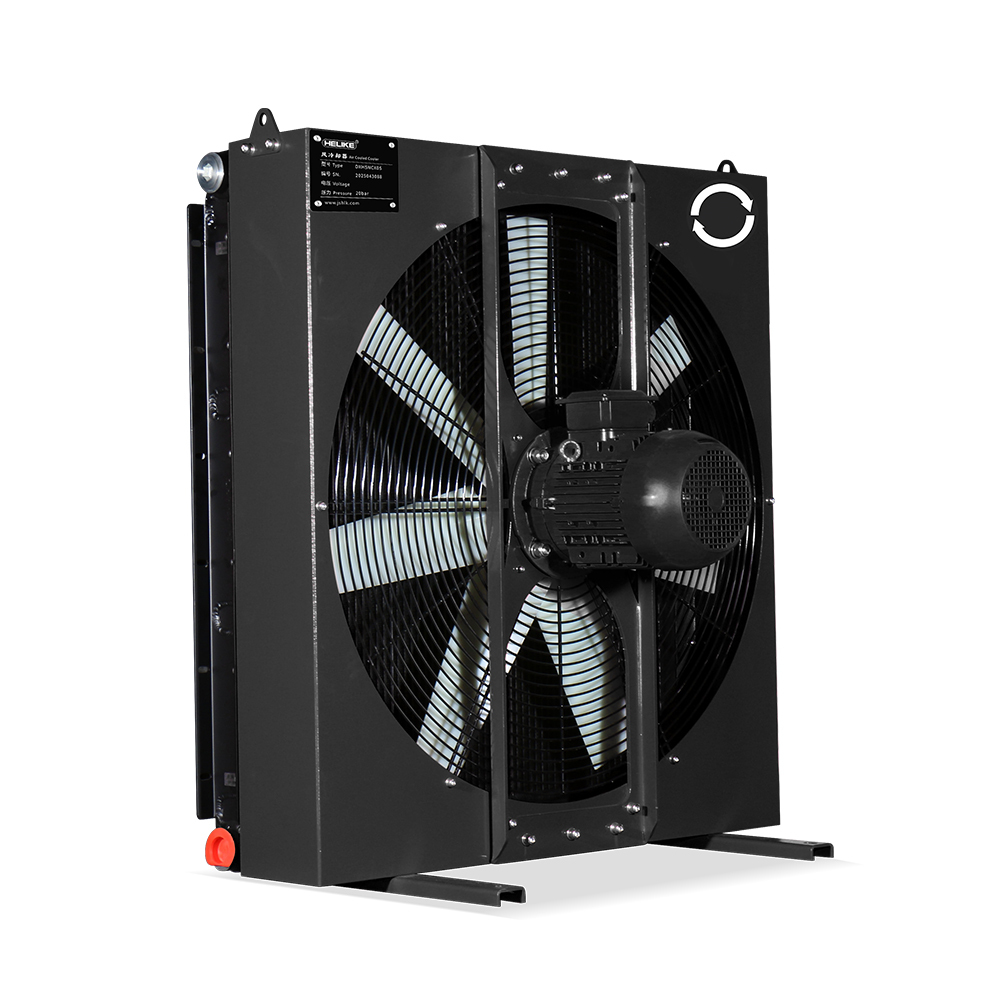

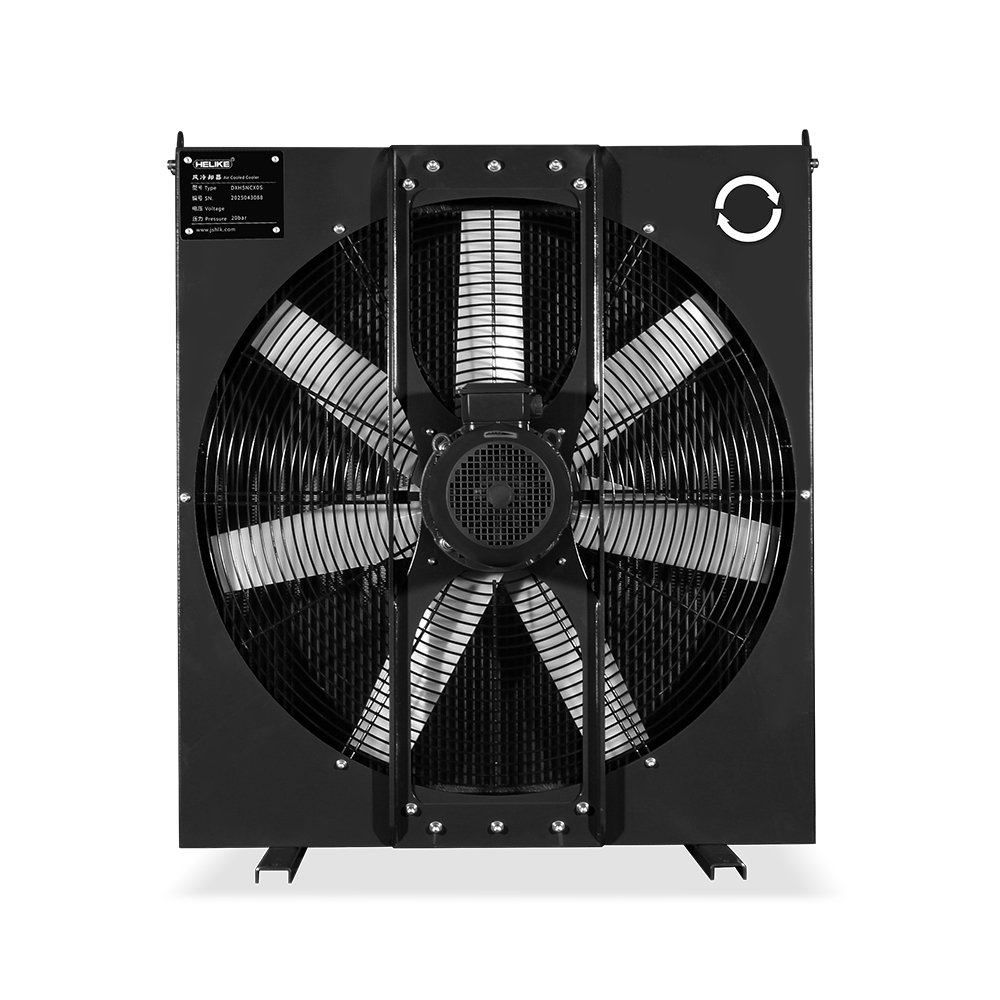

Product Description
Title: DXB Series Industrial Air Cooled Oil Cooler | MEISON Premium Hydraulic Cooling System
The DXB Series is engineered for demanding industrial applications requiring high-capacity thermal management. As a cornerstone of MEISON’s high-pressure cooling portfolio, the DXB series utilizes an advanced plate-fin architecture to ensure maximum heat dissipation efficiency. Designed for hydraulic stations, injection molding machines, and heavy-duty industrial power units, the DXB series provides the precision temperature stability necessary to optimize machinery performance and minimize system downtime.
Key Features & Technical Specifications
-

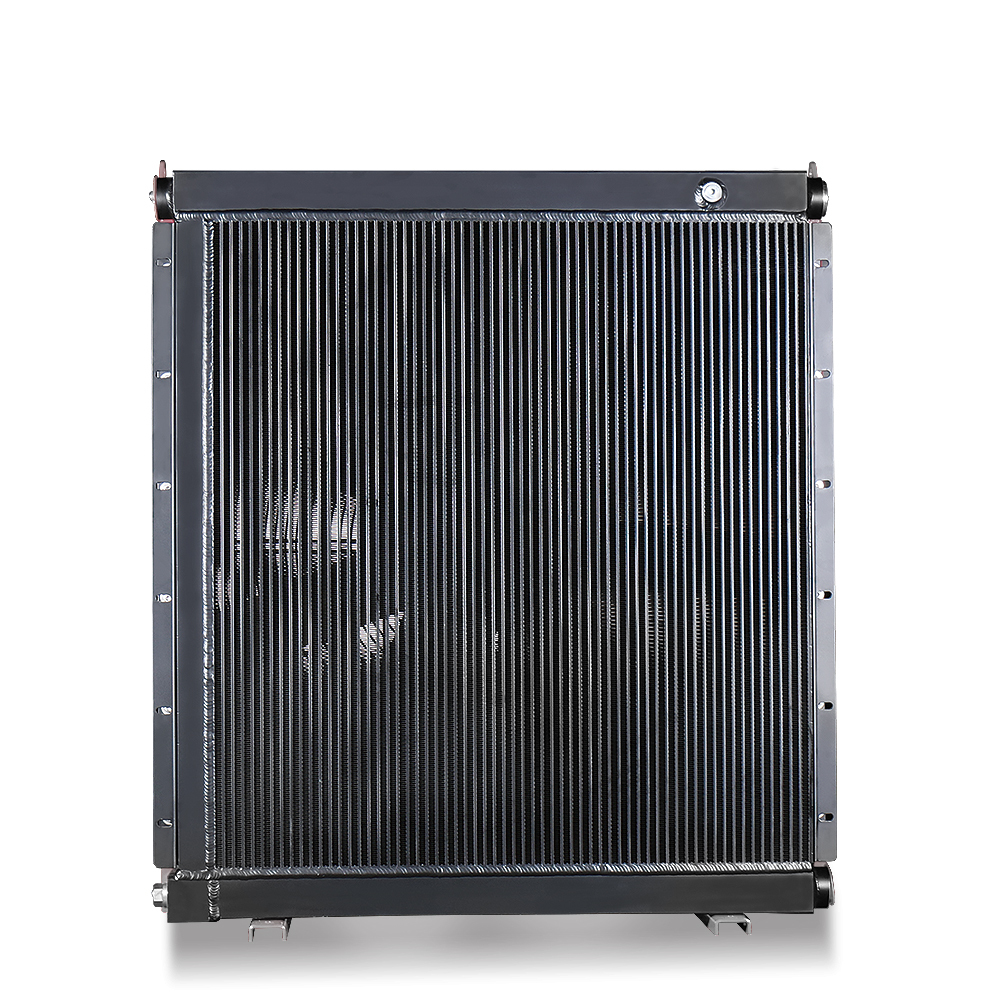

High-Efficiency Thermal Exchange: Optimized aluminum fin structure for superior heat transfer in high-temperature environments.
- Superior Pressure Handling: Engineered for rigorous industrial duty cycles with high-pressure structural integrity.
- Integrated Reliability: Features a low-noise, high-performance fan system designed for continuous 24/7 operation.
- Global Power Compliance: Compatible with diverse industrial power grids (AC380V/440V, 50Hz/60Hz), ensuring seamless integration for international projects.
- Robust Build: Anti-corrosion, impact-resistant housing that guarantees long-term durability in harsh industrial or outdoor conditions.
Application Scenarios
The DXB Series is the preferred cooling solution for heavy-duty sectors:
- Large Hydraulic Stations: Providing stable cooling for centralized hydraulic power units.
- Plastic & Rubber Machinery: Optimized for injection molding, extrusion, and blow molding cooling requirements.
- Metalworking Equipment: Reliable thermal control for hydraulic presses, forging, and stamping machinery.
- Industrial Automation: Essential temperature management for large-scale production line robotics and hydraulic actuators.
Packaging & Delivery
- Industrial-Grade Protection: Packed in reinforced, moisture-proof, and anti-shock wooden crating suitable for long-haul ocean or air freight.
- Global Fulfillment: Factory-direct dispatch with established logistics chains to Europe, North America, and Asia.
- Documentation Support: Fully documented for customs, including CE compliance declarations, ensuring hassle-free import.
Certification & Quality Assurance
- International Standards: Certified CE for European safety compliance; managed under ISO9001 (Quality), ISO14001 (Environmental), and ISO10012 (Measurement) standards.
- Longevity: Designed for a operational lifespan of up to 10 years, backed by MEISON’s commitment to quality.
- Rigorous Testing: Every DXB unit undergoes multi-stage leakage and performance pressure testing before leaving the factory.
The MEISON Advantage
- Global Trusted Partner:
With over 1,000,000 units sold to 6,000+ customers worldwide, we are your reliable partner in fluid control.
- R&D Innovation: Backed by over 60 patented achievements and collaborative research with prestigious universities.
- Cinematic Industrial Design: Our products reflect technical authority and precision, designed to build immediate customer trust through an international corporate image.
Product FAQS
- Is the DXB series suitable for high-viscosity oil?
Yes, the DXB series is designed with optimized channel geometries to maintain efficient cooling even with high-viscosity hydraulic oils.
- Can I customize the fan voltage for specific regions?
Absolutely. We provide customized motor configurations (Voltage/Frequency) tailored to your local power grid standards.
- How does this differ from the AH series?
The DXB series is specifically optimized for high-pressure, high-load industrial scenarios where thermal efficiency and structural robustness are the highest priorities.
