Extra-large-capacity PA150 oil cooler for port mining machinery systems

Name: Extra-large-capacity PA150 oil cooler for port mining machinery systems
Brand: Meison Online Store
SKU: DXY-PA150
Price: 4500 USD
Availability: InStock

Product Description
Model: DXY-PA150
Cooling Capacity: 46.5kW (40000 kcal/h)
Power Supply: 3PH/AC380±10%50Hz
Temperature Control Range: 20–50 °C
Weight: 386 kg
Minimum Order Quantity: 1 set

0.0 (0 Reviews)

0 Sold

$4,500.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Parameter	Value
Model No	DXY-PA150
Cooling Capacity	46.5kW (40000 kcal/h)
Input Power	3PH/AC380±10%50Hz
Core Components	Compressor, condenser, oil pump, temperature control board
Mechanical Test Report	Available
Video Inspection Before Shipment	Available
Key Selling Point	High safety
Place of Origin	Guangdong, China
Weight (KG)	386
Brand Name	Dongxu
Temperature Control Range	20–50 °C
Dimensions (LWH)	1540x900x1760mm
After-sales Service Provided	we will provide a replacement or spare parts for free
Payment	T/T, L/C
Application	Cooling,Constant temperature
Features	Constant temperature, long service life, durable
Usage	Lubricating oil, hydraulic oil
ODM/OEM	Welcome
Warranty	12 Months

Product Introduction
The Dongxu DXY-PA150 industrial oil cooler is a high-power, heavy-duty precision temperature control unit in the PA series, specifically designed to meet the high-heat-load cooling requirements of large industrial equipment. It utilizes a compressor-based refrigeration system, featuring a complete refrigeration circuit comprising a compressor, condenser, evaporator, expansion valve, and circulating oil pump, to provide powerful cooling capacity for circulating media such as hydraulic oil and lubricating oil.

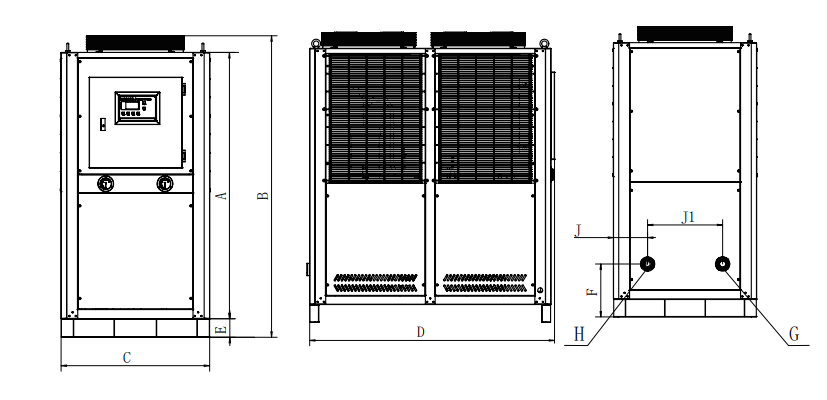

Product size drawing

SERIES	A	B	C	D	E	F	J	J1	G	H
DXY-PA120	1439	1630	800	1375	100	297	191	421	Rc2" Fuel inlet	Rc2" Oil outlet
DXY-PA150	1555	1760	900	1540	100	313	276	380	Rc2.5" Fuel inlet	Rc2.5" Oil outlet

Key Features
High-Power Cooling: Capable of effectively handling the massive heat generated by large, heavy-duty equipment during continuous operation, making it the flagship cooling unit in the series.
Dual-Mode Intelligent Temperature Control: Features two control modes: “Constant Temperature” and “Room Temperature Synchronization.”
Imported Core Components: Equipped with imported, brand-name compressors for reliable operation and high efficiency; features an imported oil pump for superior stability and durability.
Multiple Safety Protections: Features multiple protective functions, including real-time temperature monitoring, early warnings, and alarms. Equipped with a dry contact alarm terminal to ensure equipment safety even during unattended operation.
Precision Oil Maintenance: Precise oil temperature control prevents oil degradation caused by high temperatures, maintains stable oil viscosity, and extends service life.

Applications
Suitable for giant forging presses, large-scale die-casting production lines, and large-scale rubber and plastic processing equipment; lubrication and cooling systems for super-heavy-duty gantry boring and milling machines and large-scale steel rolling equipment; large hydraulic construction machinery used in mining and port crane operations; and centralized, constant-temperature hydraulic oil cooling systems for multiple units in industrial parks.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
