About DXT-A2

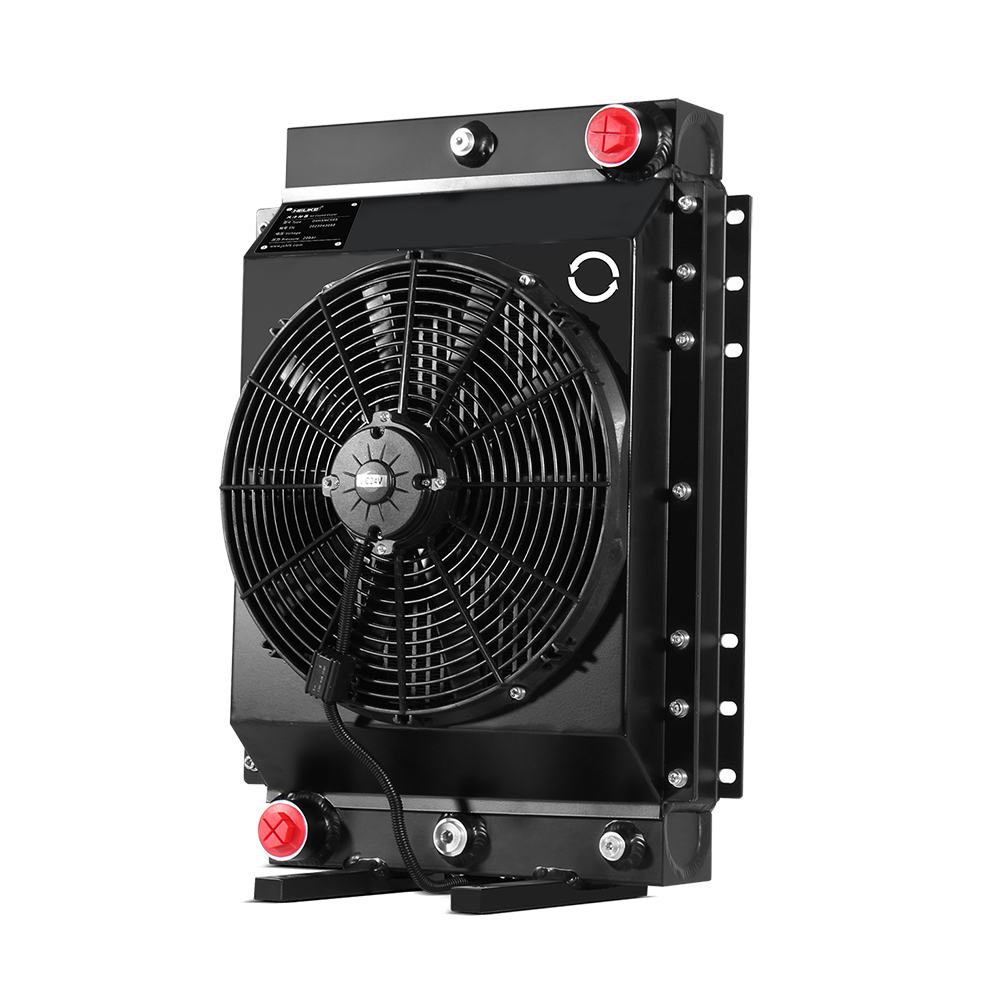

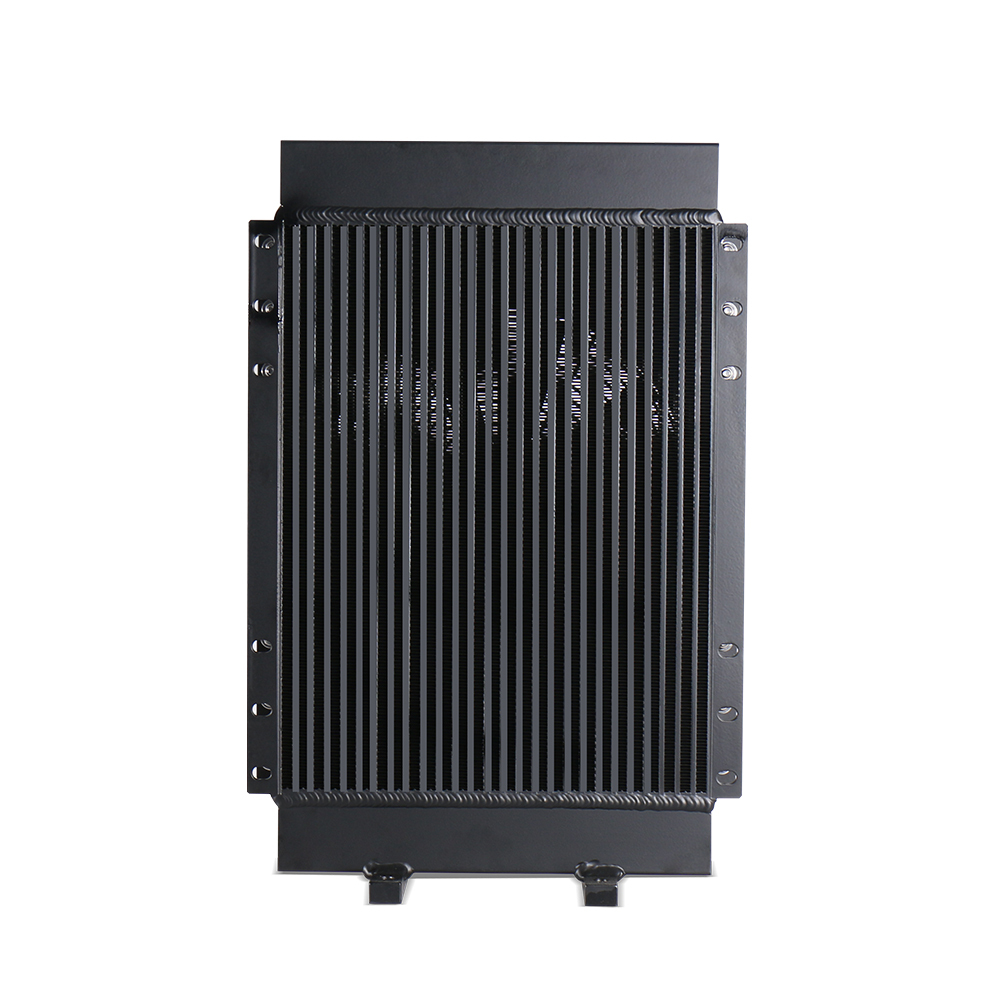

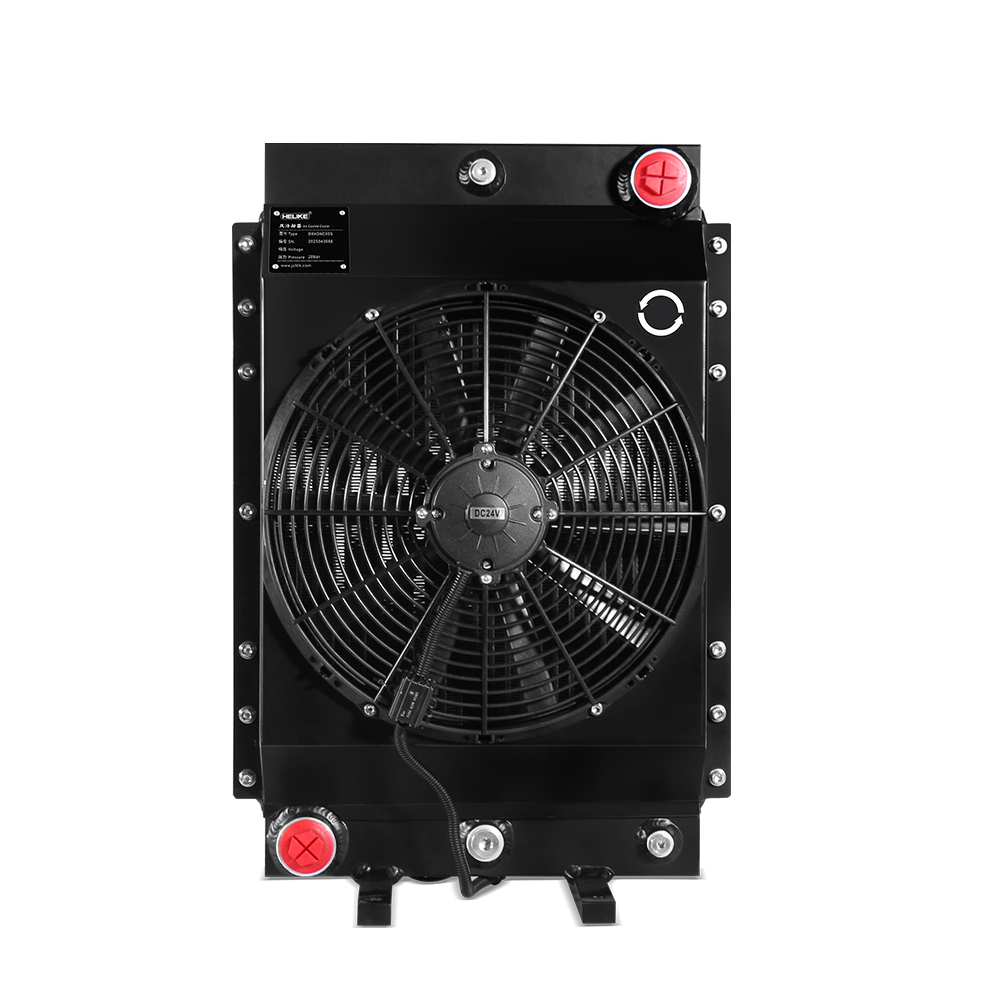

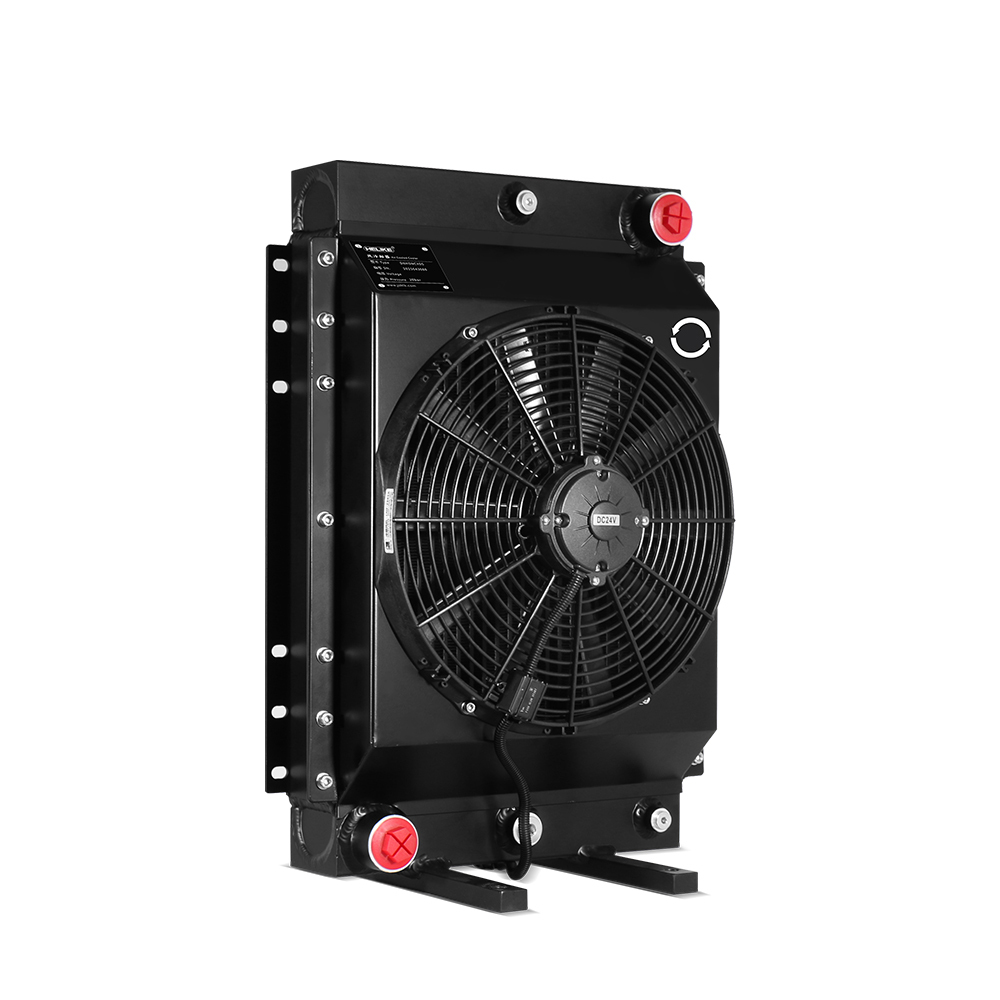

The DXT-A2 Series is a compact, vertical plate-type air-cooled hydraulic oil cooler. With its compact, space-saving vertical design, it is ideal for small- to medium-flow hydraulic and lubrication systems. Featuring a lightweight, reinforced structure, low noise, and vibration resistance, it offers high heat dissipation efficiency, easy installation, and excellent value for money. It is suitable for standard heat dissipation applications in machine tools, small hydraulic power units, and light industrial equipment.
Modle data sheet
| Model |
Motor Voltage (V) |
Motor Power (kW) |
Blade Speed (r/min) |
Noise Level (dB) |
Equivalent Cooling Power (kW/°C) |
Max. Working Pressure (bar) |
Max. Temperature (°C) |
Max. Flow (L/min) |
| DXT-1 |
12 |
0.12 |
2700 |
70 |
0.12 |
20 |
130 |
60 |
| 24 |
0.15 |
| DXT-2 |
12 |
0.12 |
2700 |
75 |
0.25 |
20 |
130 |
100 |
| 24 |
0.15 |
73 |
| DXT-3 |
12 |
0.2 |
2700 |
76 |
0.39 |
20 |
130 |
150 |
| 24 |
0.2 |
78 |
| DXT-4 |
12 |
0.2 |
2700 |
77 |
0.47 |
20 |
130 |
200 |
| 24 |
0.2 |
78 |
| DXT-5 |
12 |
0.2 |
2700
|
79 |
0.71 |
20 |
130 |
250 |
| 24 |
0.2 |
82 |
| DXT-6 |
12 |
0.2 |
2700 |
79 |
0.9 |
20 |
130 |
300 |
| 24 |
0.2 |
82 |
|
The noise value is measured at a distance of 1m from the cooler, which is only for referenceBecause it is affected by the surroundina environment,medium viscosity and reflection.
|

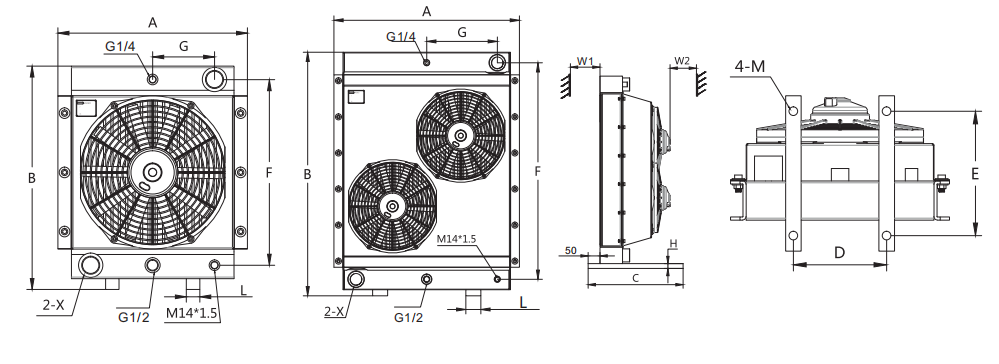

| Model |
A |
B |
C |
D |
E |
G |
H |
L |
M |
X |
F |
W1 |
W2 |
| DXT-1-A2 |
270 |
335 |
200 |
80 |
150 |
65 |
15 |
25 |
Ø14 |
G1" |
270 |
100 |
250 |
| DXT-2-A2 |
352 |
415 |
250 |
150 |
200 |
115 |
20 |
25 |
Ø14 |
G1" |
345 |
150 |
300 |
| DXT-3-A2 |
456 |
540 |
300 |
200 |
250 |
160 |
20 |
25 |
Ø14 |
G1" |
460 |
200 |
400 |
| DXT-4-A2 |
450 |
560 |
300 |
200 |
250 |
160 |
20 |
30 |
Ø14 |
G1½" |
469 |
220 |
450 |
| DXT-5-A2 |
470 |
710 |
300 |
200 |
250 |
165 |
20 |
30 |
Ø14 |
G1¼" |
620 |
220 |
450 |
| DXT-6-A2 |
617 |
810 |
400 |
310 |
350 |
235 |
20 |
50 |
Ø16 |
G1¼" |
720 |
280 |
550 |
- Compact and Space-Saving: With its vertical, compact design, it takes up minimal floor space and is ideal for side-mounted or vertical installation layouts.
- High Heat Dissipation Efficiency: The precision-welded plate-fin core ensures excellent heat exchange, meeting cooling requirements for small to medium flow rates.
- Stable and Quiet Operation: The one-piece sheet metal construction reduces vibration and noise, ensuring smooth, resonance-free operation.
- Corrosion-Resistant and Durable: The electrostatic spray coating provides rust and corrosion protection, enabling long-term, continuous, and stable operation.
Applications
1.Widely used in hydraulic systems, lubrication systems, and transmission systems.
2.Suitable for high cooling power applications such as mining, marine machinery, port machinery, and
petrochemical industries.
3.Operating conditions with significant temperature differences between the inlet and outlet.
Packaging & Delivery
- Secure Transit: Shipped in specialized, reinforced industrial-grade packaging to protect the heat exchanger fins and fan assembly during global transit.
- Efficient Logistics: Factory-direct fulfillment from our production hubs, ensuring rapid lead times for both standard and custom configurations.
- Export-Ready: Fully documented for international logistics, ensuring compliance with global customs and safety standards.
Certification & Quality Assurance
- International Certification: CE Marked for European quality and safety compliance.
- Quality Management: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management protocols.
- Long-Term Performance: Engineered for a product lifespan of up to 10 years+, offering unmatched value and reliability.
- Rigorous Testing: Every DXF unit undergoes high-pressure leakage and performance testing to ensure zero-failure operation.
Product FAQs
Q1：Is the DXT-A2 suitable for 24/7 continuous operation?A1：Absolutely. The entire unit features a reinforced plate-fin structure that is heat-resistant and fatigue-resistant, enabling 24/7 uninterrupted operation. It is ideal for production lines and heavy industrial equipment requiring long-term, non-stop operation.Q2：What applications is the DXT-A2 suitable for?
A2：This compact, economical vertical model is specifically designed for hydraulic and lubrication systems with medium to low flow rates and power ratings. It features a small footprint, adequate heat dissipation, and excellent value for money.
Q3：How is the durability and corrosion resistance?A3：The entire unit features an electrostatic spray coating that provides rust and corrosion protection as well as resistance to aging. It is designed for long-term use in standard indoor industrial environments without peeling paint or rusting.Q4：Can I customize the fan voltage for specific regions?A4：Absolutely. We provide customized motor configurations (Voltage/Frequency) tailored to your local power grid standards.
