About DXD
Compact and space-saving, with excellent heat dissipation and great value for money; flexible installation, low noise, and maintenance-free—tailored specifically for small-to-medium-power hydraulic equipment.Modle data sheet
| Model |
DXD-2 |
DXD-3 |
DXD-4 |
DXD-5 |
DXD-6 |
DXD-7 |
DXD-8 |
DXD-9 |
DXD-10 |
| Equivalent Cooling Power (KW/°C) |
0.15 |
0.2 |
0.3 |
0.38 |
0.49 |
0.7 |
1.05 |
1.5 |
2 |
| Rated Flow (L/min) |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
| Max. Working Pressure (bar) |
20 |
20 |
20 |
20 |
20 |
20.5 |
20 |
20 |
20 |
| Fan Power (W) |
150 |
200 |
200 |
2×150 |
2×150 |
2×150 |
2×200 |
4×200 |
4×200 |
| Standard Working Voltage (V) |
24/12 |
24/12 |
24/12 |
24/12 |
24/12 |
24/12 |
24/12 |
24/12 |
24/12 |
| Inlet/Outlet Thread |
G¾" |
G1" |
G1¼" |
G1¼" |
G1¼" |
G1¼" |
G1½" |
G1½" |
G1½" |
| Thermometric Thread |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
| Noise Level (dB) |
52 |
68 |
71 |
72 |
74 |
75 |
78 |
79 |
84 |
| The noise value is measured at a distance of 1m from the cooler, which is only for referenceBecause it is affected by the surroundina environment,medium viscosity and reflection. |

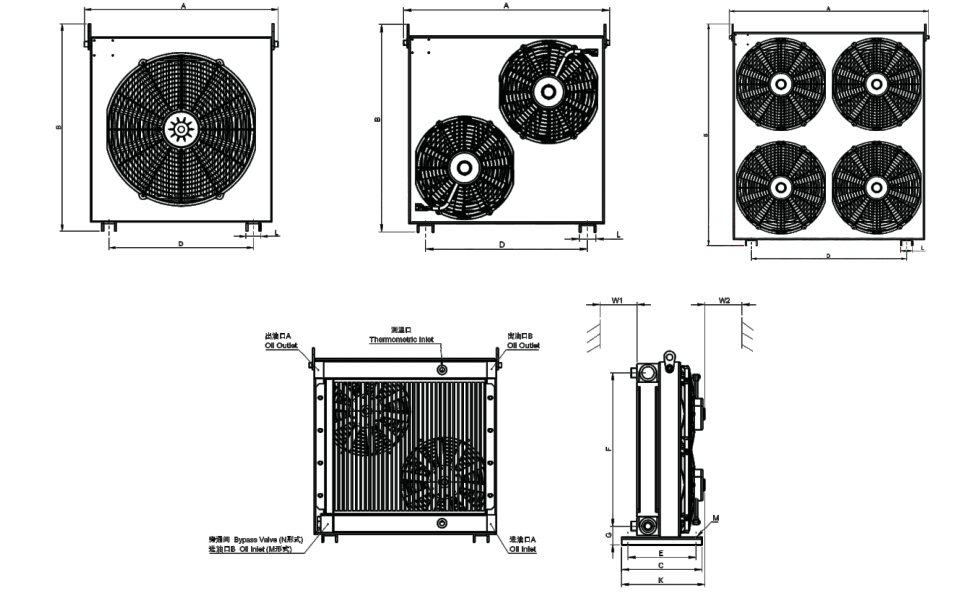

| Model |
DXD-2 |
DXD-3 |
DXD-4 |
DXD-5 |
DXD-6 |
DXD-7 |
DXD-8 |
DXD-9 |
DXD-10 |
| A (±5) |
365 |
425 |
530 |
585 |
630 |
630 |
750 |
835 |
970 |
| B (±5) |
400 |
500 |
565 |
600 |
625 |
625 |
765 |
920 |
1060 |
| C (±2) |
250 |
250 |
260 |
260 |
260 |
300 |
300 |
300 |
300 |
| D (±2) |
230 |
290 |
390 |
450 |
490 |
490 |
560 |
645 |
700 |
| E (±2) |
210 |
210 |
220 |
220 |
220 |
260 |
260 |
260 |
260 |
| F (±5) |
295 |
384 |
434 |
475 |
495 |
495 |
634 |
780 |
920 |
| G (±5) |
45 |
50 |
55 |
55 |
55 |
55 |
55 |
60 |
60 |
| K (±10) |
239 |
255 |
280 |
266 |
269 |
289 |
298 |
298 |
300 |
| L (±2) |
40 |
40 |
40 |
40 |
50 |
50 |
50 |
50 |
50 |
| M |
12×18 |
12×18 |
12×18 |
12×18 |
14×22 |
14×22 |
14×22 |
14×22 |
14×24 |
| W1 |
180 |
200 |
250 |
300 |
300 |
300 |
350 |
400 |
450 |
| W2 |
360 |
400 |
500 |
600 |
600 |
600 |
700 |
800 |
900 |
Key Features & Technical Specifications
- Compact and space-saving design, ideal for tight installation spaces
- High-density aluminum finned core ensures stable cooling efficiency even at low flow rates
- Standard mounting holes support various installation orientations, including top, side, and vertical mounting
- Low-noise axial fan with smooth operation and long service life
- Integrated vacuum brazing process ensures excellent sealing and prevents oil seepage or leakage
- Cost-effective and high value for money, suitable as a universal replacement for small- to medium-power hydraulic systems
Applications Small hydraulic power units, woodworking machinery, small CNC machine tools, custom automation equipment, auxiliary machinery for light industry, small conveying machinery, injection molding peripheral equipment, and standard hydraulic systems for low-to-medium power applications.
Packaging & Delivery
- Secure Transit: Shipped in specialized, reinforced industrial-grade packaging to protect the heat exchanger fins and fan assembly during global transit.
- Efficient Logistics: Factory-direct fulfillment from our production hubs, ensuring rapid lead times for both standard and custom configurations.
- Export-Ready: Fully documented for international logistics, ensuring compliance with global customs and safety standards.
Certification & Quality Assurance
- International Certification: CE Marked for European quality and safety compliance.
- Quality Management: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management protocols.
- Long-Term Performance: Engineered for a product lifespan of up to 10 years+, offering unmatched value and reliability.
- Rigorous Testing: Every DXF unit undergoes high-pressure leakage and performance testing to ensure zero-failure operation.
Product FAQsQ1：Is the DXD suitable for 24/7 continuous operation?A1：Suitable for continuous daytime production in factories and intermittent heavy-duty applications; for 24/7 high-load operations in high-temperature environments, we recommend upgrading to the DXB or DXG series for greater reliability.
Q2：What is the difference between DXD and DXB? How do I choose between them?
A2：DXD: Small, compact, and designed for lower flow rates; suitable for 0.4–15 kW hydraulic systems and applications with limited space.
DXB: Standard industrial model with higher flow rates and ample cooling capacity; suitable for 15–45 kW conventional machine tools and hydraulic power units.
Choose DXD for applications with limited space and low flow rates; choose DXB for slightly higher power requirements or when additional cooling capacity is needed.
Q3：Is the DXD difficult to install and maintain? Is it prone to oil leaks?
A3：It features a minimalist design with standard oil ports (G1/2–G1) and supports upright, inverted, or side-mounted installation. The fully vacuum-brazed core eliminates the risk of leaks at brazed joints, making it virtually maintenance-free and resistant to oil leaks when installed and used properly.
Q4：Can I customize the fan voltage for specific regions?
A4：Absolutely. We provide customized motor configurations (Voltage/Frequency) tailored to your local power grid standards.
