The DXC Series air-cooled hydraulic oil coolers, equipped with anti-vibration mounts, are specifically designed for concrete mixers and truck-mounted cranes

Name: The DXC Series air-cooled hydraulic oil coolers, equipped with anti-vibration mounts, are specifically designed for concrete mixers and truc
Brand: Meison Online Store
SKU: DXC
Price: 1 USD
Availability: InStock

Application

Environments: Suitable for challenging conditions including indoor,outdoor, waterproof, and dustproof settings.

Industries: Suitable for construction vehicles, sanitation equipment, agricultural machinery, and the mobile hydraulics industry.
Features
Custom-designed for mobile construction machinery, compatible with concrete mixers, dump trucks, and truck-mounted cranes, as well as various types of mobile hydraulic systems

0.0 (0 Reviews)

0 Sold

$1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

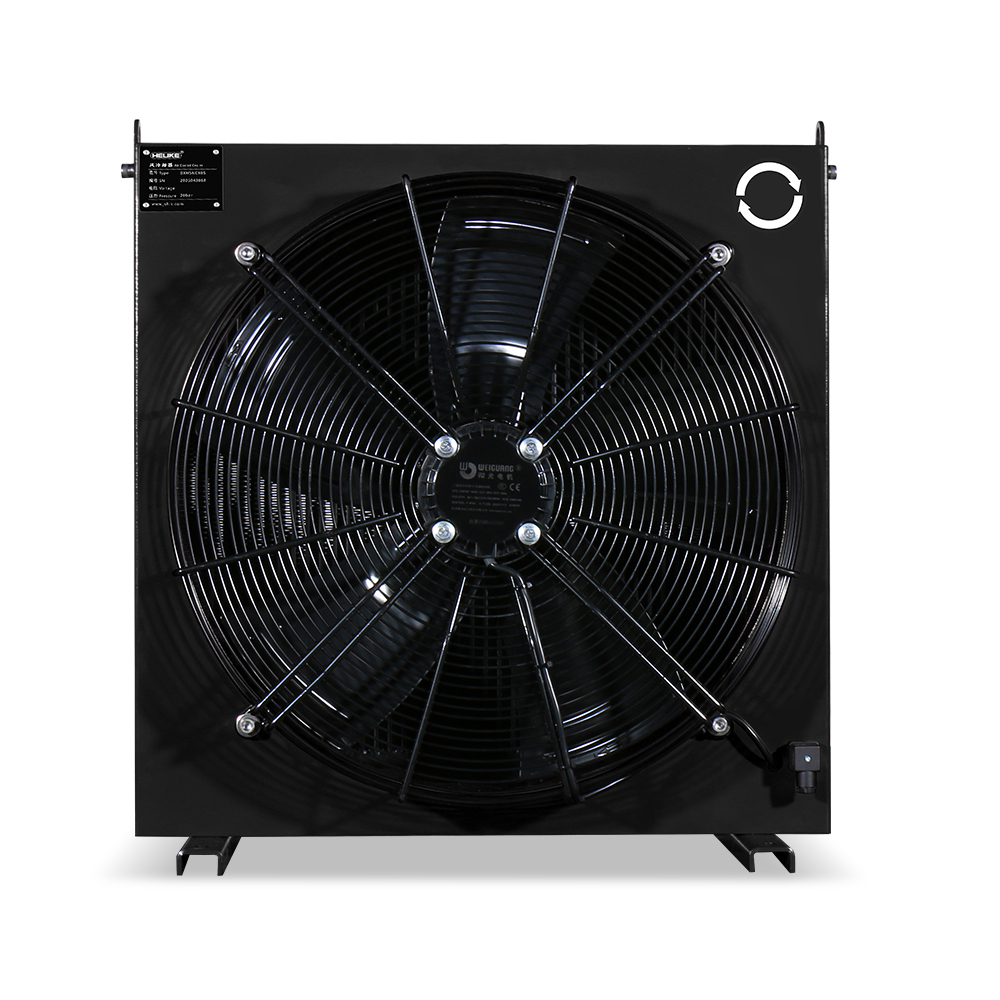

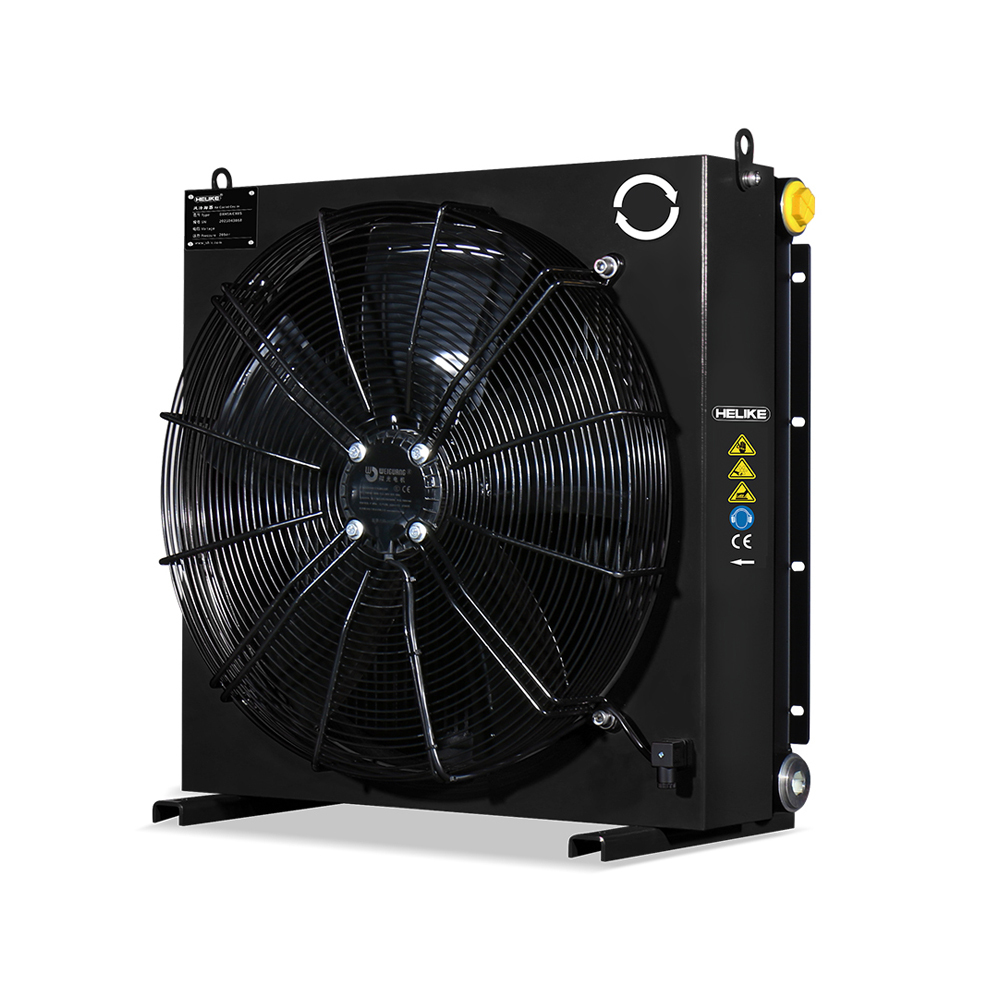

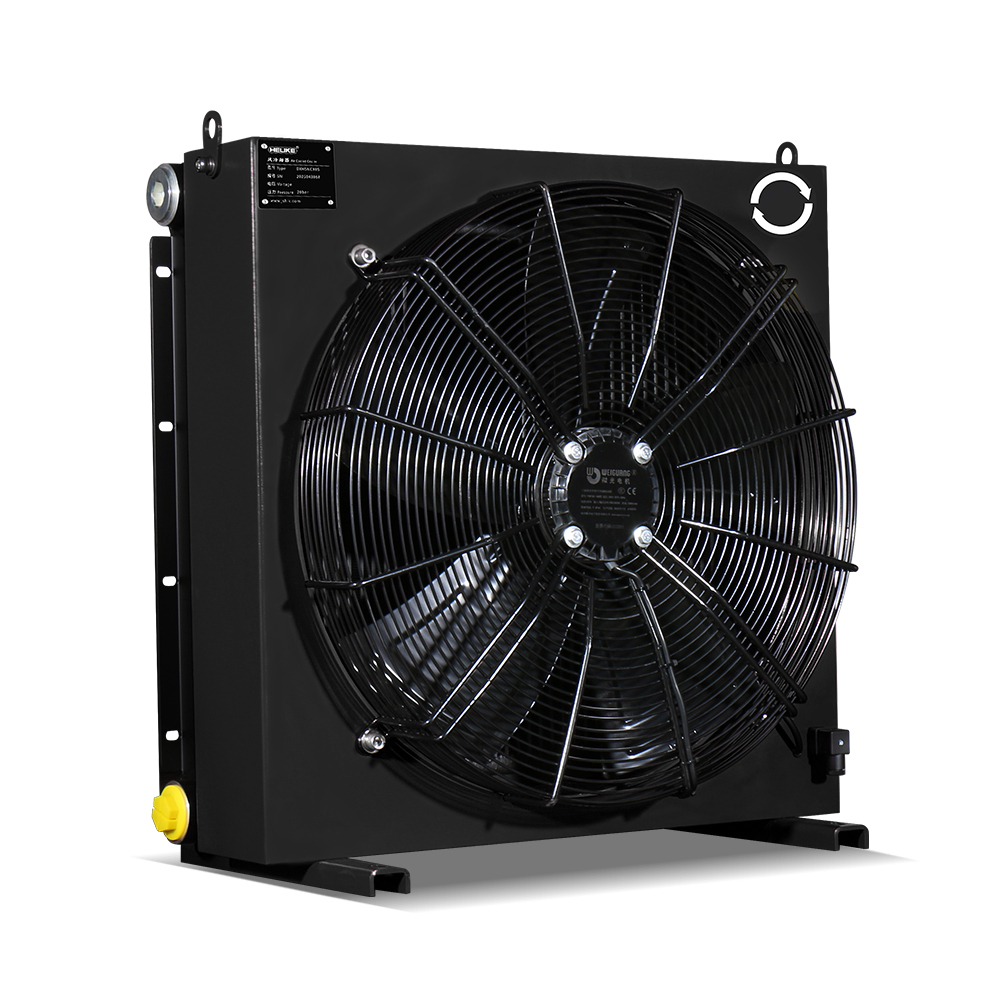

About DXC
Designed for vibration resistance and shock absorption, this product is specifically engineered for vehicle use. It features an integrated mounting foot, making it ideal for mobile machinery applications. It resists vibration and loosening, ensuring no leaks even during prolonged operation.

Modle data sheet

Model	DXC-2	DXC-3	DXC-4	DXC-5	DXC-6	DXC-7	DXC-8	DXC-9	DXC-10	DXC-11
Equivalent Cooling Power (KW/°C)	0.15	0.2	0.3	0.38	0.49	0.7	1.05	1.5	2	2.68
Rated Flow (L/min)	80	100	150	200	250	300	350	400	500	600
Max. Working Pressure (bar)	20	20	20	20	20	20*	20	20	20	20
Fan Power (W)	50/55	129/129	180/180	180/180	250/250	250/250	700/780	750/800	4×129	4×180
Working Voltage (V)	220/380	220/380	220/380	220/380	220/320	220/380	220/380	220/380	220/310	220/380
Inlet/Outlet Thread	G¾"	G1"	G1¼"	G1¼"	G1¼"	G1¼"	—	G1½"	G1½"	G1½"
Thermometric Thread	G3/8"	G3/8"	G3/8"	G3/8"	G3/8*	G3/8*	G3/8*	G3/8"	G3/8"	G3/8"
Noise Level (dB)	58	62	71	72	74	76	80	83	86	89
The noise value is measured at a distance of 1m from the cooler, which is only for referenceBecause it is affected by the surroundina environment,medium viscosity and reflection.

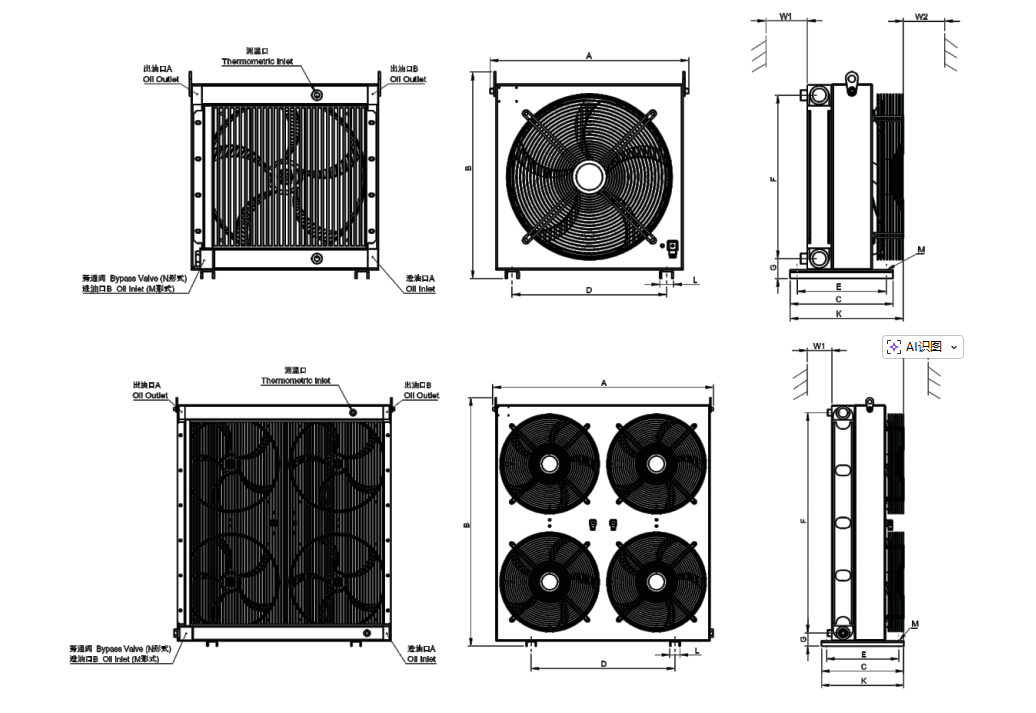

Dimensions

Model	DXC-2	DXC-3	DXC-4	DXC-5	DXC-6	DXC-7	DXC-8	DXC-9	DXC-10	DXC-11
A (±5)	365	425	530	585	630	630	750	835	970	1080
B (±5)	400	500	565	600	625	625	765	920	1060	1205
C (±2)	250	250	260	300	300	330	400	400	400	400
D (±2)	230	290	390	450	490	490	560	645	700	700
E (±2)	210	210	220	260	260	280	350	350	350	350
F (±5)	295	384	434	475	495	495	634	780	920	1070
G (±5)	45	50	55	55	55	55	55	60	60	60
K (±10)	240	280	310	330	330	350	390	465	380	400
L (±2)	40	40	40	40	45	45	45	50	50	50
M	12×18	12×18	12×18	12×18	14×22	14×22	14×22	14×22	14×24	14×22
W1	180	200	250	300	300	300	350	400	450	500
W2	360	400	500	600	600	600	700	800	900	1000

Product Description

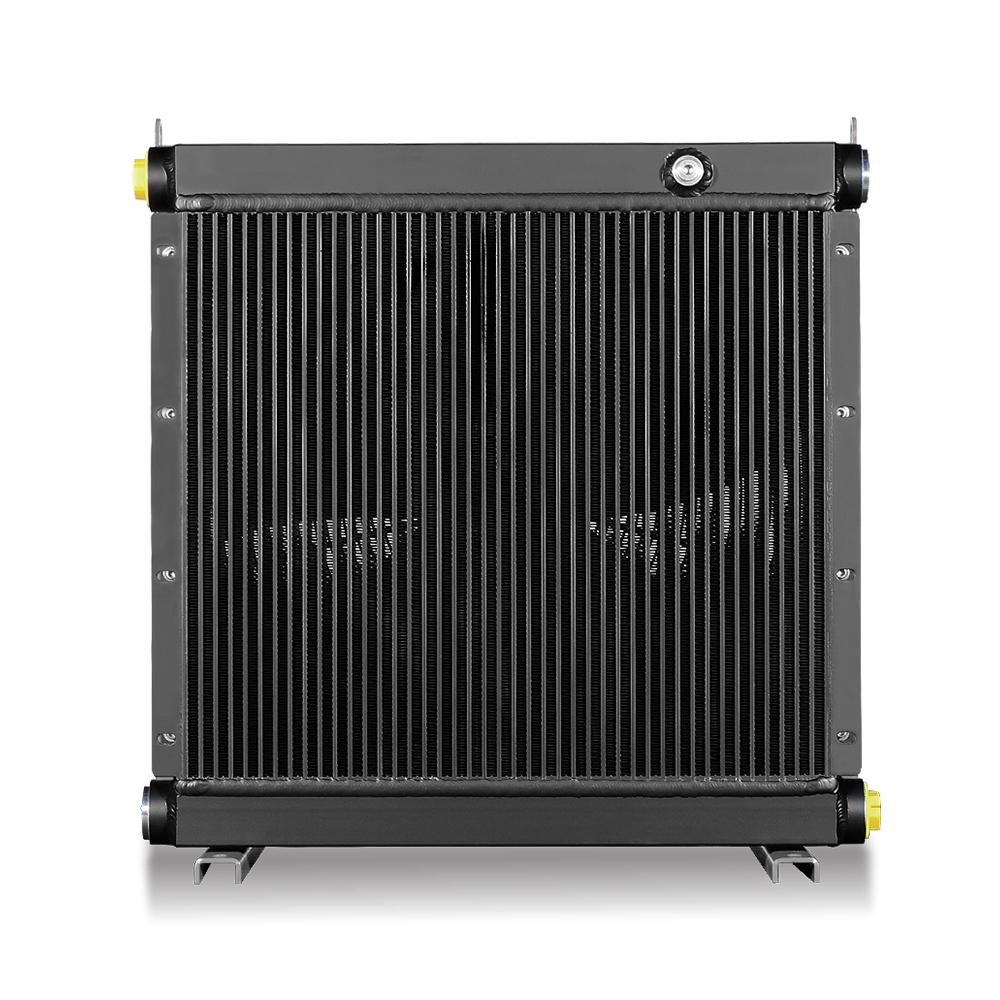

The DXC series of air-cooled hydraulic oil coolers is specifically designed for engineering vehicles. They feature a reinforced plate-fin vacuum brazed core, a reinforced and thickened frame, and integrally molded mounting feet designed for vehicle mounting. These coolers are resistant to impacts and vibrations, withstand frequent starts and stops, provide stable heat dissipation, and offer excellent sealing performance, making them ideal for harsh outdoor conditions and extended mobile operations.
Key Features & Technical Specifications

Integrated mounting feet, designed specifically for vehicle installation.
High resistance to shock, impact, and loosening; withstands vehicle vibrations.
All-aluminum alloy plate-fin core ensures stable heat exchange and minimizes oil leakage.
Compatible with fans of various voltages; features a protective frame for dust and impact resistance.
Robust construction, suitable for long-term outdoor use in mobile, heavy-duty applications.

Applications
Concrete mixers, dump trucks, truck-mounted cranes, sanitation vehicles, off-road construction machinery, mobile hydraulic systems, and vehicle-mounted hydraulic power units.

Packaging & Delivery

Secure Transit: Shipped in specialized, reinforced industrial-grade packaging to protect the heat exchanger fins and fan assembly during global transit.
Efficient Logistics: Factory-direct fulfillment from our production hubs, ensuring rapid lead times for both standard and custom configurations.
Export-Ready: Fully documented for international logistics, ensuring compliance with global customs and safety standards.

Certification & Quality Assurance

International Certification: CE Marked for European quality and safety compliance.
Quality Management: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management protocols.
Long-Term Performance: Engineered for a product lifespan of up to 10 years+, offering unmatched value and reliability.
Rigorous Testing: Every DXF unit undergoes high-pressure leakage and performance testing to ensure zero-failure operation.

Product FAQs
Q1：Can the DXC be used for extended periods of continuous operation?
A1：Yes. The unit features a vacuum-brazed fin-and-core assembly, which offers excellent sealing performance and high fatigue resistance. It is designed to withstand long-term outdoor operation, frequent starts and stops, and continuous all-weather operation, ensuring stable heat dissipation and preventing overheating.

Q2：What is the difference between the DXC and standard AH/AW coolers?
A2：The DXC features a reinforced, vibration-resistant structure and comes with integrated mounting feet, making it resistant to jolts, loosening, and oil leaks. Standard industrial models are only suitable for fixed machine tool hydraulic stations; they cannot withstand the vibrations of a moving vehicle and cannot be used as a substitute for the DXC mobile model.

Q3：Does installation require additional mounting brackets?
A3：No. The DXC comes with integrated standard mounting feet with universal mounting holes. Simply align and secure them in place for installation. It fits the stock mounting points on most commercial vehicles without the need for cutting or modification.

Q4：Can I customize the fan voltage for specific regions?
A4：Absolutely. We provide customized motor configurations (Voltage/Frequency) tailored to your local power grid standards.

The MEISON Advantage

Factory-Direct Expertise:
"Factory-Direct Expertise. Professionally Curated." — Leveraging over 20 years of manufacturing experience.

Global Trusted Partner:
With over 1,000,000 units sold to 6,000+ customers worldwide, we are your reliable partner in fluid control.
R&D Innovation: Backed by over 60 patented achievements and collaborative research with prestigious universities.
Cinematic Industrial Design: Our products reflect technical authority and precision, designed to build immediate customer trust through an international corporate image.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
