AL608T-CA Compact Air-Cooled Radiator Suitable for small and medium-sized hydraulic power units and small lubrication systems

Product Series (Grouping)： AL Series
Rated Flow: 20 L/min
Working Pressure: ≤ 0.8 MPa
Test Pressure: 1.2 MPa
Fan Power: 35 W
Fan Voltage: AC220V / AC380V
Net Weight: 2.2 kg
MOQ: 1 set

0.0 (0 Reviews)

0 Sold

$24.50

Received successfully

Coupon Code

Description

Product Specification

Parameter	Value
Heat Exchanger Type	Heat exchanger with fan
Model NO	AL608-CA
Rated Flow [L/min]	20
Working Pressure [Mpa]	0.8
Test Pressure [Mpa]	1.2
Fan Power [W]	35
Fan Voltage [V]	380V / 220V
Net Weight [kg]	2.2
Warranty	1 Year
Place of Origin	Guangdong, China
Brand Name	Dongxu
After-sales Service Provided	we will provide a replacement or spare parts for free
Fin Material	Aluminium alloy
Payment	T/T, L/C
Application	Cooling
Features	Quick cool, long life, durable
Usage	Cooling oil
ODM/OEM	Welcome

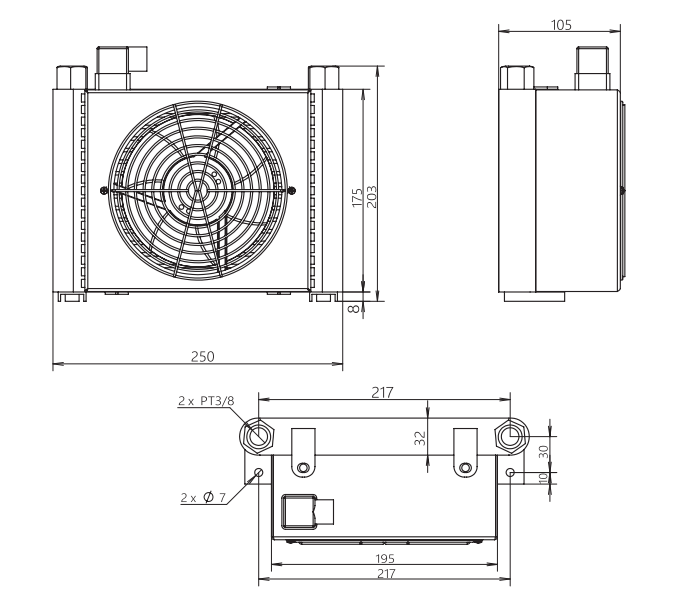

Dimensions

Product Description

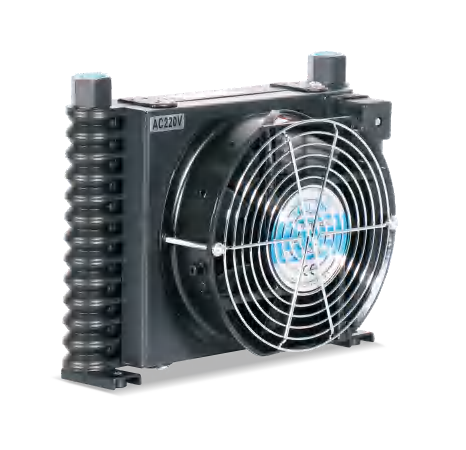

Title: AL0608T-CA Hydraulic Air Cooled Oil Cooler | Compact Industrial Cooling Solution
The AL0608T-CA (also recognized in technical catalogs as AL068T-CA) is a high-efficiency air-cooled oil cooler specifically designed for hydraulic and lubrication systems with precise flow requirements. It is a versatile choice for variable pump overflow ports or independent return oil cooling circuits. Built with a focus on space-saving without compromising performance, this model ensures your hydraulic fluids maintain an ideal temperature for peak machinery operation.

Key Features & Technical Specifications

Adopts aluminum plate-fin structure for high heat exchange efficiency.
Compact and lightweight design, easy to install and save space.
Good pressure resistance and leakproof performance, stable for low & medium pressure hydraulic systems.
Air cooling type, no water supply required for wider application.
Anti-corrosion & wear-resistant body, low noise during operation and long service life.
Wide compatibility, easy to match with various hydraulic equipment.

Application Scenarios
The AL0608T-CA is a strategic component for several key industrial sectors:

Variable Pump Cooling:

Managing overflow heat in variable displacement pump systems.

Independent Circuits:

Dedicated cooling for return oil lines in small hydraulic power packs.

Precision Machinery:

Temperature control for CNC lathes, light forging presses, and automation equipment.

Energy & Power:

Cooling solutions for power transformers and small-scale energy storage units.

Packaging & Delivery

Secure Transit: Shipped in specialized, reinforced industrial-grade packaging to protect the heat exchanger fins and fan assembly during global transit.
Efficient Logistics: Factory-direct fulfillment from our production hubs, ensuring rapid lead times for both standard and custom configurations.
Export-Ready: Fully documented for international logistics, ensuring compliance with global customs and safety standards.

Certification & Quality Assurance

CE Certified:

Meets all European Union safety, health, and environmental protection requirements for export.

Certified Quality Systems:

Manufactured under strict adherence to ISO9001, ISO14001, and ISO10012 management systems.

Long-Term Reliability:

Designed for a maximum service life of up to 10 years under proper maintenance.

The MEISON Advantage

Factory-Direct Expertise:

"Factory-Direct Expertise. Professionally Curated.". Established in 2002, we bring over two decades of manufacturing leadership to every product.

Proven Performance:

Trusted by over 6,000 customers with more than 1,000,000 units successfully deployed worldwide.

Innovation Leader:

Strategically partnered with top technical universities (e.g., Zhejiang University, Tsinghua University) to convert 60+ patents into high-performance products.

Cinematic Industrial Image:

Our products are designed to project technical authority and precision, supporting your brand's international corporate image.

Product FAQ

Q：Is the AL0608T-CA suitable for high-pressure return lines?
A：This model is rated for a working pressure of 0.8 MPa. For systems exceeding this pressure, we recommend our high-pressure AH series.

Q：Can this cooler be mounted in any orientation?
A：Yes, its compact design and stable build allow for flexible integration into your existing machinery layout.

Q：What voltages are available for the fan?
A：We standardly provide AC220V and AC380V options to match standard industrial grids.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
