Multi-gauge 4-head hydraulic pressure test kit, suitable for pressure testing and fault diagnosis of loaders, cranes, and heavy-duty construction machinery

Name: Multi-gauge 4-head hydraulic pressure test kit, suitable for pressure testing and fault diagnosis of loaders, cranes, and heavy-duty constru
Brand: We are MEISON, the international sales department of Dongxu Hydra
Price: 110 USD
Availability: InStock

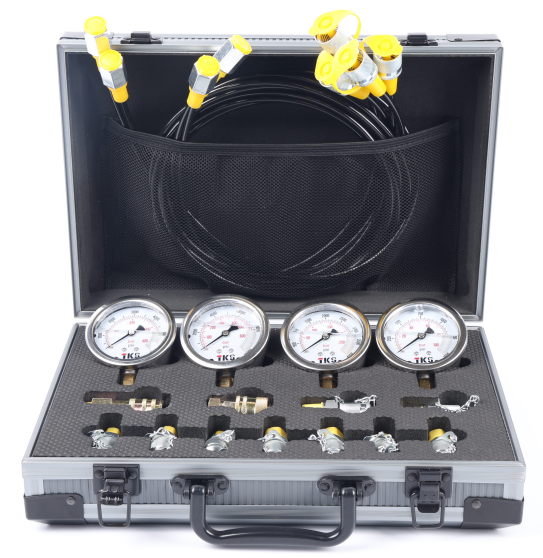

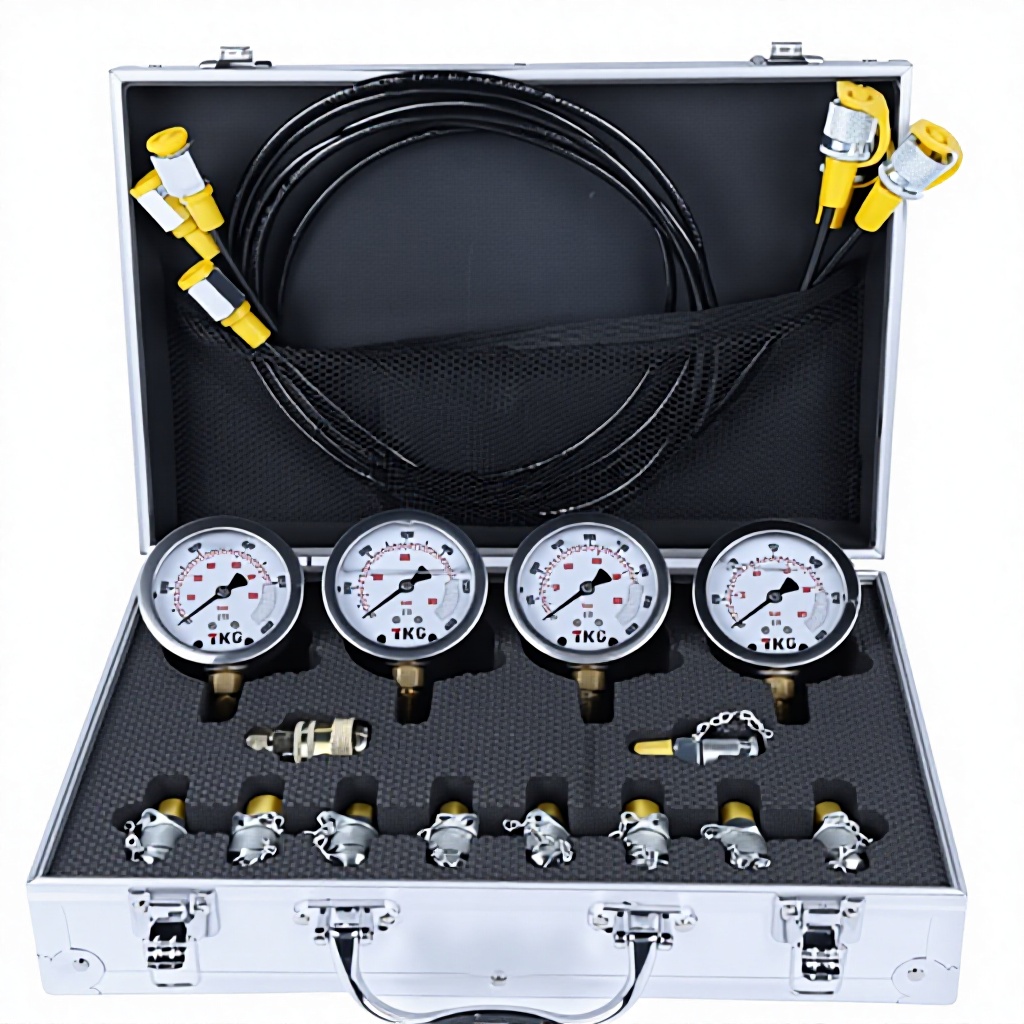

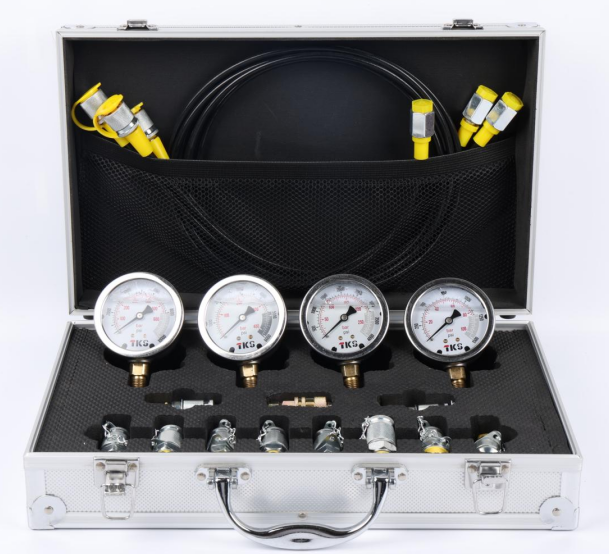

Short Description:Comprehensive pressure testing kit featuring four Ø63mm gauges (10/25/40/60 MPa), three 1.6-meter test hoses, ten test couplings covering G, R, M, and UNF threads, plus a Caterpillar (CAT) quick connector.

0.0 (0 Reviews)

0 Sold

$110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Silver Four-Port 11 Connector Product Specifications

Item	Description	Specification	Quantity
1	Pressure gauge	Ø63mm, 0-10MPa (10MPa / 100Kg/cm²)	1 piece
2	Pressure gauge	Ø63mm, 0-25MPa (25MPa / 250Kg/cm²)	1 piece
3	Pressure gauge	Ø63mm, 0-40MPa (40MPa / 400Kg/cm²)	1 piece
4	Pressure gauge	Ø63mm, 0-60MPa (60MPa / 600Kg/cm²)	1 piece
5	Test hose	Length = 1.6m	3 pieces
6	Test coupling	G1/8	1 piece
7	Test coupling	G1/4	1 piece
8	Test coupling	G3/8	1 piece
9	Test coupling	R1/4	1 piece
10	Test coupling	M10 × 1.0	1 piece
11	Test coupling	M10 × 1.25	1 piece
12	Test coupling	M14 × 1.5	1 piece
13	Test coupling	M12 × 1.5	1 piece
14	Test coupling	UNF 7/16-20	1 piece
15	Test coupling	UNF 9/16-18	1 piece
16	Quick connector	For Caterpillar (CAT)	1 piece
17	WEIGHT(kg)	3.2	1 piece
18	MEAS(cm)	3225.510	1 piece

Product Introduction
This professional 4-gauge hydraulic pressure test kit is engineered for comprehensive fault diagnosis and pressure monitoring in complex hydraulic systems of excavators, loaders, cranes, and heavy machinery. Unlike standard 3-gauge sets, the 4-gauge configuration provides extended range coverage, allowing technicians to test low-pressure pilot circuits, mid-range work systems, and high-pressure main pumps simultaneously. We offer three distinct aluminum case versions, each tailored to different compatibility needs and durability requirements.

Key Features

4-Dial Extended Range Coverage: These four pressure gauges are calibrated to cover low, medium, and high pressure ranges, enabling comprehensive testing of pilot circuits, control valves, and main pumps in a single operation.
Shock-Resistant Liquid-Filled Pressure Gauges: Each gauge is filled with damping fluid to minimize pointer oscillation, ensuring stable and accurate readings even under severe vibration.
High-Pressure Test Hoses with Quick Connectors: Enable fast and safe connection to hydraulic systems.
Custom Foam Pads: Ensure safe storage.

Applications

Pressure testing and fault diagnosis for excavators, loaders, bulldozers, cranes, and heavy construction machinery.
Troubleshooting of hydraulic pumps, main control valves, pilot circuits, and cylinder systems.
Preventive maintenance, system calibration, and on-site inspection for industrial equipment.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
