Professional Digital Hydraulic System Pressure Test Kit with Multi-Function Gauges for Heavy Equipment

Name: Professional Digital Hydraulic System Pressure Test Kit with Multi-Function Gauges for Heavy Equipment
Brand: We are MEISON, the international sales department of Dongxu Hydra
Price: 100 USD
Availability: InStock

Short Description:This kit includes 13 threaded adapters (R1/4, G1/4, G1/8, G3/8, UNF7/16, UNF9/16, M10×1.25, M14×1.5, M10×1, M16×15, M12×1.5, NPT1/4), one Caterpillar quick connector, 14 pressure test tee connectors (C, A, D, H series), and test hoses (360cm, 168cm×2, and 2m×3 with NPT1/4 threads). Compatible with digital gauges (NPT1/4 thread). Ideal for hydraulic pressure testing and system diagnostics.

0.0 (0 Reviews)

0 Sold

$100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

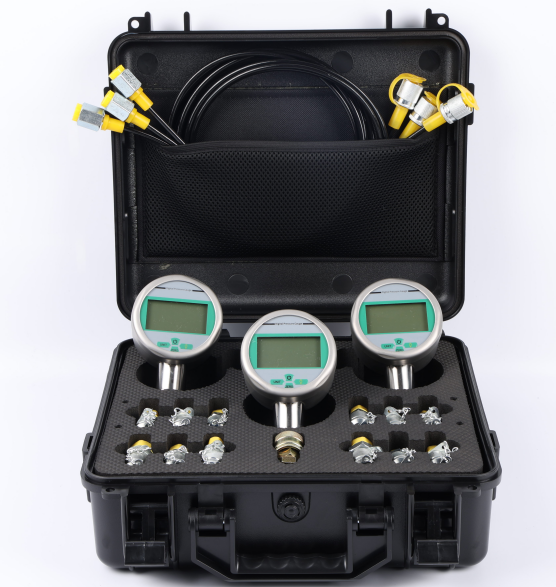

Digital Test Pressure Gauge with Dual-Layer Black Case: Product Specifications

Item No.	Description	Specification / Type	QTY
Adapters
1	Test coupling – R1/4	R1/4	1 PC
2	Test coupling – G1/4	G1/4	1 PC
3	Test coupling – G1/8	G1/8	1 PC
4	Test coupling – G3/8	G3/8	1 PC
5	Test coupling – UNF7/16	UNF7/16	1 PC
6	Test coupling – UNF9/16	UNF9/16	1 PC
7	Test coupling – M10×1.25	M10×1.25	1 PC
8	Test coupling – M14×1.5	M14×1.5	1 PC
9	Test coupling – M10×1	M10×1	1 PC
10	Test coupling – M16×1.5	M16×1.5	1 PC
11	Test coupling – M12×1.5	M12×1.5	1 PC
12	Test coupling – NPT1/4	NPT1/4	1 PC
Quick Connector
13	Caterpillar quick connector	—	1 PC
Pressure Test Tee Connectors
14	CKCK-18-14-18	Type 18C	1 PC
15	CFCF-06-14-06	Type 11/16 A	1 PC
16	CSCS-06-14-06	Type 3/8 C	1 PC
17	CBCB-06-14-06	Type 3/8 D	1 PC
18	CBCB-04-14-04	Type 1/4 D	1 PC
19	CSCS-04-14-04	Type 1/4 C	1 PC
20	CJCJ-06-14-06	Type 9/16 C	1 PC
21	CFCF-04-14-04	Type 9/16 A	1 PC
22	CKCK-14-14-14	Type 14 C	1 PC
23	CJCJ-04-14-04	Type 7/16 C	1 PC
24	CC-18-14-18	Type 18 H	1 PC
25	CC-16-14-16	Type 16 H	1 PC
26	CC-14-14-14	Type 14 H	1 PC
27	CC-22-22-22	Type 22 H	1 PC
Test Hoses
28	Test hose	Length 360 cm / 141 inch	1 PC
29	Test hose	Length 168 cm / 66 inch	2 PCS
30	High-pressure test hose	Length 2 m (NPT1/4 thread)	3 PCS

Comparison of Two Products

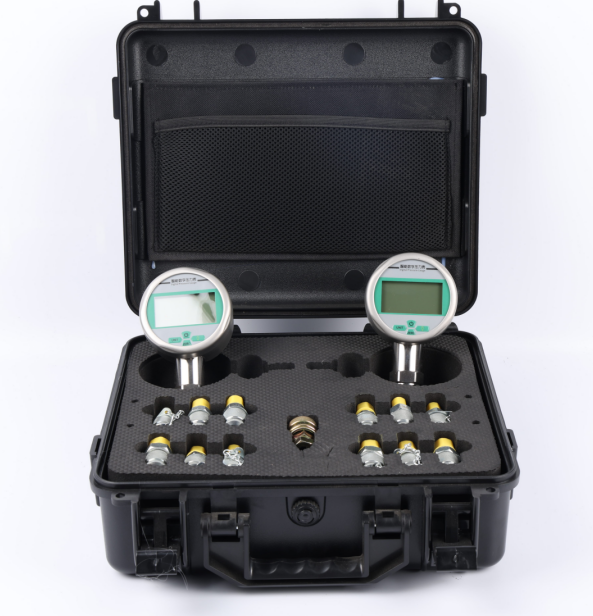

Item Description	Specification / Type	Digital Test Pressure Gauge, Double-Layer Black Case (Two Gauges), Batteries Not Included	Digital Test Pressure Gauge with Double-Layer Black Case
Adapters
Test coupling – R1/4	R1/4	1 PC	1 PC
Test coupling – G1/4	G1/4	1 PC	1 PC
Test coupling – G1/8	G1/8	1 PC	1 PC
Test coupling – G3/8	G3/8	1 PC	1 PC
Test coupling – UNF7/16	UNF7/16	1 PC	1 PC
Test coupling – UNF9/16	UNF9/16	1 PC	1 PC
Test coupling – M10×1.25	M10×1.25	1 PC	1 PC
Test coupling – M14×1.5	M14×1.5	1 PC	1 PC
Test coupling – M10×1	M10×1	1 PC	1 PC
Test coupling – M16×1.5	M16×1.5	1 PC	1 PC
Test coupling – M12×1.5	M12×1.5	1 PC	1 PC
Test coupling – NPT1/4	NPT1/4	1 PC	1 PC
Caterpillar quick connector	—	1 PC	1 PC
Pressure Test Tee Connectors
CKCK-18-14-18	Type 18C	1 PC	1 PC
CFCF-06-14-06	Type 11/16 A	1 PC	1 PC
CSCS-06-14-06	Type 3/8 C	1 PC	1 PC
CBCB-06-14-06	Type 3/8 D	1 PC	1 PC
CBCB-04-14-04	Type 1/4 D	1 PC	1 PC
CSCS-04-14-04	Type 1/4 C	1 PC	1 PC
CJCJ-06-14-06	Type 9/16 C	1 PC	1 PC
CFCF-04-14-04	Type 9/16 A	1 PC	1 PC
CKCK-14-14-14	Type 14 C	1 PC	1 PC
CJCJ-04-14-04	Type 7/16 C	1 PC	1 PC
CC-18-14-18	Type 18 H	1 PC	1 PC
CC-16-14-16	Type 16 H	1 PC	1 PC
CC-14-14-14	Type 14 H	1 PC	1 PC
CC-22-22-22	Type 22 H	1 PC	1 PC
Test Hoses
Test hose – 360 cm / 141 inch	—	1 PC	1 PC
Test hose – 168 cm / 66 inch	—	2 PCS	1 PC
High-pressure test hose – 2 m (NPT1/4 thread)	—	3 PCS	2 PCS

Product Introduction
This is a high-precision digital hydraulic pressure gauge set designed for construction machinery, available in 2-gauge and 3-gauge configurations. The digital readouts are intuitive and accurate, allowing for simultaneous monitoring of hydraulic circuit pressure and rapid identification of faults in pumps, valves, and cylinders. It is compatible with various hydraulic equipment, including excavators and loaders.

Key Features

High-precision digital display with unit conversion and peak hold functions; jitter-free readings and minimal error.
Available in 2-gauge and 3-gauge configurations with a variety of connectors to fit mainstream models.
Shock- and drop-resistant carrying case + high-pressure hose, suitable for complex on-site conditions.
One-touch quick pressure measurement significantly improves fault diagnosis efficiency.

Applications
Repair and Troubleshooting of Hydraulic Systems for Construction Equipment Such as Excavators, Loaders, and Forklifts.
Factory Commissioning and Post-Repair Calibration of Components Such as Hydraulic Pumps, Valves, and Cylinders.
Routine Equipment Maintenance and Predictive Maintenance to Identify Potential Issues Such as Wear and Leaks.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
