Hydraulic Pressure Test Gauge Kit Series - 3/4/5 Gauges for commissioning and pressure calibration of hydraulic pumps and manifold valves

Name: Hydraulic Pressure Test Gauge Kit Series - 3/4/5 Gauges for commissioning and pressure calibration of hydraulic pumps and manifold valves
Brand: We are MEISON, the international sales department of Dongxu Hydra
Price: 100 USD
Availability: InStock

Short Description:This kit includes four Ø63mm pressure gauges (ranges: 10, 25, 40, 60 MPa), three 1.6m test hoses, and a full set of adapters (G, R, NPT, M, UNF threads). Also features Caterpillar male connectors (7/16", 9/16"), 14×1.5H & 22×1.5H test couplings, and 14 types of tee connectors (C, A, H series). Ideal for hydraulic pressure testing on construction machinery.

0.0 (0 Reviews)

0 Sold

$100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

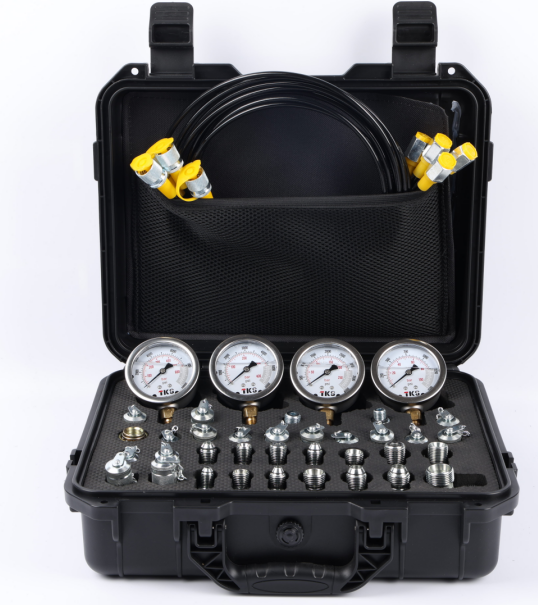

Single-Layer Four-Gauge 33-Connector Product Specifications

Item	Description	Specification	Quantity
Pressure Gauges (Ø63mm)
1	Pressure gauge	0–10 MPa (100 kg/cm²)	1 PC
2	Pressure gauge	0–25 MPa (250 kg/cm²)	1 PC
3	Pressure gauge	0–40 MPa (400 kg/cm²)	1 PC
4	Pressure gauge	0–60 MPa (600 kg/cm²)	1 PC
Test Hoses
5	Test hose	Length 1.6 m	3 PCS
Test Couplings (Threaded Adapters)
6	Test coupling – R1/4	R1/4	1 PC
7	Test coupling – G1/4	G1/4	1 PC
8	Test coupling – NPT1/4	NPT1/4	1 PC
9	Test coupling – M10×1	M10×1	1 PC
10	Test coupling – M10×1.25	M10×1.25	1 PC
11	Test coupling – M14×1.5	M14×1.5	1 PC
12	Test coupling – G1/8	G1/8	1 PC
13	Test coupling – G3/8	G3/8	1 PC
14	Test coupling – UNF7/16	UNF7/16	1 PC
15	Test coupling – UNF9/16	UNF9/16	1 PC
16	Test coupling – M12×1.5	M12×1.5	1 PC
17	Test coupling – M16×1.5	M16×1.5	1 PC
18	Test coupling – G1/2	G1/2	1 PC
Special Fittings
19	Carter fitting	—	1 PC
20	Caterpillar male connector	9/16"	1 PC
21	Caterpillar male connector	7/16"	1 PC
22	Test coupling – 14×1.5H	14×1.5H	2 PCS
23	Test coupling – 22×1.5H	22×1.5H	1 PC
Tee Connectors (1 pc each)
24	CKCK-18-14-18	Type 18C	1 PC
25	CFCF-06-14-06	Type 11/16 A	1 PC
26	CSCS-06-14-06	Type 3/8 C	1 PC
27	CBCB-06-14-06	Type 3/8 D	1 PC
28	CBCB-04-14-04	Type 1/4 D	1 PC
29	CSCS-04-14-04	Type 1/4 C	1 PC
30	CJCJ-06-14-06	Type 9/16 C	1 PC
31	CFCF-04-14-04	Type 9/16 A	1 PC
32	CKCK-14-14-14	Type 14 C	1 PC
33	CJCJ-04-14-04	Type 7/16 C	1 PC
34	CC-18-14-18	Type 18 H	1 PC
35	CC-16-14-16	Type 16 H	1 PC
36	CC-14-14-14	Type 14 H	1 PC
37	CC-22-22-22	Type 22 H	1 PC
38	WEIGHT(kg)	5.3	1 PC
39	MEAS(cm)	363012	1 PC

Product Introduction
This hydraulic pressure gauge set is an essential tool for construction machinery maintenance. Available in 3-, 4-, and 5-gauge configurations, it comes with high-pressure hoses and adapters, allowing you to perform independent hydraulic system pressure testing right out of the box. It quickly pinpoints faults in pumps, valves, and cylinders, resolving issues such as weak operation, stalling, and vibration, and meets all needs from routine maintenance to professional fault diagnosis.

Key Features

Available in multiple styles, with various combinations of 3, 4, or 5 gauges to suit different testing needs.
Comes with a sufficient number of connectors, compatible with most construction machinery, and highly versatile.
Oil-filled shock-resistant pressure gauges provide stable and accurate readings, withstanding complex on-site conditions.
Includes a built-in storage case for organized storage, making it portable and easy to store.
Can simultaneously monitor multiple hydraulic pressure lines, enabling quick troubleshooting of various system faults.

Applications
Commissioning and pressure testing of components such as hydraulic pumps, directional control valves, relief valves, and cylinders.
Simultaneous pressure measurement across multiple circuits to resolve complex issues such as abnormal pilot pressure, main pressure, and return pressure.
Routine maintenance and inspection of equipment to anticipate potential failures such as pump wear and line leaks.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
