Professional Digital Hydraulic Pressure Tester Kit with 2/3-inch Adapters, Suitable for Loader and Forklift Maintenance

Name: Professional Digital Hydraulic Pressure Tester Kit with 2/3-inch Adapters, Suitable for Loader and Forklift Maintenance
Brand: We are MEISON, the international sales department of Dongxu Hydra
Price: 100 USD
Availability: InStock

Short Description:High-pressure test hoses in various lengths (360 cm, 168 cm, and 2 m; 6 pieces total) Test connectors with various metric and imperial threads (G, R, M, and UNF; 17 pieces total) Brand-specific quick-connect fittings (CAT, CASE, John Deere, and Komatsu; 4 pieces total).

0.0 (0 Reviews)

0 Sold

$100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

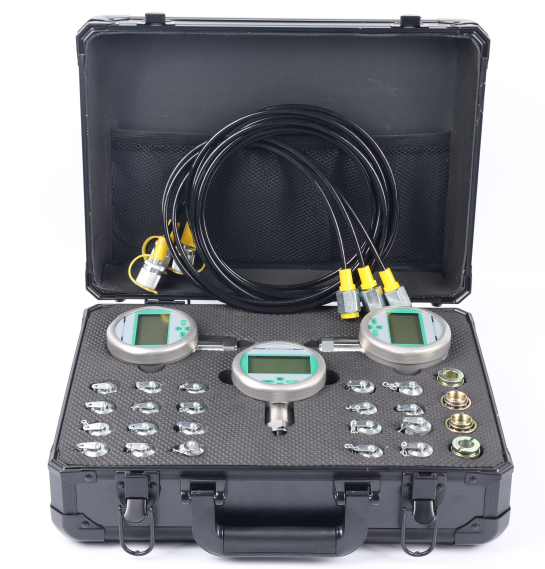

Digital Test Pressure Gauge (3-Gauge) Product Specifications

Category	Description / Specification	Qty
Test Hoses	Length: 360 cm / 141 inch	1 PC
	Length: 168 cm / 66 inch	2 PCS
	Length: 2 m	3 PCS
Test Couplings	G1/4	2 PCS
	G1/8	2 PCS
	G3/8	1 PC
	R1/4	1 PC
	R1/8	1 PC
	M8×1	1 PC
	M10×1	1 PC
	M10×1.25	1 PC
	M12×1.5	1 PC
	M14×1.5	1 PC
	M16×1.5	1 PC
	UNF 1/2-20	1 PC
	UNF 1/4-18	1 PC
	UNF 1/8-27	1 PC
	UNF 5/16-24	1 PC
	UNF 7/16-20	2 PCS
	UNF 9/16-18	1 PC
Quick Release Couplings	Quick connector B (compatible with Caterpillar CAT / CASE / John Deere)	2 PCS
	Quick connector (compatible with Komatsu)	2 PCS
WEIGHT(kg)	5.5	1 PC
MEAS(cm)	363012	1 PC

Comparison of Specifications

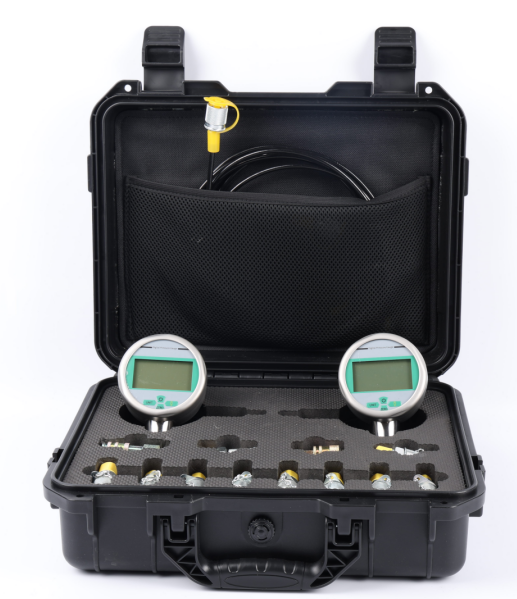

Component / Specification	Digital Test Pressure Gauge (2 units)	Digital Test Pressure Gauges (3 units)
Test Hoses
Hose – 360 cm / 141 inch	—	1 pc
Hose – 168 cm / 66 inch	—	2 pcs
Hose – 2 m	—	3 pcs
Quick Connectors
Quick connector for CAT (Caterpillar)	1 pc	2 pcs (B type, compatible with CAT/CASE/John Deere)
Quick connector for Komatsu	1 pc	2 pcs
Test Couplings (Threaded Adapters)
G1/8	1 pc	2 pcs
G1/4	1 pc	2 pcs
G3/8	1 pc (as "G/3")	1 pc
R1/4	1 pc	1 pc
R1/8	—	1 pc
NPT1/4	1 pc	—
M8×1	—	1 pc
M10×1	1 pc	1 pc
M10×1.25	1 pc	1 pc
M12×1.5	—	1 pc
M14×1.5	1 pc (as "14×1.5")	1 pc
M16×1.5	—	1 pc
UNF1/2-20	—	1 pc
UNF1/4-18	—	1 pc
UNF1/8-27	—	1 pc
UNF5/16-24	—	1 pc
UNF7/16-20	1 pc (as "UNF7/16")	2 pcs
UNF9/16-18	1 pc	1 pc

Product Introduction

This digital hydraulic pressure gauge set is a high-precision professional tool for diagnosing faults in hydraulic systems of construction machinery. Featuring a digital display, it provides real-time, accurate pressure readings with minimal error and intuitive display. The set is available in two configurations—2-gauge and 3-gauge—and comes with high-pressure hoses and adapters in various sizes, allowing for simultaneous monitoring of pressure across multiple hydraulic circuits to quickly identify issues such as pressure abnormalities, leaks, and valve sticking.

Key Features
High-Precision Digital Display: The digital pressure gauge provides accurate and stable pressure readings, supports unit conversion and peak value recording, and enhances diagnostic efficiency.
Multiple Configurations Available: Offered in 2-gauge and 3-gauge configurations, with 8–24 adapters to cover the pressure measurement ports of mainstream models, ensuring high versatility.
Safe and Durable: High-pressure, oil-resistant hoses + shock-resistant carrying case; connectors feature dust-proof caps; waterproof and shock-resistant design, suitable for complex environments such as construction sites and workshops.
Quick Diagnosis: One-touch connection to pressure ports for real-time system pressure readings, significantly reducing troubleshooting time and improving repair efficiency.

Applications
Construction Equipment Maintenance: Pressure testing and troubleshooting of hydraulic systems for excavators, loaders, bulldozers, forklifts, cranes, and other equipment.
Hydraulic System Calibration: Factory calibration and post-repair verification of components such as hydraulic pumps, directional control valves, relief valves, and cylinders.
Routine Maintenance and Inspection: Regular system pressure checks to anticipate potential issues such as pump wear, valve malfunctions, and line leaks, thereby reducing the risk of downtime.
Professional Fault Diagnosis: Multi-circuit simultaneous pressure measurement to precisely identify abnormalities in pilot pressure, main pressure, and return pressure, resolving complex issues such as weak operation, stalling, and vibration.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
