Energy-efficient bladder-type accumulators for hydraulic systems compliant with PED standards

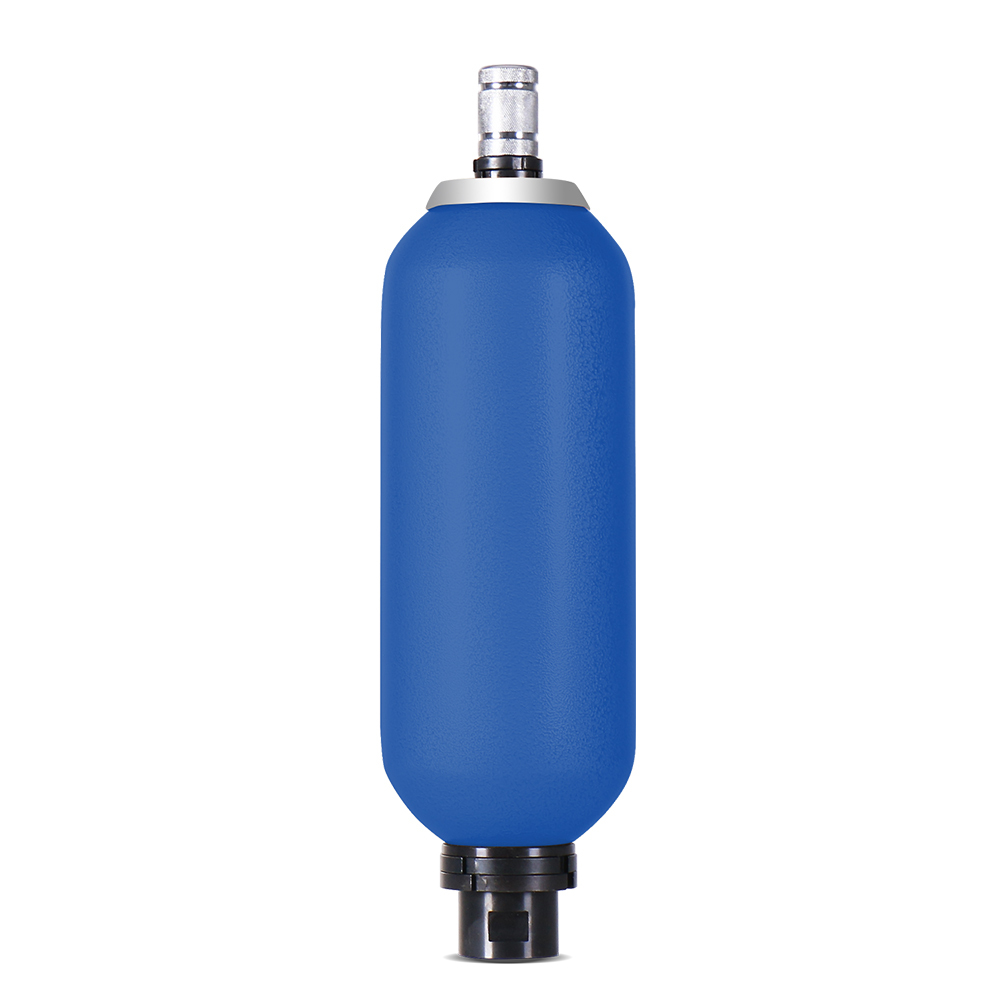

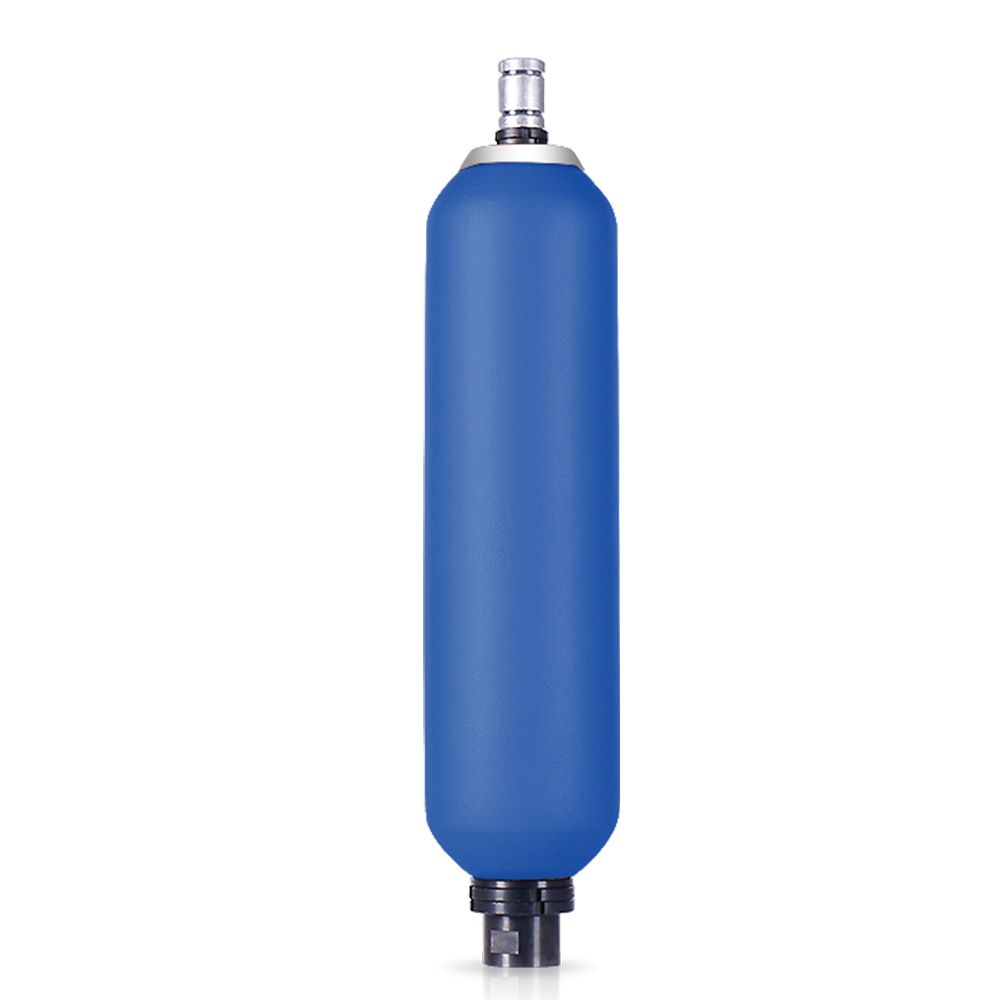

Name: Energy-efficient bladder-type accumulators for hydraulic systems compliant with PED standards
Brand: We are MEISON, the international sales department of Dongxu Hydra
SKU: PED Range Bladder Accumulator
Price: 350 USD
Availability: InStock

Nominal Volume

0.4L, 0.63L, 1L, 1.6L, 2.5L, 4L, 6.3L, 10L, 16L, 25L, 40L, 63L, 80L, 100L

Rated Pressure

16MPa, 21MPa, 25MPa, 33MPa

Working Pressure Scope

0.5MPa - 35MPa

0.0 (0 Reviews)

0 Sold

$350.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Product Introduction
Manufactured strictly in accordance with European industrial standards and PED pressure vessel regulations, this bladder accumulator uses high elastic rubber bladder to separate nitrogen gas and hydraulic oil. It realizes energy storage and release through gas compression and expansion, effectively stabilizing system pressure, absorbing hydraulic impact and saving energy, perfectly matching various EU-standard hydraulic equipment.

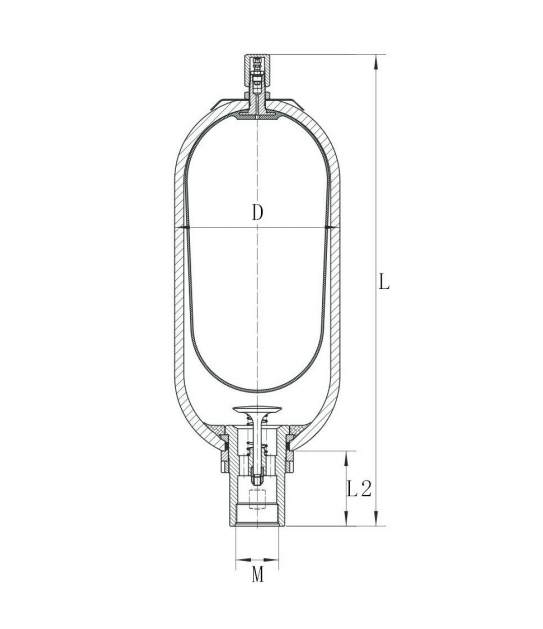

Product size drawing

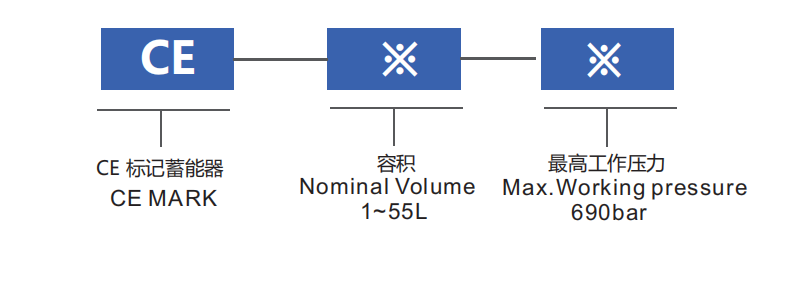

Order description

Type parameter list

Model No	Nominal Pressure	Nominal Volume (L)	D (mm)	L (mm)	L2 (mm)	M	Weight (kg)
CE 1/360	360 bar (36 MPa)	1	φ114	325	50	G3/4	5.5
CE 1.5/360		1.5		385			6.7
CE 3/360		3		570			10.3
CE 5/360		5	φ168	485	65	G1 1/4	17.3
CE 10/360		10	φ219	570	86	G2	34.0
CE 15/360		15		720			42.6
CE 20/360		20		880			52.0
CE 25/360		25		1045			61.0
CE 35/360		35		1395			81.9
CE 50/360		50		1905			110.9
CE-10/420	420 bar (42 MPa)	10	φ229	540	86	G2	36.5
CE-15/420		15		695			47.0
CE-20/420		20		850			58.0
CE-25/420		25		1015			71.0
CE-35/420		35		1370			100.0
CE-55/420		55		1980			128.0
CE-10/690	690 bar (69 MPa)	10	φ245	570	105	G2	64.0
CE-15/690		15		720			82.0
CE-20/690		20		840			101.0
CE-25/690		25		1015			118.0
CE-35/690		35		1400			154.0
CE-55/690		55		2010			237.0

Key Features

Comply with EU PED certification, fully meet European market safety standards
High-quality imported oil-resistant bladder, low air leakage rate and long service life
Fast pressure response, outstanding effect on shock absorption and pressure compensation
High-strength seamless steel cylinder body, pressure-resistant and durable
Adopt DIN standard ports, easy installation and universal matching
Stable performance, wide temperature adaptability, suitable for long-term continuous operation

Applications

Pressure Holding & Leakage Compensation: Injection molding machines, die-casting machines, hydraulic presses, and European standard industrial hydraulic stations.
Energy Saving & Peak Shaving: Reduce pump size and lower energy consumption for intermittent high flow demands in production lines.
Hydraulic Shock Absorption: Protect pumps, valves and pipes from pressure spikes in mining, construction and metallurgical equipment.
Emergency Power Supply: Backup energy for safety doors, brakes or critical actuators during power failure in automated systems.
Industrial Mobile Hydraulics: Cranes, loaders, excavators, forklifts, aerial work platforms and agricultural machinery.
General Industrial Hydraulics: Machine tools, automation equipment, logistics handling machinery and general hydraulic systems.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
