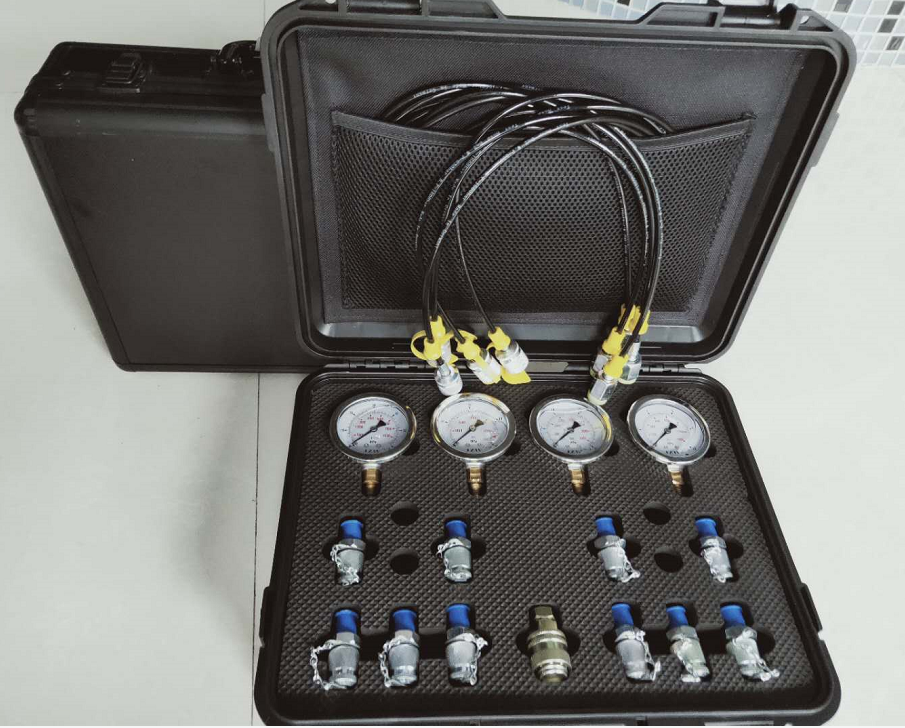

Hydraulic Pressure Test Gauge Kit (3/4/5 Gauges) with 10-24 Adapters for Excavators and Construction Machinery

Name: Hydraulic Pressure Test Gauge Kit (3/4/5 Gauges) with 10-24 Adapters for Excavators and Construction Machinery
Brand: We are MEISON, the international sales department of Dongxu Hydra
Price: 100 USD
Availability: InStock

Short Description:This high-pressure test kit includes three 63-mm-diameter pressure gauges (with ranges of 25 MPa, 40 MPa, and 60 MPa), three 1.6-meter-long test hoses, and a complete set of adapters covering G1/8, G1/4, G3/8, ZG1/4, M10, M14, UNF, and NPT thread specifications. In addition, the kit is equipped with quick-connect couplings suitable for Caterpillar, CASE, John Deere, Komatsu, and Hitachi machinery.

0.0 (0 Reviews)

0 Sold

$100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

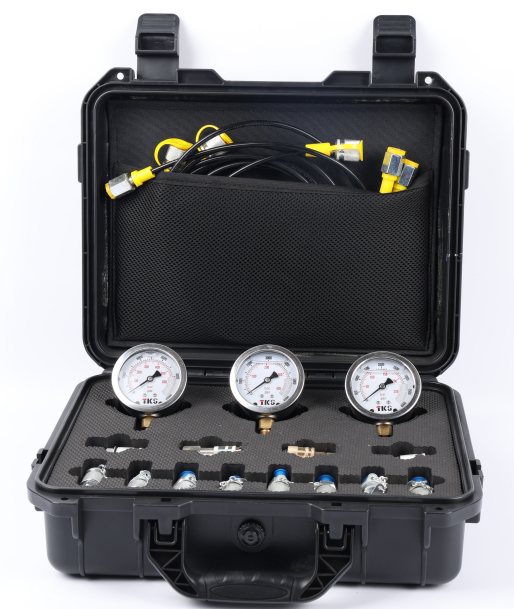

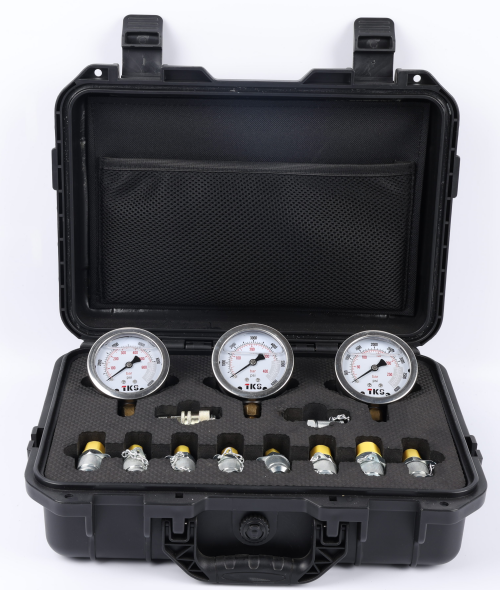

Product Specifications for the 3-Gauge Hydraulic Test Kit

Item	Description	Specification	Qty
1	Pressure gauge (Ø63mm) – 25MPa (250kg/cm²)	0-25MPa	1 PC
2	Pressure gauge (Ø63mm) – 40MPa (400kg/cm²)	0-40MPa	1 PC
3	Pressure gauge (Ø63mm) – 60MPa (600kg/cm²)	0-60MPa	1 PC
4	Test hose (Length 1.6m)	1.6m	3 PCS
5	Test coupling – G1/8	G1/8	1 PC
6	Test coupling – ZG1/4	ZG1/4	1 PC
7	Test coupling – G1/4	G1/4	1 PC
8	Test coupling – G3/8	G3/8	1 PC
9	Test coupling – M10×1.0	M10×1.0	1 PC
10	Test coupling – M10×1.25	M10×1.25	1 PC
11	Test coupling – M14×1.5	M14×1.5	1 PC
12	Test coupling – UNF7/16	UNF 7/16	1 PC
13	Test coupling – UNF9/16	UNF 9/16	1 PC
14	Test coupling – NPT1/4	NPT 1/4	1 PC
15	Quick connector B – for Caterpillar / CASE / John Deere (G1/4)	G1/4	1 PC
16	Quick connector C – for Komatsu / Hitachi (G1/8)	G1/8	1 PC
17	WEIGHT(kg)	3.45	1 PC
18	MEAS(cm)	363012	1 PC

Product Introduction
This hydraulic pressure gauge kit is a professional tool for diagnosing faults in construction machinery hydraulic systems. It includes pressure gauges in various sizes, high-pressure hoses, and compatible connectors, enabling precise measurement of pressure in critical components such as hydraulic pumps, main valves, cylinders, and pilot circuits. It quickly identifies issues such as abnormal pressure, leaks, and valve sticking, meeting all needs from entry-level maintenance to professional-grade fault diagnosis.

Key Features

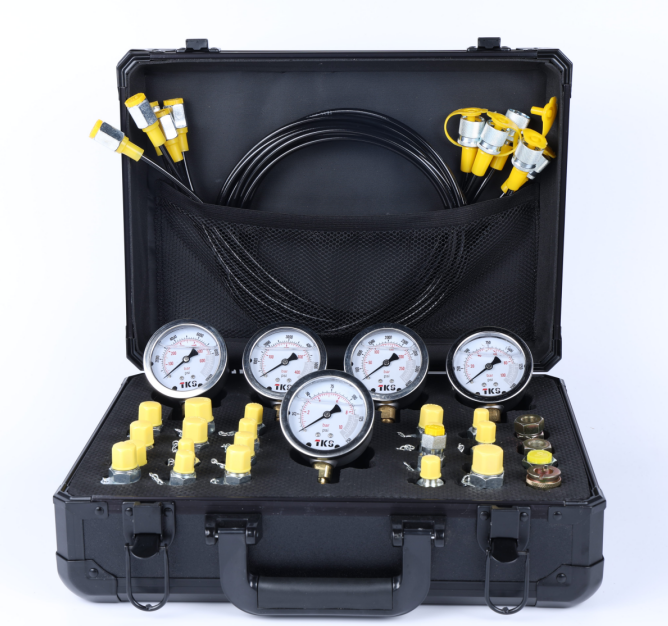

Multiple configurations available: Offered in 3-gauge and 5-gauge configurations, with 10–24 adapters to cover the pressure measurement ports of the vast majority of mainstream models, ensuring high versatility.
Accurate and stable: Oil-filled, shock-resistant pressure gauges provide clear and stable readings and withstand high-pressure shocks, making them suitable for use in complex environments such as construction sites and workshops.
Durable and portable: Equipped with high-pressure, oil-resistant hoses and a shock-resistant carrying case, the adapters feature dust-proof caps, making it convenient for outdoor operations and long-term storage.
Quick diagnosis: One-touch connection to pressure ports allows for real-time system pressure readings, significantly reducing troubleshooting time and improving repair efficiency.

Applications

Construction Equipment Maintenance: Pressure testing and troubleshooting of hydraulic systems for excavators, loaders, bulldozers, forklifts, and other equipment.
Hydraulic System Calibration: Factory calibration and post-repair verification of components such as hydraulic pumps, directional control valves, relief valves, and cylinders.
Routine Maintenance and Inspection: Regular system pressure checks to anticipate potential issues such as pump wear, valve malfunctions, and line leaks, thereby reducing the risk of downtime.
Professional Fault Diagnosis: Multi-circuit simultaneous pressure measurement to precisely identify abnormalities in pilot pressure, main pressure, and return pressure, resolving complex issues such as weak operation, stalling, and vibration.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
