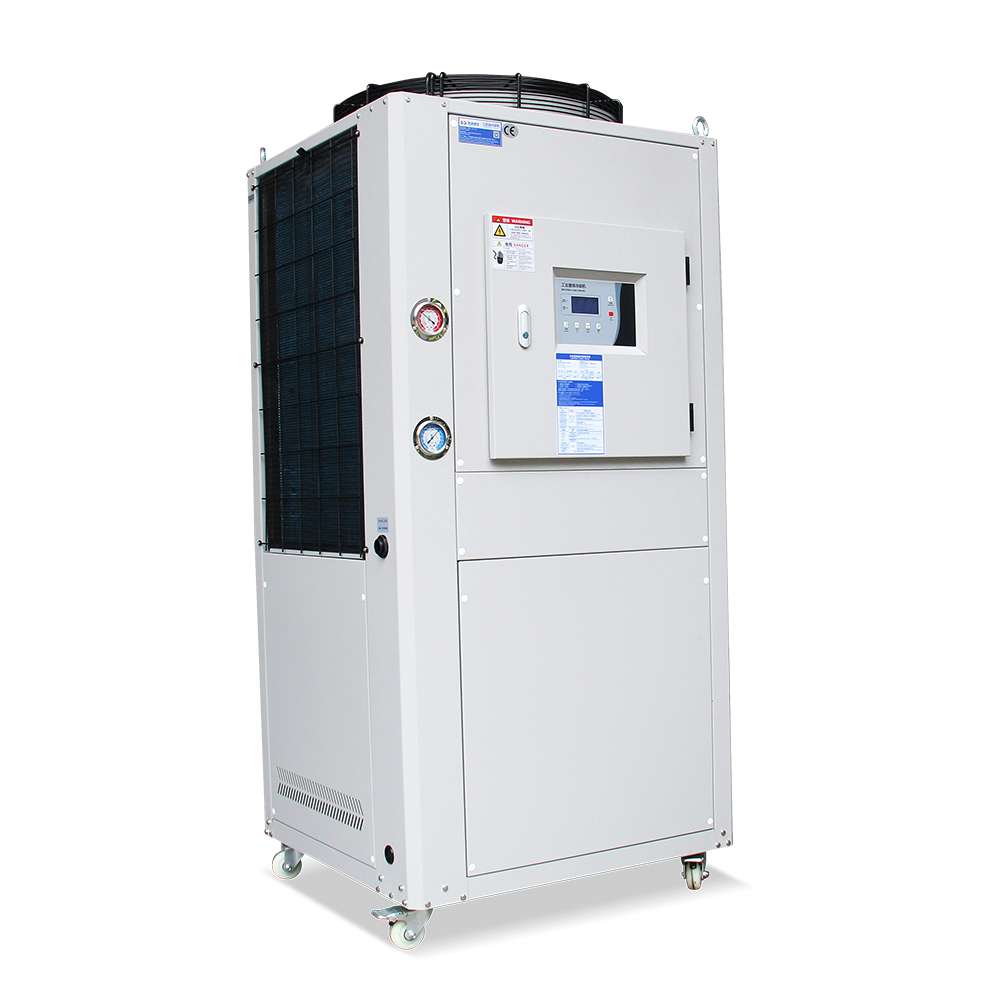

DXY-PA100 Oil-Cooled Chiller: 10 HP High-Power Compressor Cooling—Designed for Large Deep-Hole Drills and Large Machining Centers

Name: DXY-PA100 Oil-Cooled Chiller: 10 HP High-Power Compressor Cooling—Designed for Large Deep-Hole Drills and Large Machining Centers
Brand: We are MEISON, the international sales department of Dongxu Hydra
SKU: DXY-PA100
Price: 2970 USD
Availability: InStock

Product Description
Model: DXY-PA100
Cooling Capacity: 28.5kW (24000 kcal/h)
Power Supply: 3PH/AC380±10%50Hz
Temperature Control Range: 20–50 °C
Weight: 265 kg
Minimum Order Quantity: 1 set

0.0 (0 Reviews)

0 Sold

$2,970.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Parameter	Value
Model No	DXY-PA100
Cooling Capacity	28.5kW (24000 kcal/h)
Input Power	3PH/AC380±10%50Hz
Core Components	Compressor, condenser, oil pump, temperature control board
Mechanical Test Report	Available
Video Inspection Before Shipment	Available
Key Selling Point	High safety
Place of Origin	Guangdong, China
Weight (KG)	265
Brand Name	Dongxu
Temperature Control Range	20–50 °C
Dimensions (LWH)	830x820x1800mm
Oil Tank Capacity	50
After-sales Service Provided	we will provide a replacement or spare parts for free
Payment	T/T, L/C
Application	Cooling,Constant temperature
Features	Constant temperature, long service life, durable
Usage	Lubricating oil, hydraulic oil
ODM/OEM	Welcome
Warranty	12 Months

Product Introduction
The Dongxu DXY-PA100 is a high-power industrial oil-cooled chiller in the PA series, featuring strong cooling capacity. It is primarily used for centralized heat dissipation in large-scale processing equipment and hydraulic systems. The entire series offers a temperature control range of -20°C to 60°C and can operate in ambient temperatures ranging from -30°C to 55°C. The cooling capacity of the entire series ranges from 2.8 kW to 185 kW.

Product size drawing

SERIES	A	B	C	D	E	F	J	J1	G	H
DX-Y-PA50	1304	1510	700	830	104	505	159	200	Rc1-1/4" Fuel inlet	Rc1-1/4" Oil outlet
DX-Y-PA60	1392	1600	700	830	104	505	159	200	Rc1-1/4" Fuel inlet	Rc1-1/4" Oil outlet
DX-Y-PA70	1394	1600	800	830	104	655	166	200	Rc1-1/2" Fuel inlet	Rc1-1/2" Oil outlet
DX-Y-PA80	1559	1800	820	830	104	604	264	300	Rc1-1/2" Fuel inlet	Rc1-1/2" Oil outlet
DX-Y-PA100	1559	1800	820	830	104	604	264	300	Rc1-1/2" Fuel inlet	Rc1-1/2" Oil outlet

Key Features

High-Power Cooling Capacity: Designed specifically to meet the heat dissipation needs of medium- to large-scale industrial equipment with high heat generation.
Dual-Mode Intelligent Temperature Control: Features both constant-temperature mode and room-temperature synchronization modes, allowing users to select the appropriate option based on their actual needs.
Guaranteed by Imported Core Components: The unit utilizes renowned compressors imported from Europe, the United States, and Japan, ensuring reliable operation and high efficiency.
Multiple Safety Protections and Fault Alarms: Features real-time temperature monitoring with early warnings and alarms, and provides dry contact alarm terminals that can be daisy-chained to industrial equipment for interlocking.
Oil Maintenance Capabilities: Prevents changes in oil temperature from affecting the precision of machining during operation.
Wide operating range: Compatible with various coolants, including water, ethylene glycol, hydraulic oil, and lubricating oil; supports multiple environmentally friendly refrigerants such as R410A, R32, and R290.

Applications
Suitable for oil temperature control in 10,000-ton-class forging presses, large-scale heavy-duty die-casting units, and complete rubber and plastic vulcanization and extrusion equipment; as well as for maintaining constant temperature in hydraulic systems of large-scale construction machinery used in ports and mines.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
