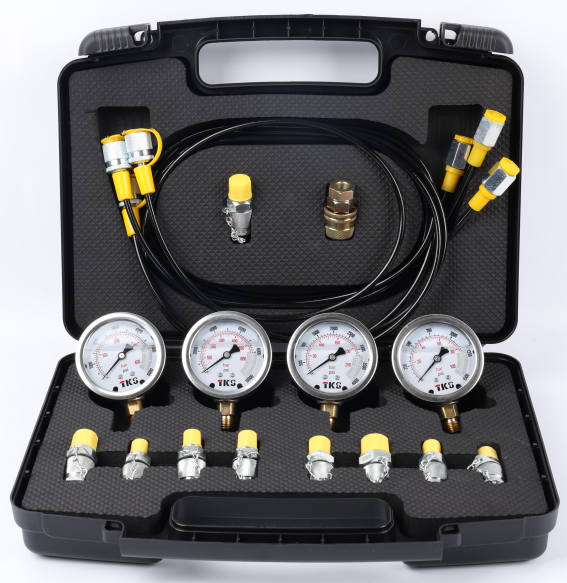

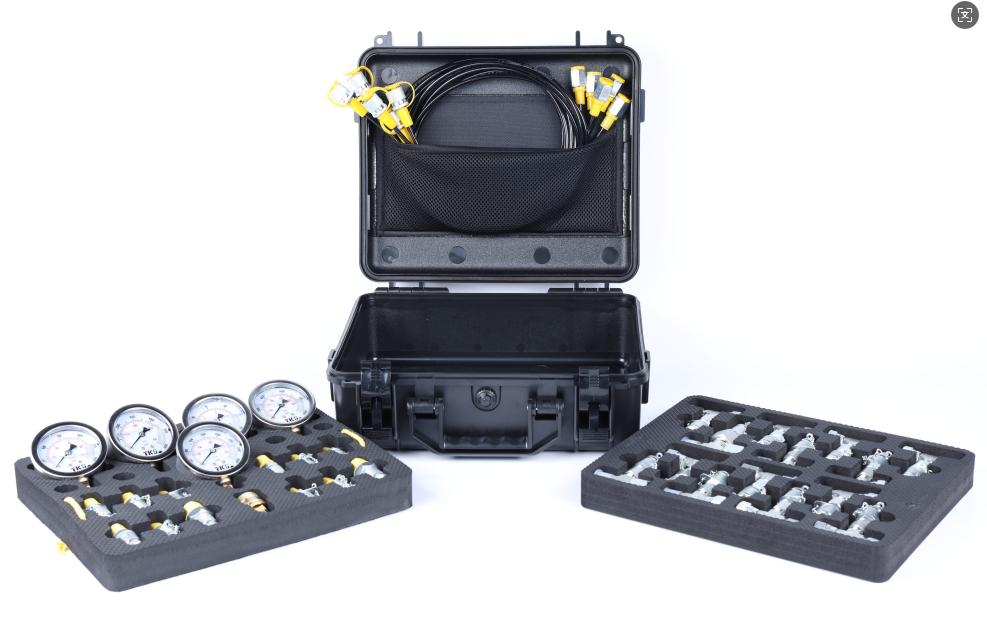

4-Gauge Hydraulic Test Kit (General-Purpose Version) and ABS System Test Version, suitable for pressure testing in automotive and construction machinery

Name: 4-Gauge Hydraulic Test Kit (General-Purpose Version) and ABS System Test Version, suitable for pressure testing in automotive and constructi
Brand: We are MEISON, the international sales department of Dongxu Hydra
Price: 120 USD
Availability: InStock

Short Description:This kit includes four Ø63mm pressure gauges (0–10 MPa, 0–25 MPa, 0–40 MPa, 0–60 MPa), three 1.6m test hoses, nine test couplings (G1/8, G1/4, G3/8, M10×1, M10×1.2, M12×1.5, M14×1.5, UNF 7/16-20, UNF 9/16-18), and one quick connector for Caterpillar (CAT). Suitable for multi-range pressure testing and connection with various thread types.

0.0 (0 Reviews)

0 Sold

$120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Item	Description	Specification	Quantity
1	Pressure gauge	Ø63mm, 0-10MPa (25MPa / 250Kg/cm²)	1 piece
2	Pressure gauge	Ø63mm, 0-25MPa (25MPa / 250Kg/cm²)	1 piece
3	Pressure gauge	Ø63mm, 0-40MPa (40MPa / 400Kg/cm²)	1 piece
4	Pressure gauge	Ø63mm, 0-60MPa (25MPa / 250Kg/cm²)	1 piece
5	Test hose	Length = 1.6m	3 pieces
6	Test coupling	G1/8	1 piece
7	Test coupling	G1/4	1 piece
8	Test coupling	G3/8	1 piece
9	Test coupling	M10 × 1.0	1 piece
10	Test coupling	M10 × 1.2	1 piece
11	Test coupling	M12 × 1.5	1 piece
12	Test coupling	M14 × 1.5	1 piece
13	Test coupling	UNF 7/16-20	1 piece
14	Test coupling	UNF 9/16-18	1 piece
15	Quick connector	For Caterpillar (CAT)	1 piece
16	WEIGHT(kg)	3	1 piece
17	MEAS(cm)	35.528.510	1 piece

Product Introduction
This is a versatile hydraulic pressure test kit designed for precise pressure measurement and troubleshooting in hydraulic systems. Equipped with four multi-range pressure gauges (covering low, medium, and high pressure), it enables comprehensive system testing. Compatible with most industrial hydraulic systems, it includes a complete set of test hoses, adapters, and fittings for quick connection to standard hydraulic ports. The kit comes with a heavy-duty carrying case for safe storage and easy transport.

Key Features

High Precision & Reliability:Industrial-grade pressure gauges with clear scales and stable readings
Leak-Proof Connection:High-pressure test hoses with quick couplings for secure, no-leak connections
Wide Compatibility:Universal adapters fit most common hydraulic and brake system ports
Durable Construction:Shock-resistant gauges and corrosion-resistant fittings for long service life
Portable & Organized:Hard-shell ABS protective case with foam cutouts to keep all parts organized

Applications
General Hydraulic Systems: Hydraulic pumps, cylinders, valves, excavators, loaders, cranes, injection molding machines, hydraulic presses.
Automotive ABS Systems: Cars, trucks, buses, and construction machinery brake system diagnosis and maintenance.
Industrial Maintenance: Pressure troubleshooting in manufacturing lines, mining equipment, and metallurgical machinery.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
