3-gauge, 9-port hydraulic pressure test kit, suitable for general-purpose hydraulic pressure testing on excavators and construction machinery

Name: 3-gauge, 9-port hydraulic pressure test kit, suitable for general-purpose hydraulic pressure testing on excavators and construction machiner
Brand: We are MEISON, the international sales department of Dongxu Hydra
Price: 100 USD
Availability: InStock

Short Description:Kit includes three Ø63mm pressure gauges (25/40/60MPa), three 1.6m test hoses, eight test couplings (G1/8, G1/4, G3/8, M10×1, M10×1.25, M14×1.5, UNF 7/16-20, UNF 9/16-18), and one CAT quick connector – ideal for hydraulic pressure testing.

0.0 (0 Reviews)

0 Sold

$100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

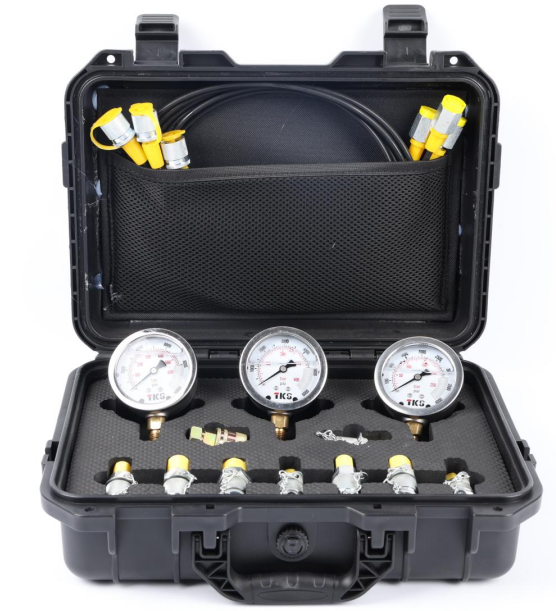

Product Specifications for the Black Triple-Dial 9-Head Model

Item	Description	Specification	Quantity
1	Pressure gauge	Ø63mm, 0-25MPa (25MPa / 250Kg/cm²)	1 piece
2	Pressure gauge	Ø63mm, 0-40MPa (40MPa / 400Kg/cm²)	1 piece
3	Pressure gauge	Ø63mm, 0-60MPa (60MPa / 600Kg/cm²)	1 piece
4	Test hose	Length = 1.6m	3 pieces
5	Test coupling	G1/8	1 piece
6	Test coupling	G1/4	1 piece
7	Test coupling	G3/8	1 piece
8	Test coupling	M10 × 1.0	1 piece
9	Test coupling	M10 × 1.25	1 piece
10	Test coupling	M14 × 1.5	1 piece
11	Test coupling	UNF 7/16-20	1 piece
12	Test coupling	UNF 9/16-18	1 piece
13	Quick connector	For Caterpillar (CAT)	1 piece
14	WEIGHT(kg)	3.5	1 piece
15	MEAS(cm)	352512	1 piece

Product Introduction

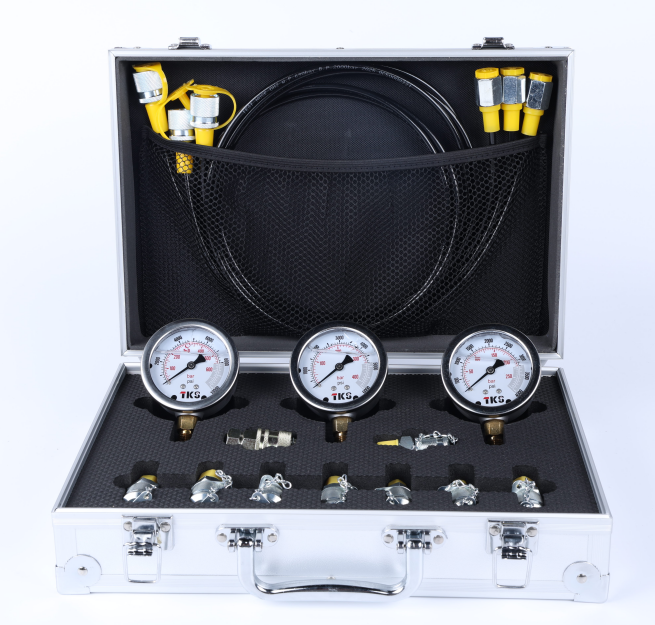

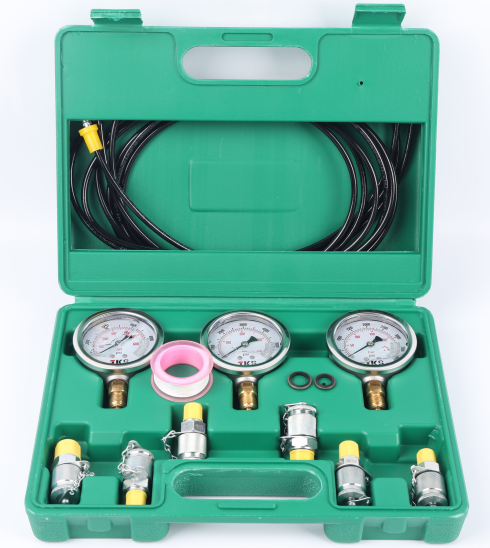

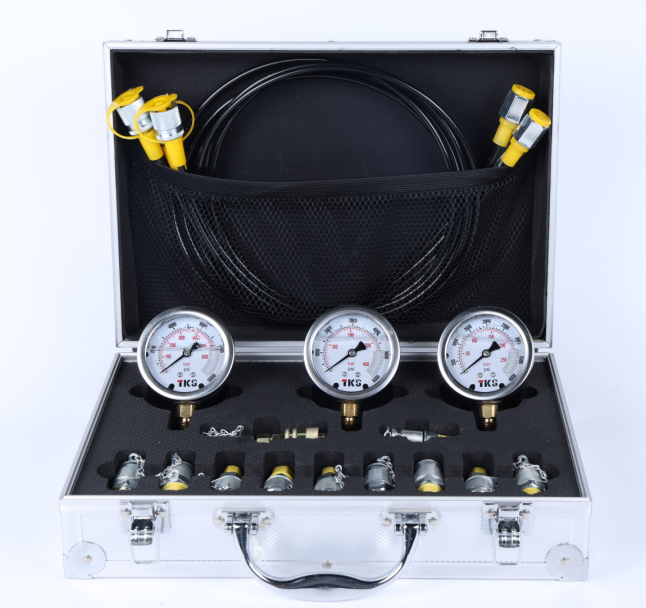

This is a professional 3-gauge hydraulic pressure test kit, designed for accurate pressure measurement and fault diagnosis in hydraulic systems of excavators, loaders, cranes, and other construction machinery. It helps technicians quickly locate issues in pumps, main valves, cylinders, and pipelines. We offer three versions with different adapter counts and cases to meet varying compatibility and budget needs.

Key Features

3-Gauge Multi-Range Design：Covers low, medium and high pressure ranges, meeting all common hydraulic system testing requirements.
Liquid-Filled Shockproof Gauges：Anti-vibration design ensures stable, accurate readings even under harsh vibration conditions.
Leak-Proof High-Pressure Hoses：Heavy-duty test hoses with quick couplings, safe and reliable for long-term use.
Organized & Portable：Custom foam cutouts keep all components neatly stored, easy to carry to job sites.
Wide Compatibility：Adapters fit most excavators, loaders, bulldozers, cranes and other construction machinery brands.

Applications

Pressure testing and troubleshooting for excavators, loaders, cranes, bulldozers, and other construction machinery
Diagnosis of hydraulic pumps, control valves, cylinders, and complete hydraulic circuits
Workshop maintenance, on-site inspection, and preventive maintenance for hydraulic systems.

Packaging & Delivery

Secure Industrial Protection: Each cooler is individually packaged in reinforced, shock-absorbent crating to protect the cooling core and fittings during transit.
Global Fulfillment: Factory-direct dispatch with optimized logistics support to reach industrial hubs in Europe, North America, and Asia with minimal lead time.
Documentation Ready: Provided with full technical and export documentation to ensure hassle-free customs clearance and installation.

Certification & Quality Assurance

Global Standards: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management systems.
Long-Term Reliability: Engineered for an operational lifespan of 10+ years, providing a foundation of stability for your heavy-duty machinery.
Rigorous Integrity Testing: Every DC unit undergoes comprehensive pressure-testing to ensure leak-free operation and structural durability under load.

The MEISON Advantage

Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of manufacturing leadership in hydraulic components.
Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with your B2B customers.

FAQs

（Frequently Asked Questions）

You are manufacturer or trading company?

We are a direct manufacturer, Dongxu Hydraulic Machinery Co., Ltd.
This means you get the most competitive factory price and direct technical support. There are no middlemen or traders involved. You are welcome to visit our factory at any time.

Can I have OEM service and put my logo on products or packaging?

Yes, OEM service is available. We offer customized solutions including brand logo printing, custom color painting, special thread types (G/BSPT/NPT), and SAE flange connections. Your brand identity is respected .

What is the lead time for this model?

It depends on the quantity. Shipment typically occurs within 10–15 business days after order confirmation. For large OEM orders, please contact us for confirmation.

What warranty services do you offer?

We offer a 12-month comprehensive warranty. In addition, we provide extended warranty and maintenance packages.
