About Star-shaped elastic coupling (GR)

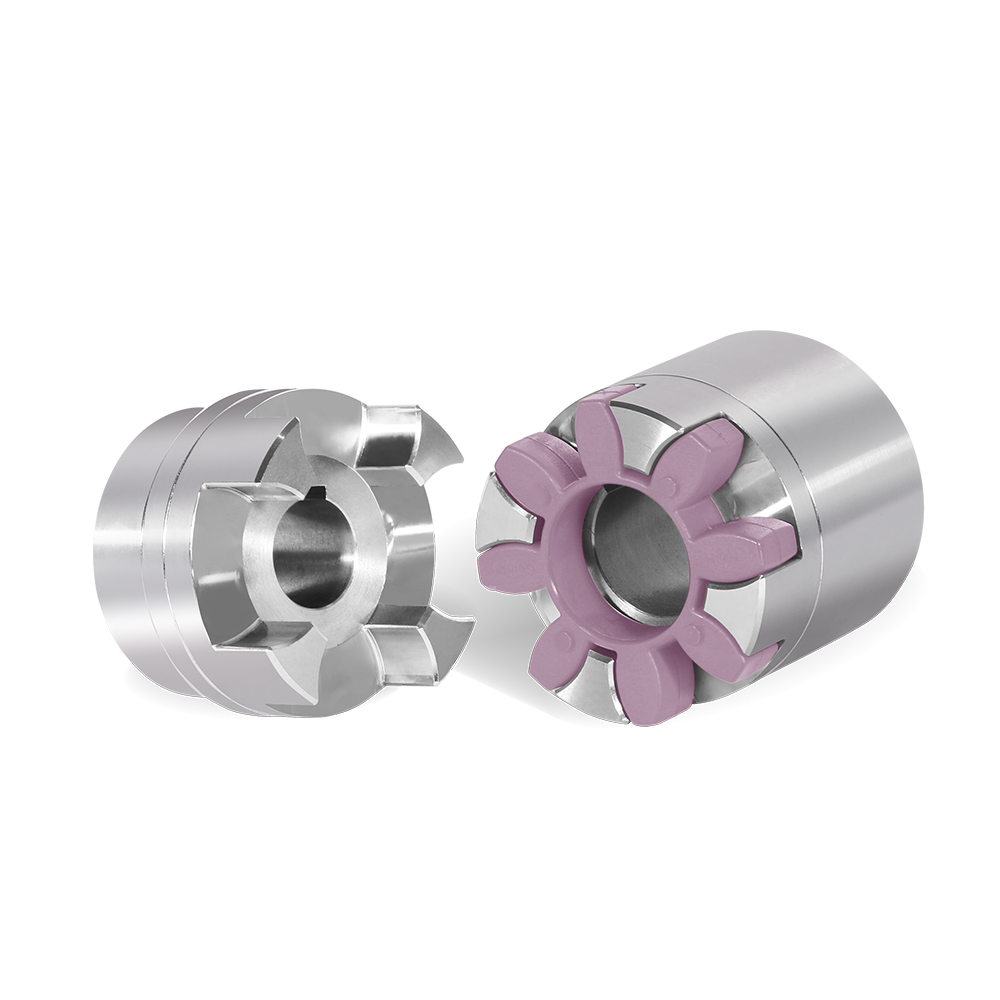

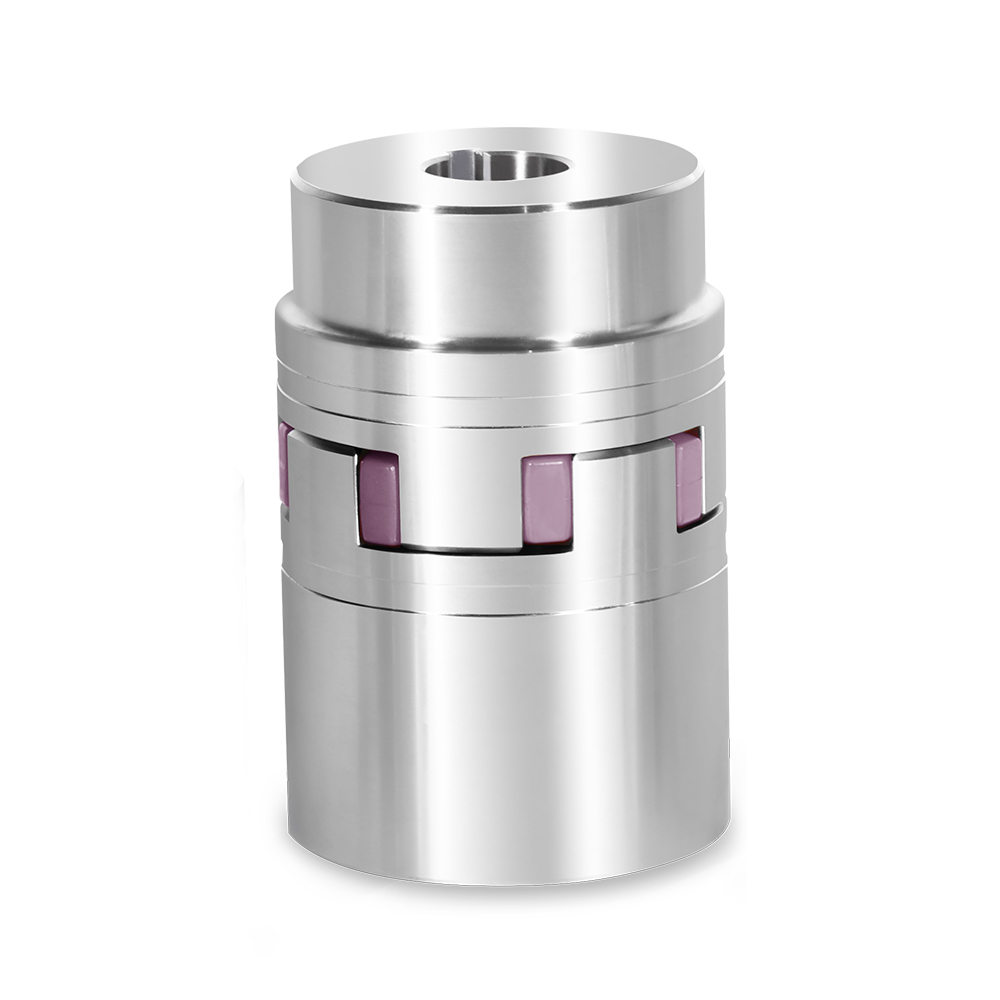

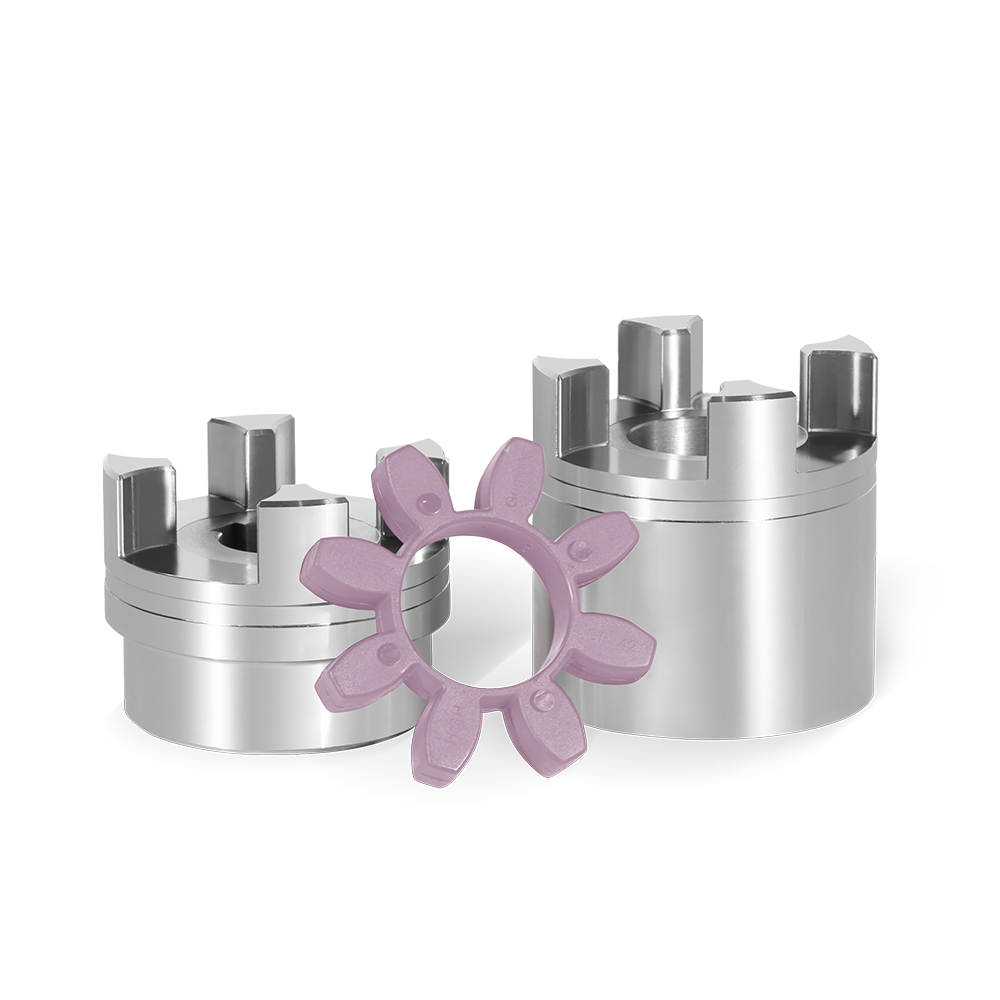

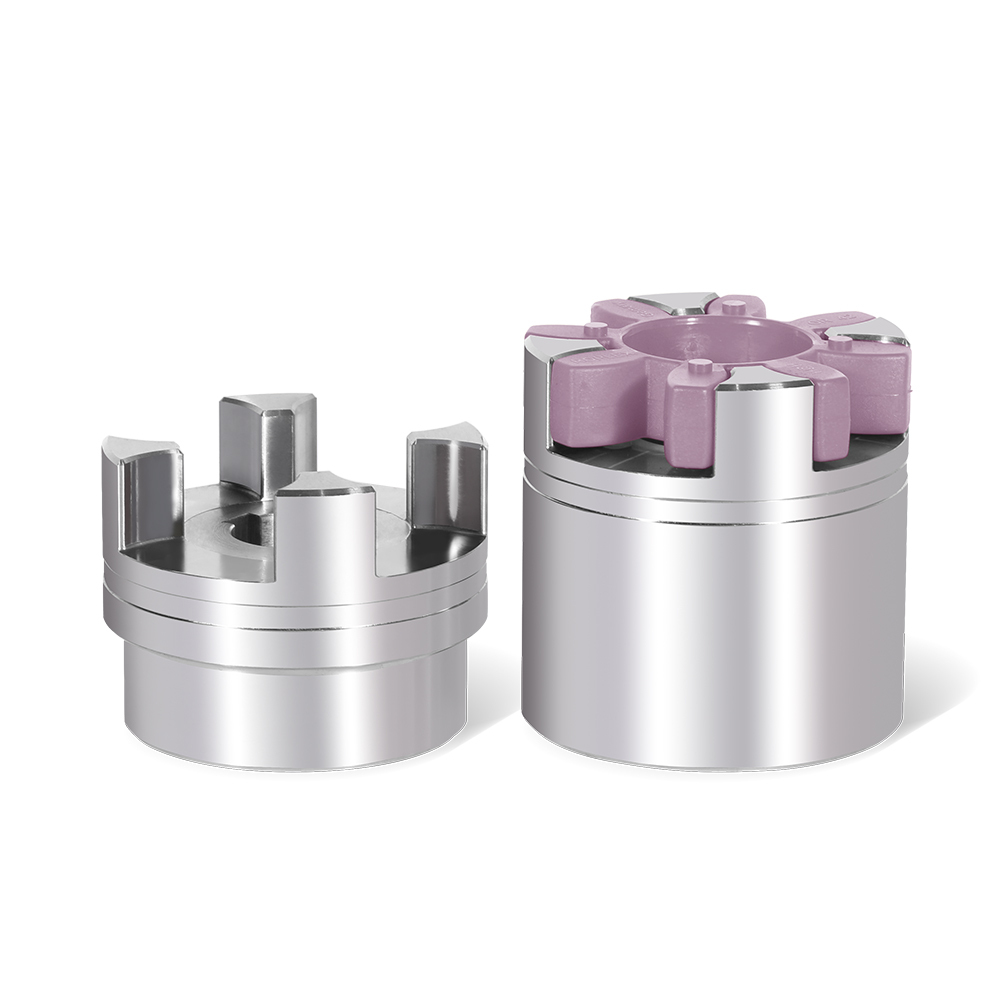

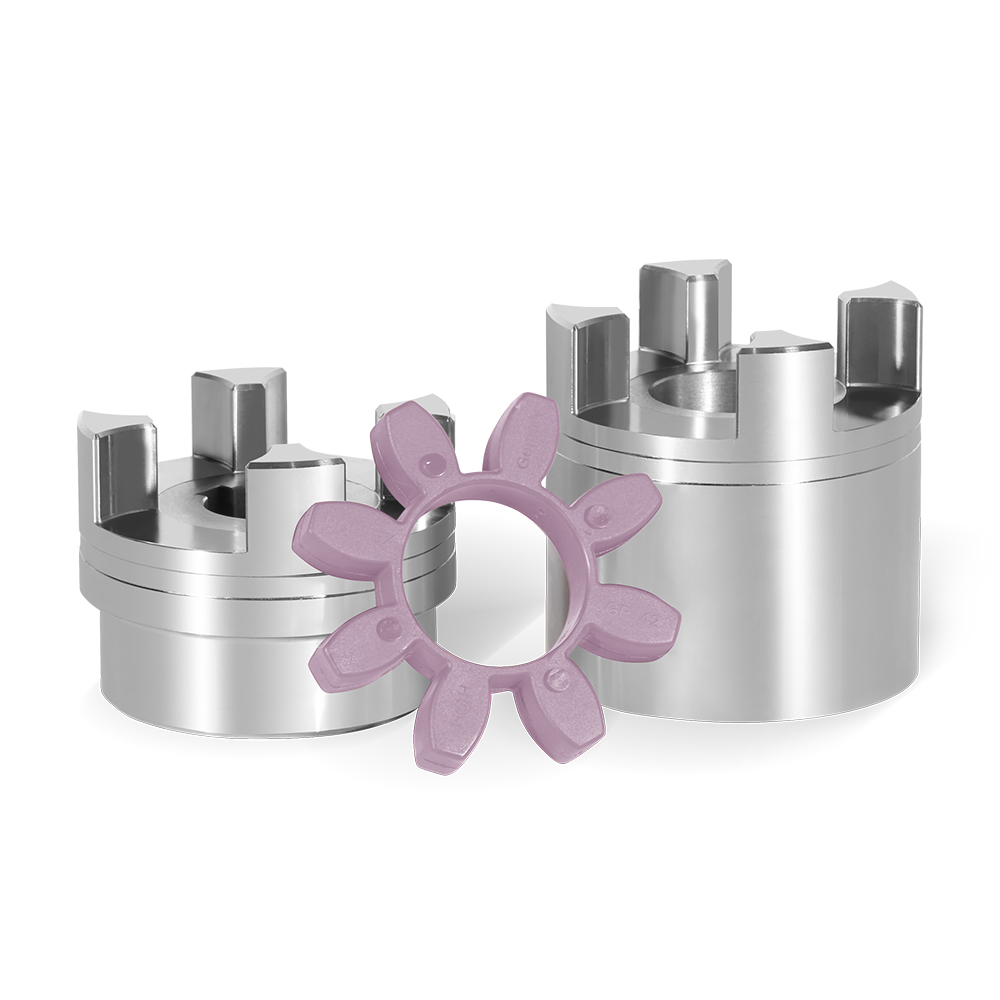

This product is a torsionally flexible coupling with fail-safe features. Its structure is compact, lightweight, and has low rotational inertia,but can transmit high torque. The coupling's high operating quality and lifespan are due to all surfaces being precisely machined. Thespider-shaped elastomer made from special polyurethane effectively dampens vibrations generated during operation, absorbs the shocks from uneven operation at the power end and equipment end, and avoids stress concentration due to its drum-shaped tooth design, thereby effectively correcting axial, radial, and angular installation deviations.

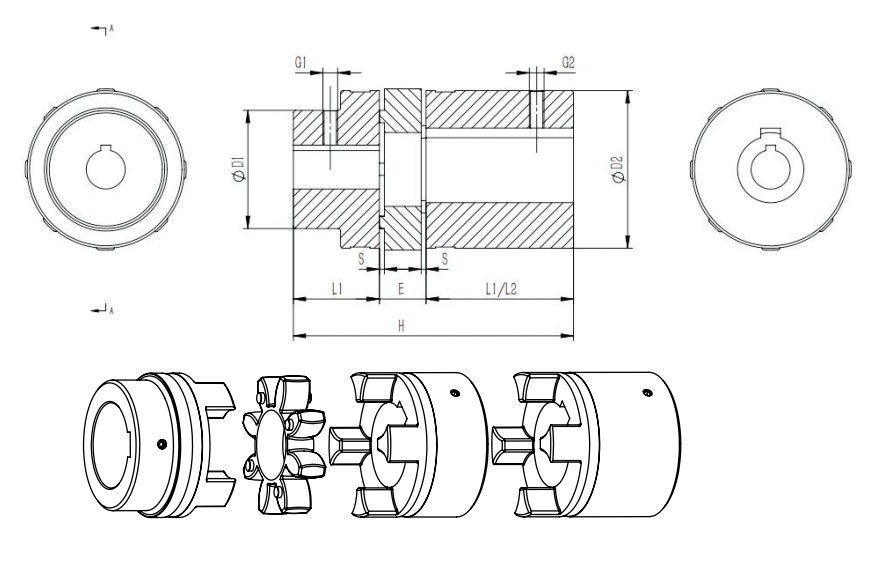

Product size drawing
Type parameter list
| Model |
Rated Torque (Nm) |
L1 (mm) |
L2 (mm) |
D1 (mm) |
D2 (mm) |
G1 |
G2 |
E (mm) |
S (mm) |
| GR19 |
17 |
25 |
37 |
39 |
39 |
M6 |
M6 |
14 |
1 |
| GR24 |
60 |
30 |
50 |
40 |
54 |
M6 |
M6 |
17 |
1 |
| GR28 |
160 |
35 |
60 |
48 |
64 |
M6 |
M6 |
19 |
2 |
| GR38 |
325 |
40 |
70 |
66 |
79 |
M8 |
M8 |
22 |
2 |
| GR42 |
450 |
45 |
75 |
75 |
94 |
M8 |
M8 |
24 |
2 |
| GR48 |
525 |
56 |
80 |
85 |
104 |
M8 |
M10 |
26 |
3 |
| GR55 |
685 |
55 |
90 |
90 |
119 |
M8 |
M10 |
28 |
3 |
| GR65 |
940 |
75 |
100 |
115 |
135 |
M10 |
M10 |
32 |
3 |
| GR75 |
1920 |
70 |
110 |
135 |
158 |
M10 |
M10 |
37 |
3 |
| GR90 |
3600 |
70 |
140 |
160 |
198 |
M12 |
M12 |
42 |
4 |
| GR100 |
4950 |
105 |
110 |
180 |
225 |
M12 |
M16 |
42 |
4 |
| GR110 |
7200 |
120 |
120 |
200 |
255 |
M12 |
M16 |
42 |
4 |
Order description
|
Product Name
|
Model NO
|
Shaft diameter of machine
|
Oil pump shaft diameter
|
|
Star-shaped elastic coupling (GR)
|
GR38 -38x70-25x40
|
38 |
25 |
Key Features
Zero backlash, high transmission accuracy: Pre-stressed assembly ensures zero rotational backlash, making it ideal for servo systems, precision drives, and applications involving frequent forward and reverse operation. The elastomer is constrained by the claw blocks, preventing deformation or fragmentation under impact.Superior shock absorption, vibration damping, and noise reduction: The central polyurethane (PU) star-shaped pad offers high elasticity and resilience, effectively absorbing vibrations and impacts to protect bearings, pumps, and motors.
Application Scenarios
- Hydraulic Stations / Bell-Shaped Covers: Inside PK/PL/DX Bell-Shaped Covers.
- Injection Molding / Rubber & Plastic Machinery: Injection Molding Machines, Extruders, Vulcanizers, Rubber Molding Machines.
- Machine Tools / Precision Equipment: CNC lathes, milling machines, grinding machines, machining centers
- General Machinery / Pumps & Valves / Fans: Water pumps, oil pumps, fans, compressors, generator sets.
- Mining / Metallurgy / Light Industry: Mining drills, conveyor lines, metallurgical auxiliary equipment, packaging machinery.
Packaging & Delivery
- International Grade Packaging: Secured in reinforced export-standard crates to ensure the unit arrives in perfect condition.
- Global Shipping: Fully compatible with export requirements for European (e.g., Poland), North American, and Southeast Asian markets.
- Fast Lead Times: Direct from our production centers in Foshan, Wuxi, or Chengdu.
Certification & Quality Assurance
- Certified Safety: Fully CE Certified for compliance with European safety and quality standards.
- System Integrity: Manufactured under ISO9001 (Quality), ISO14001 (Environmental), and ISO10012 (Measurement) management systems.
- Long Lifespan: Engineered for a product lifespan of up to 10 years+.
- Guaranteed Quality: Every unit undergoes rigorous testing (Test Pressure) to ensure leak-free performance.
The MEISON Advantage
-
Global Trusted Partner: Over 1,000,000 units sold to more than 6,000 customers worldwide.
-
R&D Innovation: Backed by over 60 patented achievements and collaborative research with prestigious universities.
-
Cinematic Industrial Design: Our products reflect technical authority and precision, designed to build immediate customer trust through an international corporate image.
