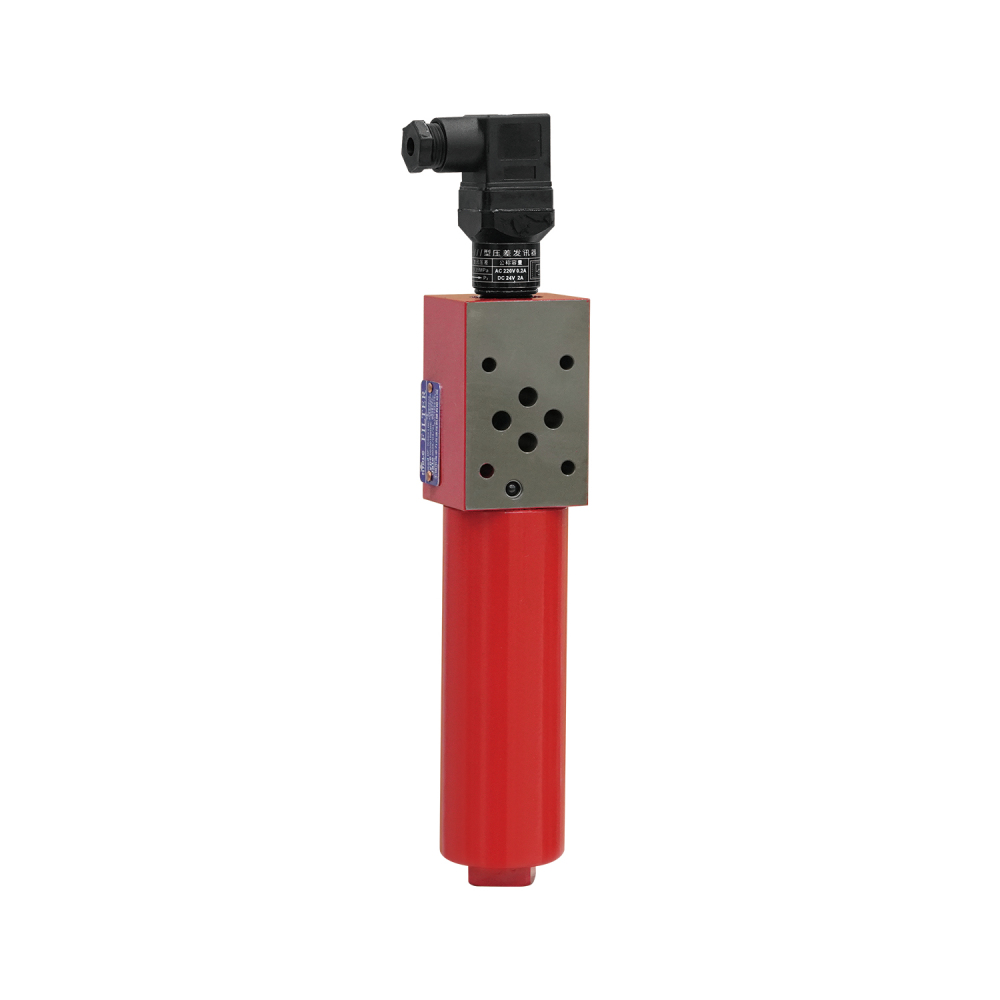

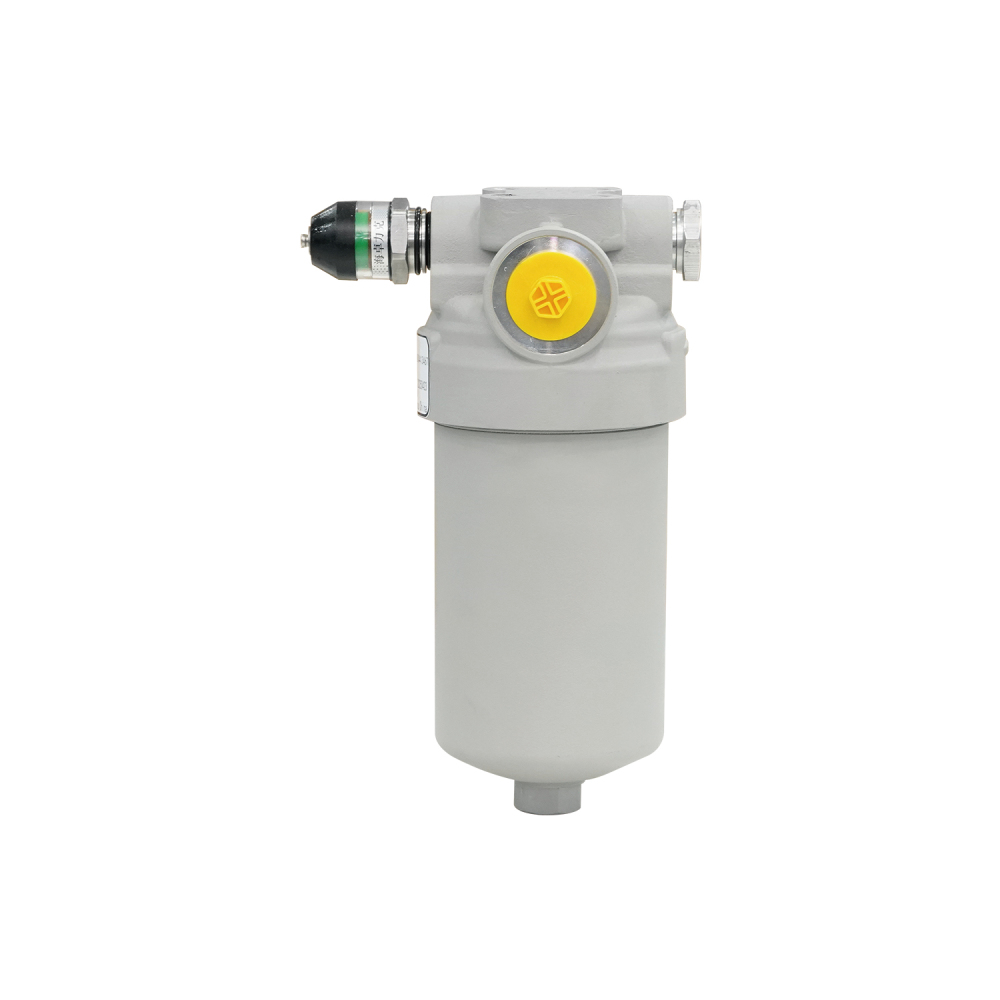

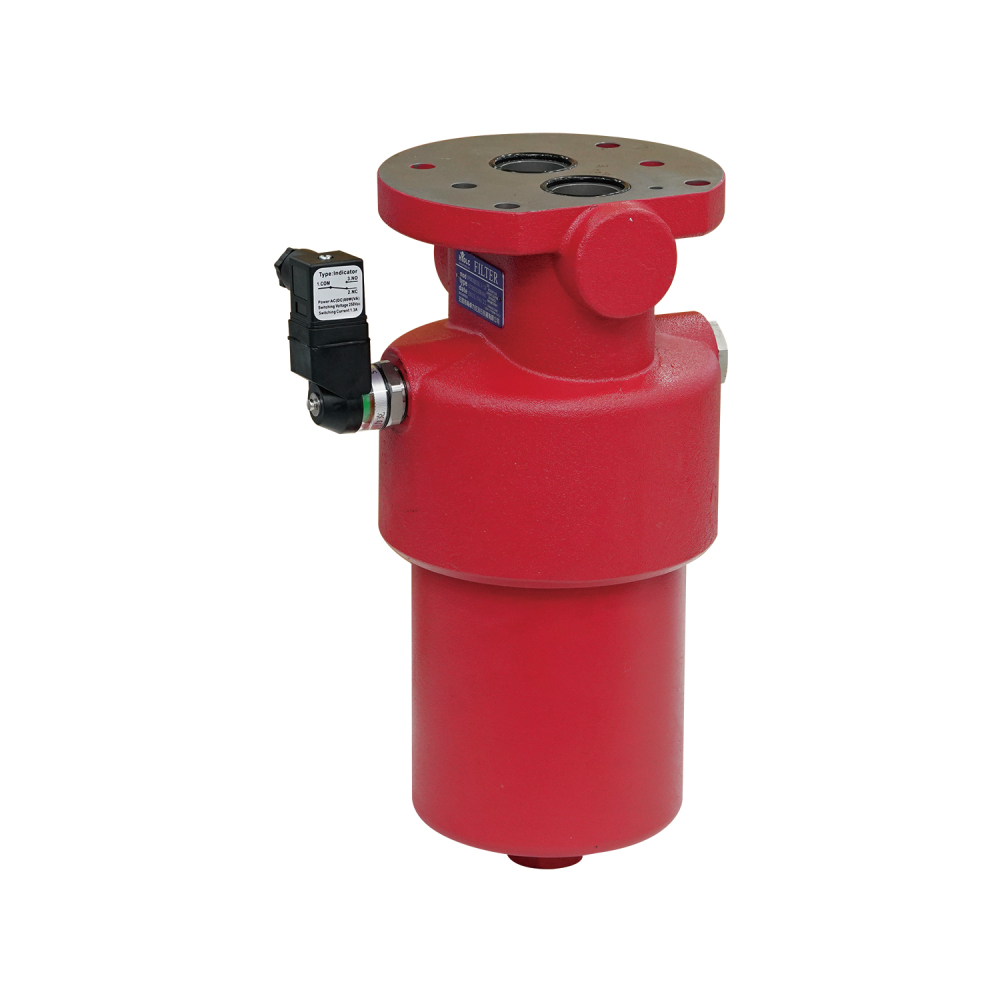

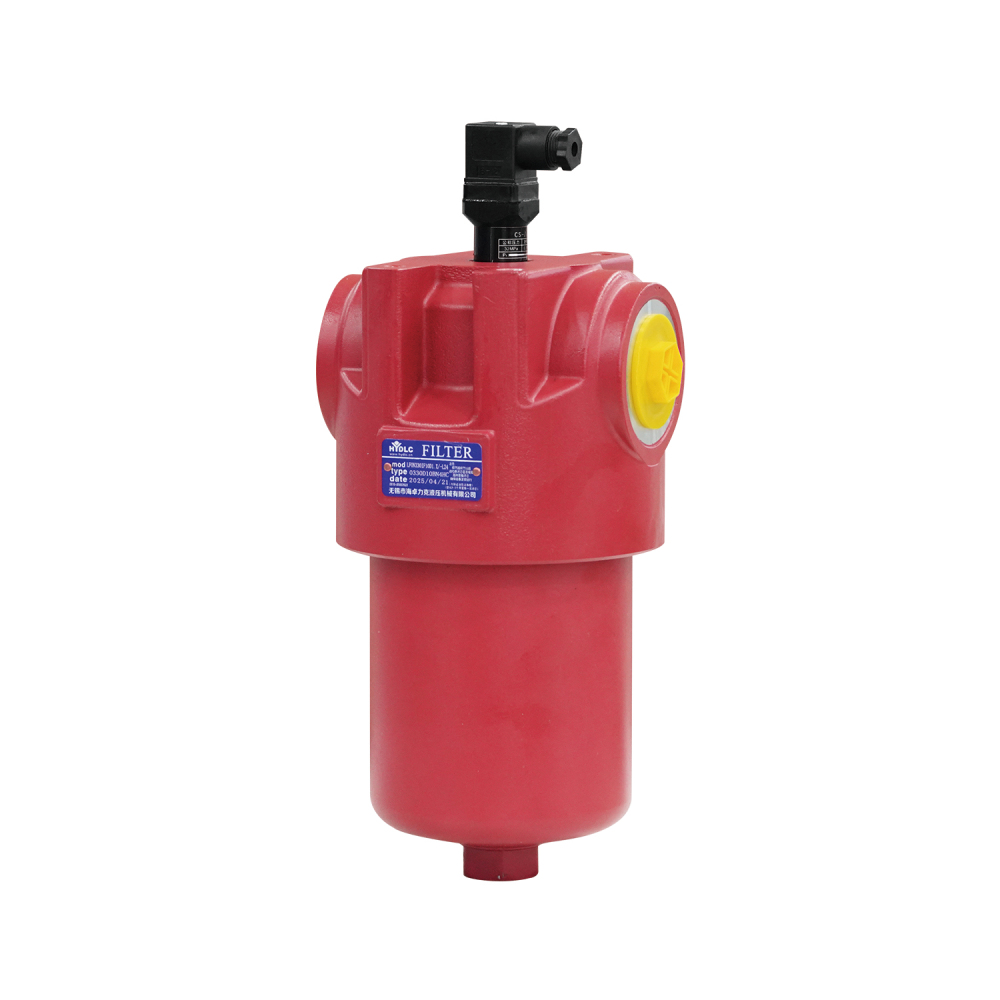

High-pressure filter for use at the outlet of the main pump and in the high-pressure oil lines of mining machinery

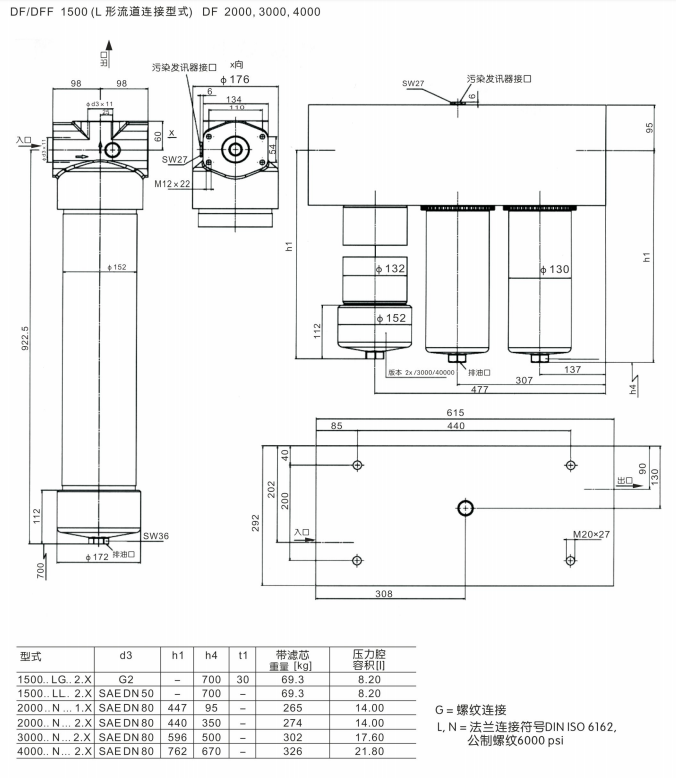

Product size drawing

                                                                                                                             G = Threaded connection
                                                                                                                             L, N = Flange connection symbols per DIN ISO 6162,
                                                                                                                                        Metric thread, 6000 psi

Product Description
High-pressure filters are protective devices installed in the pressure lines of hydraulic systems. Designed specifically for high-pressure applications, they effectively trap contaminants in the hydraulic fluid, protecting pumps, valves, and servo components from wear and seizure.
Featuring a high-strength housing and precision filter elements, these filters are capable of withstanding high pressures, have a high dirt-holding capacity, and allow for online monitoring of pressure differentials. They are widely used in medium- and high-pressure hydraulic systems in construction machinery, metallurgical equipment, and other industries.
Key Features

• The housing is constructed from high-strength materials and is rated for pressures up to 32 MPa, making it suitable for medium- and high-pressure hydraulic systems.
• Equipped with high-precision filter elements, with optional filtration ratings ranging from 1 to 30 μm, it effectively traps contaminants to protect precision components such as pumps and valves.
• Optional differential pressure transmitters or bypass valves provide clogging alerts and pressure relief protection, ensuring continuous system operation.
• It supports various installation and connection methods (in-line, panel-mounted, or stacked installation; threaded or flanged connections), making it suitable for different system layouts.

Application

• Main pump outlets and high-pressure oil lines in construction and mining machinery.
• High-pressure servo and proportional control systems in metallurgical equipment and injection molding machines.
• Medium- and high-pressure hydraulic circuits in critical equipment for wind power, marine, and aerospace applications.
• Pressure lines in high-pressure hydraulic stations for industrial automation production lines and machine tools.

Packaging & Delivery

• Secure Industrial Packaging: Each filter unit is sealed in protective, moisture-resistant packaging to ensure filter media integrity upon arrival.
• Global Fulfillment: Factory-direct dispatch with optimized logistics chains, ensuring timely delivery to your industrial sites worldwide.
• Installation Ready: Precision-manufactured to match standard hydraulic connection patterns for a fast and reliable installation.

Certification & Quality Assurance

• Quality Excellence: Manufactured under strict ISO9001 quality management standards, ensuring consistent filtration efficiency.
• Operational Longevity: Designed for high-cycle industrial service, protecting equipment investments for 10+ years.
• Integrity Testing: Every filter housing undergoes pressure-testing to ensure zero-leakage performance under normal operating pressures.

The MEISON Advantage

• Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — 20+ years of hydraulic manufacturing leadership.
• Global Trusted Partner: Over 1,000,000 units sold to 6,000+ satisfied customers worldwide.
• Innovation & R&D: 60+ technical patents support our commitment to high-performance, precision-engineered hydraulic components.
• Cinematic Industrial Image: Our design focus on technical authority and professional aesthetics helps you build immediate, long-lasting trust with B2B buyers.

Product FAQ

• How often should the filter element be replaced?
•  A: Replacement frequency depends on your system's duty cycle and fluid cleanliness levels. We recommend replacing elements based on the differential pressure indicator or during routine maintenance intervals (e.g., every 500-1000 operational hours).

• Can I use different filtration ratings?
• A: Yes, we offer various filter element ratings (e.g., 5μm, 10μm, 20μm) to suit the specific cleanliness requirements of your valves and pumps.

• Are the filter elements compatible with synthetic hydraulic fluids?
• A: The standard filter media is compatible with most mineral oils. For specialized fire-resistant fluids, please consult our engineering team for custom element material options.
